Precautions
RQT9834
13

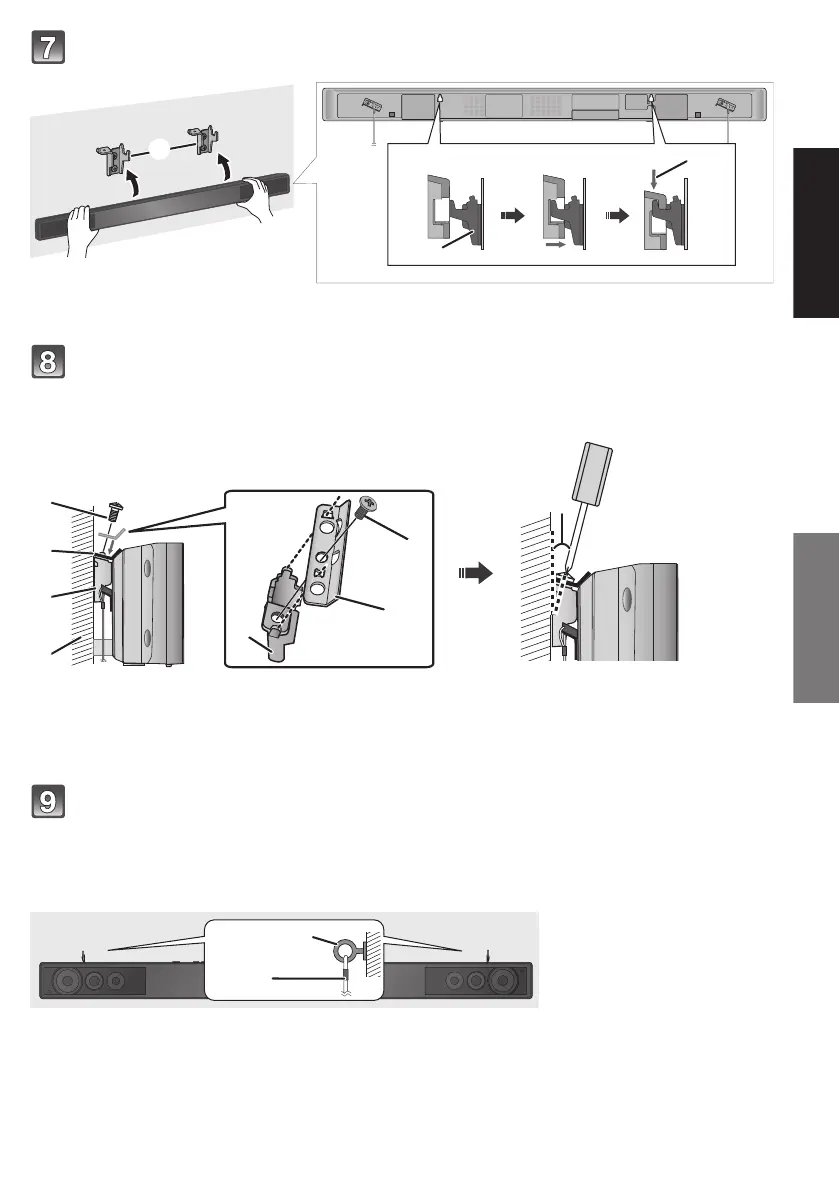

Attach the main unit to the wall mount brackets.
Screw the safety holder onto the wall mount brackets.
≥ Screw tightening torque: 80 N0cm to 120 N0cm.
≥ The safety holders are designed to prevent the main unit from falling off the wall mount bracket.
Secure the cord to the wall.
≥ Make sure that the slack of the cord is minimal.
≥ Check the strength of the installation location.
The position should be capable of supporting over 33 kg. If the strength at any of these positions is lacking, provide sufficient
reinforcement.
P Wall mount bracket (supplied)
Q Gently move the main unit down onto the wall mount bracket.
R Screw without washer (supplied)
≥ Tighten securely.
S Safety holder (supplied)
T Wall mount bracket (supplied)
U Wall
V About 15
o
≥ Tilt about 15
o
from the wall and tighten the screw.
W Screw eye
X Cord
SC-HTB527EGEB_RQT9834-B.book 13 ページ ２０１２年１２月１０日 月曜日 午前１１時２９分
