11.6.8. Disassembly of AC Inlet P.C.B.
• Refer to “Disassembly of Rear Panel Block”.
• Refer to “Disassembly of Bottom Panel”.

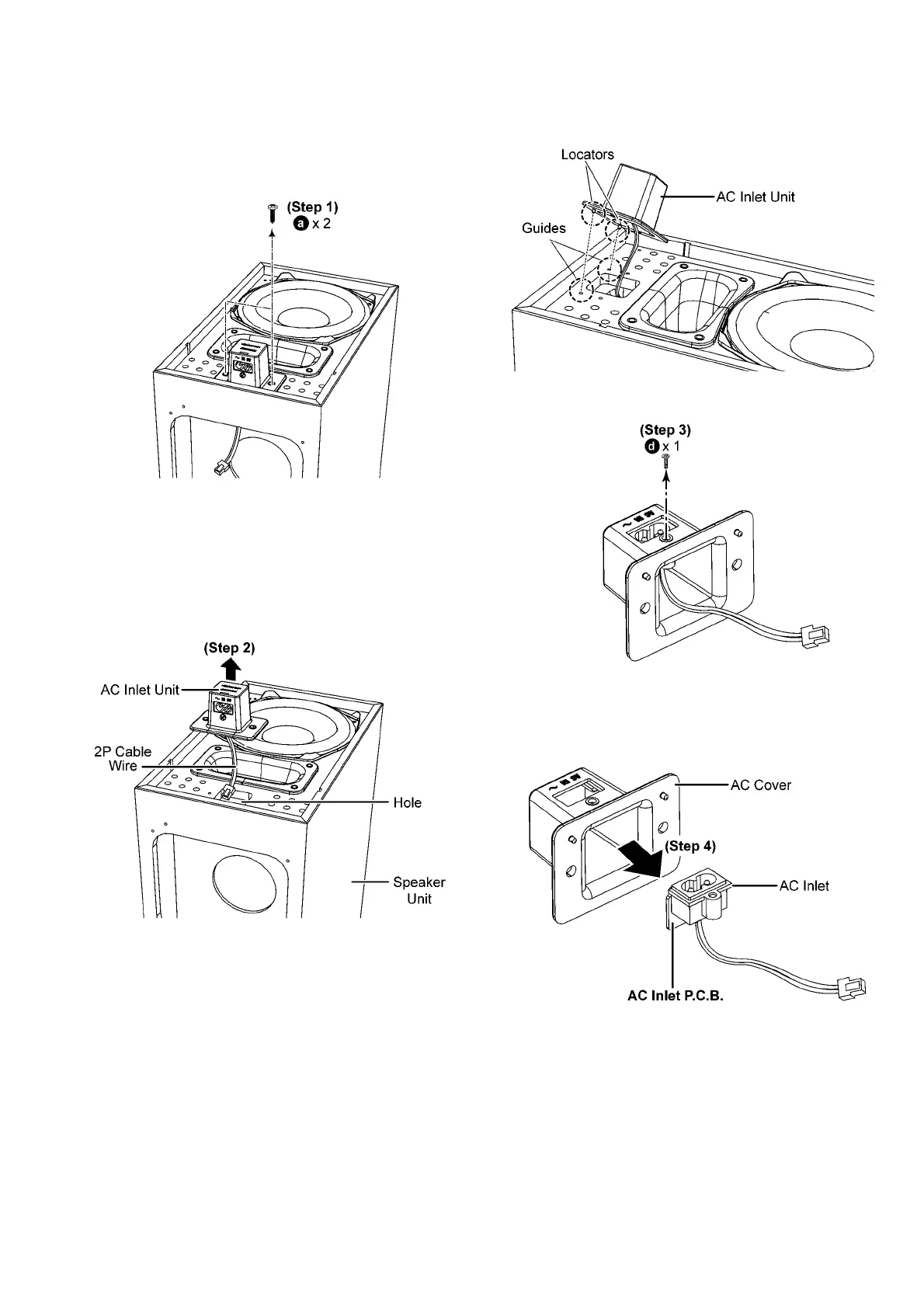

Step 1 : Remove 2 screws.
Step 2 : Remove the AC Inlet Unit through the hole of the
Speaker Unit as shown.
Caution : During assembling, ensure that the 2P Cable
Wire is properly inserted through the hole of Speaker Box
as diagram shown.
Caution : During assembling, ensure the locators of the AC
Inlet Unit are properly inserted into the guides as diagram
shown.
Step 3 : Remove 1 screw.
Step 4 : Remove the AC Inlet P.C.B. from the AC Cover as
arrow shown.
