76

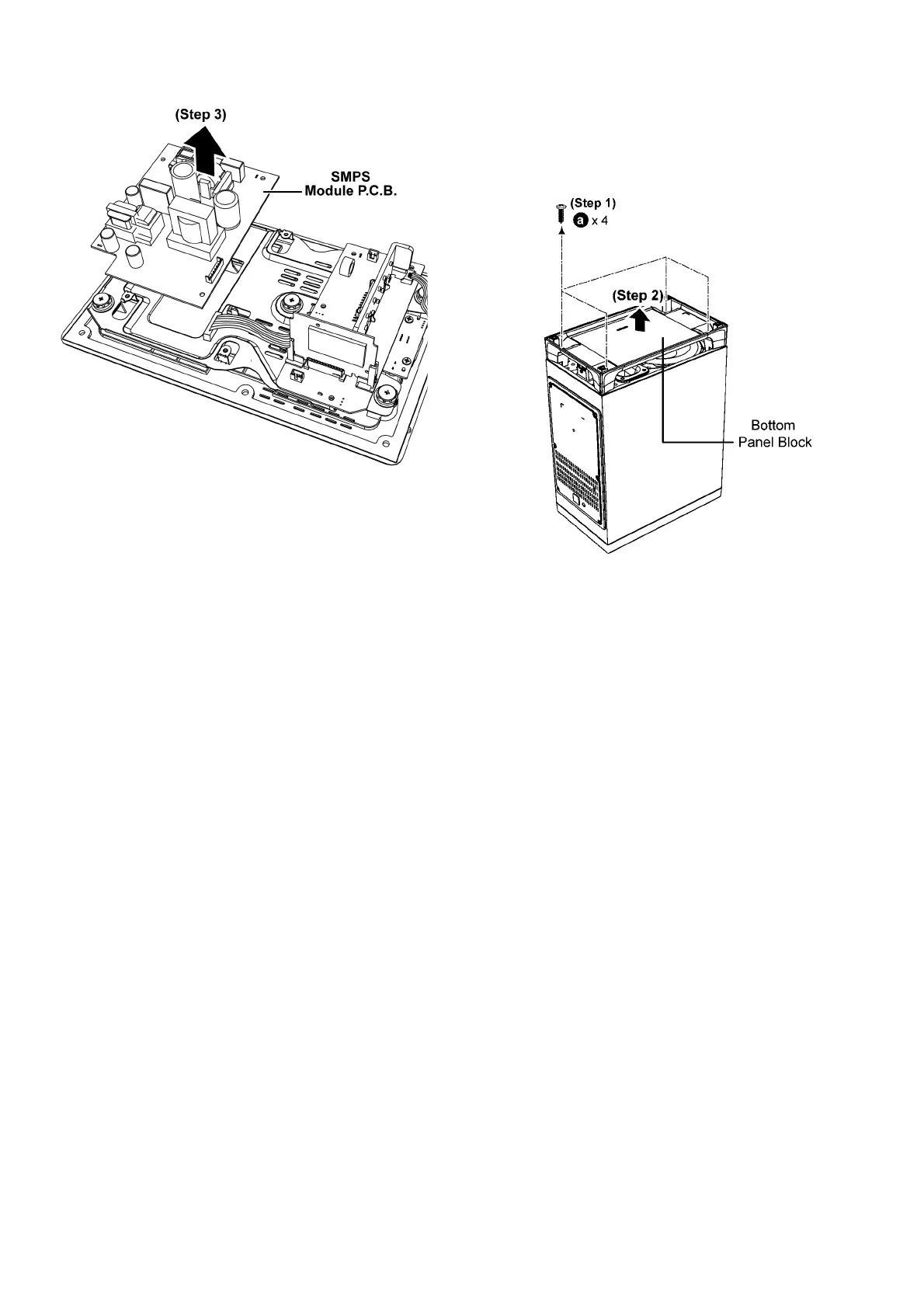

Step 3 : Remove the SMPS Module P.C.B. as arrow shown.
11.6.7. Disassembly of Bottom Panel
Block
Step 1 : Remove 4 screws.
Step 2 : Remove the Bottom Panel Block as shown.
