RQTV0304
4

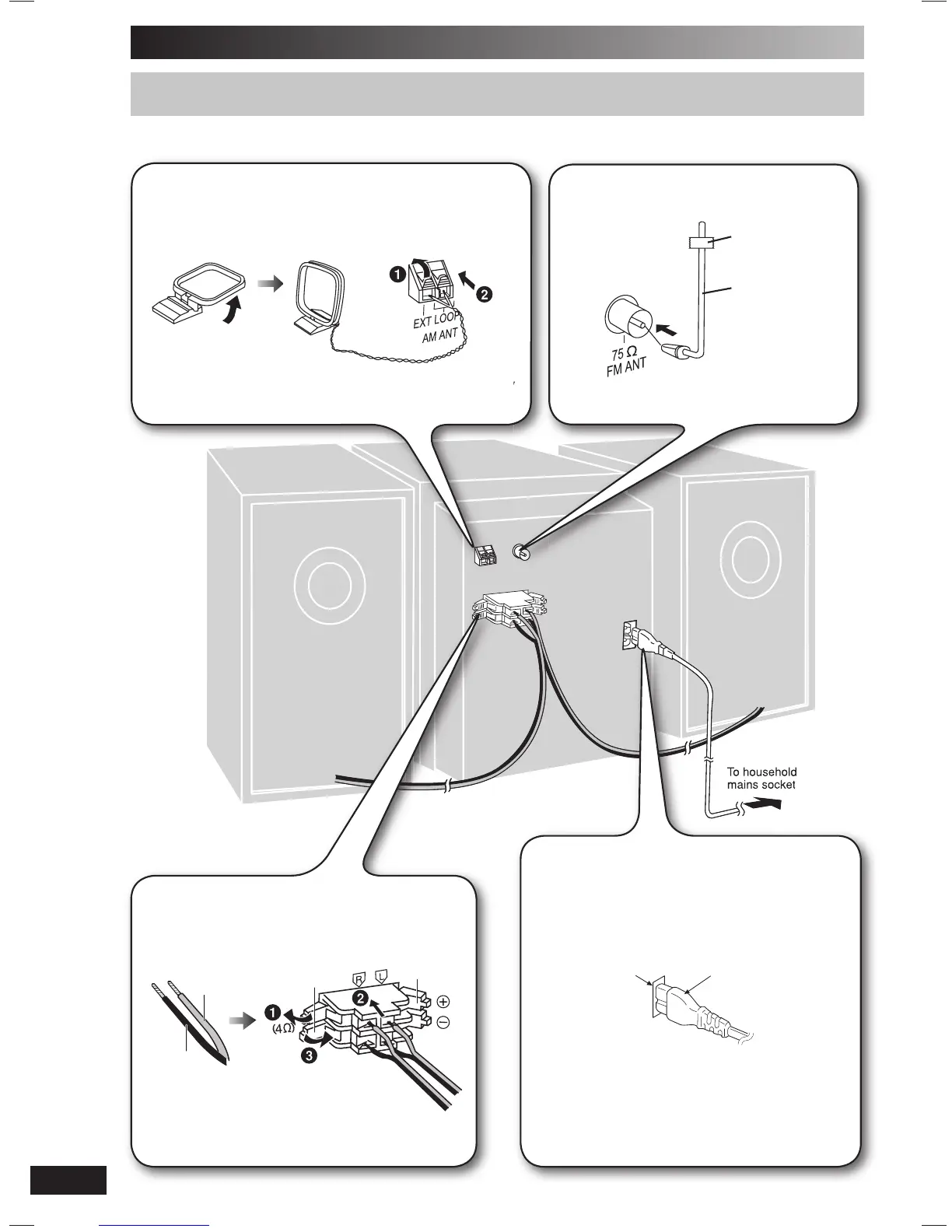

Simple setup
To household
mains socket
Connect the AC mains lead.
The included AC mains lead is for use with this unit only. Do
not use it with other equipment.
Insertion of connector
Connector
Even when the connector is perfectly inserted, depending
on the type of inlet used, the front part of the connector
may jut out as shown in the drawing. However there is no
problem using the unit.
Appliance inlet
Connect the speaker cables.
Red (ª)
Black (·)
Red (ª)
Black (·)
Incorrect connection can damage the unit.
Connect the AM loop antenna.
Stand the antenna up on its base. Keep the loose antenna cord away
from other wires and cords.
AM loop antenna
Connect the FM indoor antenna.
Tape the antenna to a wall or column, in a position
with least amount of interference.
Adhesive
tape
FM indoor
antenna
Making the connections
Making the connections
Connect the AC mains lead only after all other connections have been made.
