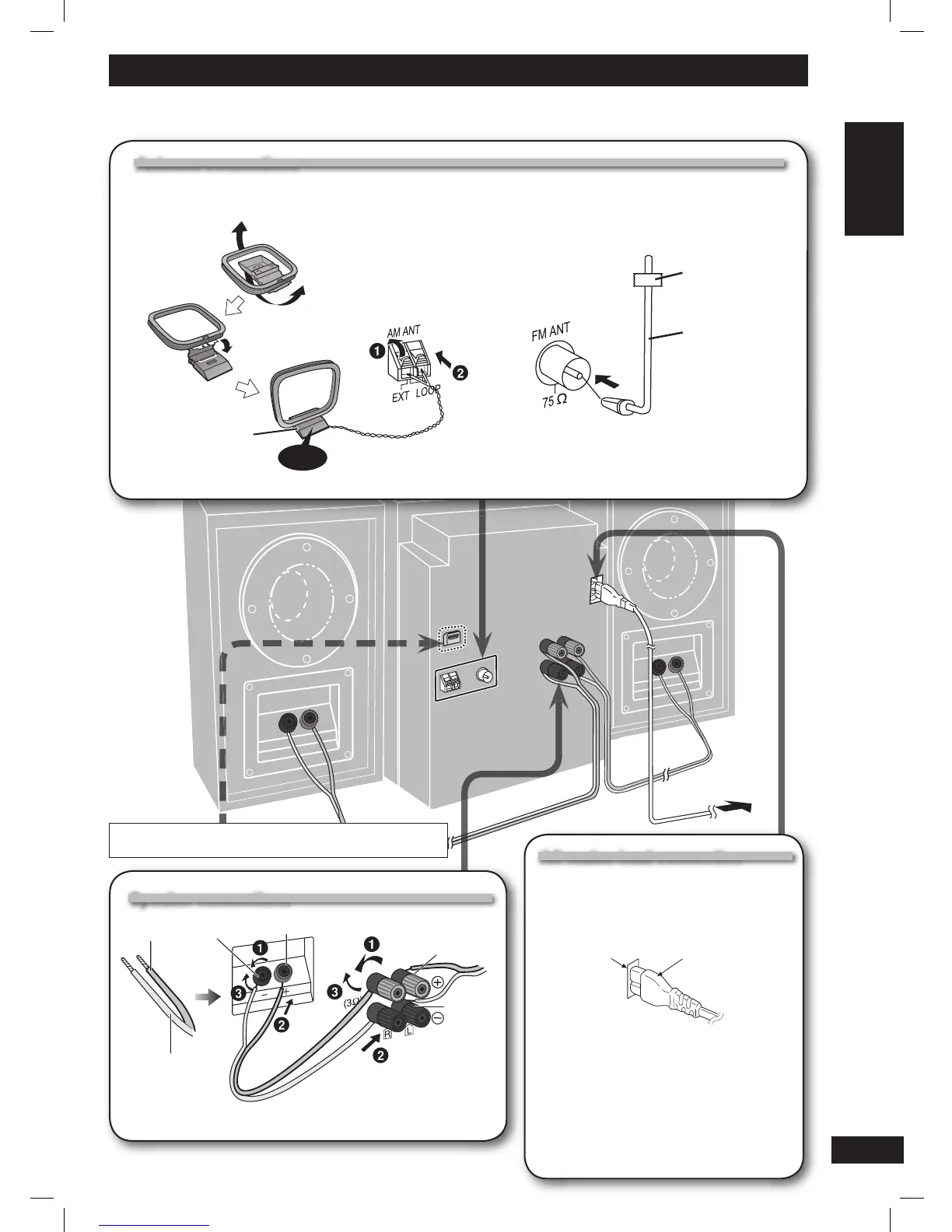

Making the connections
Connect the AC mains lead only after all the other connections have been made.
Please refer to “Connecting the Universal Dock for iPod” on
page 15.
Incorrect connection can damage the unit.
Copper (ª)
Silver (·)
Red (ª)
Black (·)
Red (ª)
Black (·)
Speaker connections
Speaker connections
Insertion of connector
Even when the connector is perfectly inserted,
depending on the type of inlet used, the front part of
the connector may jut out as shown in the drawing.
However there is no problem using the unit.
Connector
For your reference
To save power when the unit is not to be used for
a long time, unplug it from the household mains
socket. You will need to reset some memory items
after plugging in the unit.
Note:
• The included AC mains lead is for use with this
unit only. Do not use it with other equipment.
• Do not use an AC mains lead from other
equipment.
Appliance inlet
AC mains lead connection
AC mains lead connection
■ AM loop antenna
Stand the antenna
up on its base.
A
A
ntenna connections
ntenna connections
Adhesive
tape
FM indoor
antenna
■ FM indoor antenna
Click!
Place the antenna where reception is best.
