21
5.3. Main body test mode

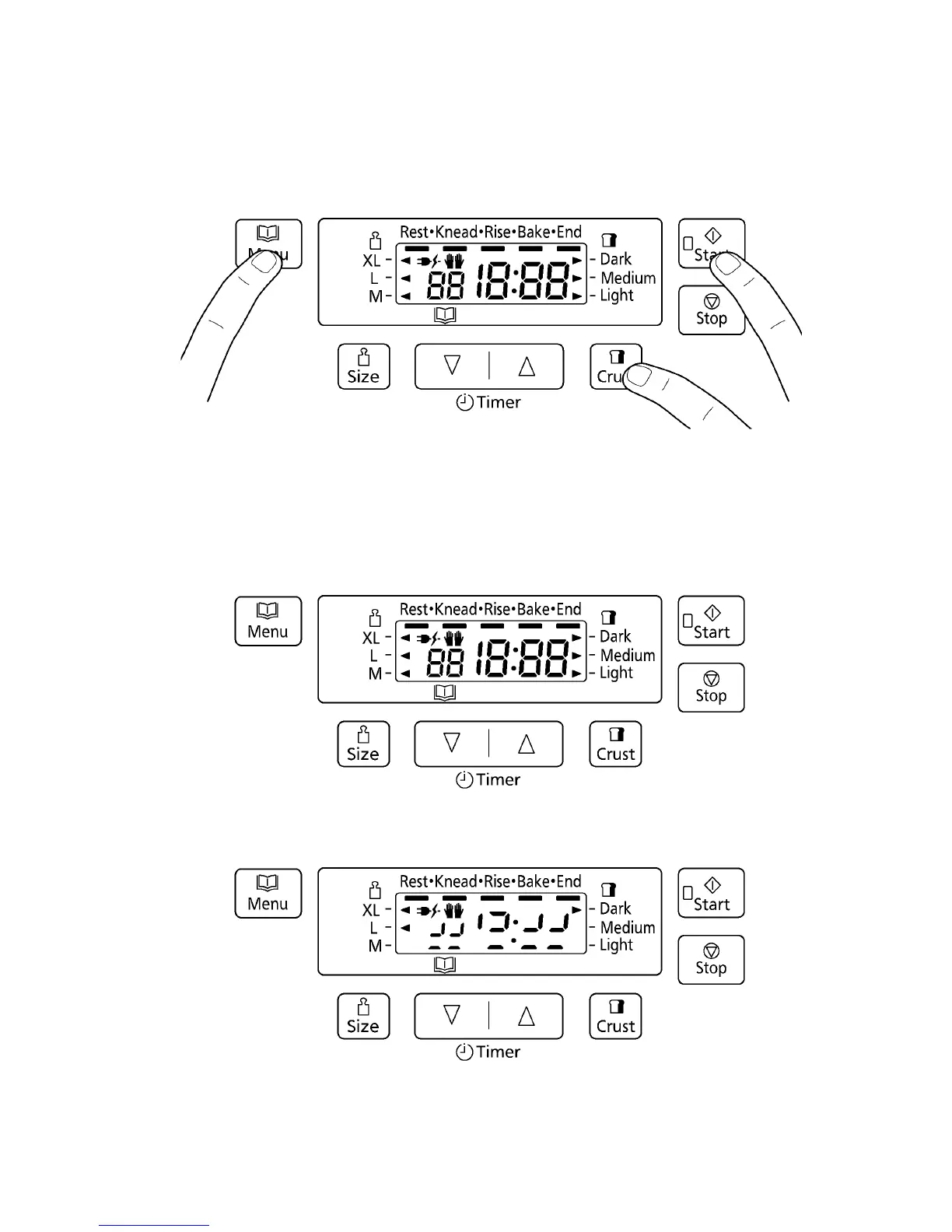

5.3.1. Setting the main body initial test mode
Operation procedure
1. Insert the power cord plug into an electrical outlet.
2. Press the "Menu" "Crust" and "Start" keys at the same time.
Phenomena
• LCD indication: All indications displayed
• Behaviour of device: Load other than LCD is off.
• Restoration: Pressing "Stop" key, the device returns to the
normal initial mode.
* When all indications do not appear on the LCD, check the
device again following the above operations.
Judgement/Remedy
• When all the indications do not appear on the LCD, replace
P.C.Boards A and/or B.
Check the device condition in this test mode after replacing
the P.C.Board (s).
All Light up
Chidori Light up
To Next Page
