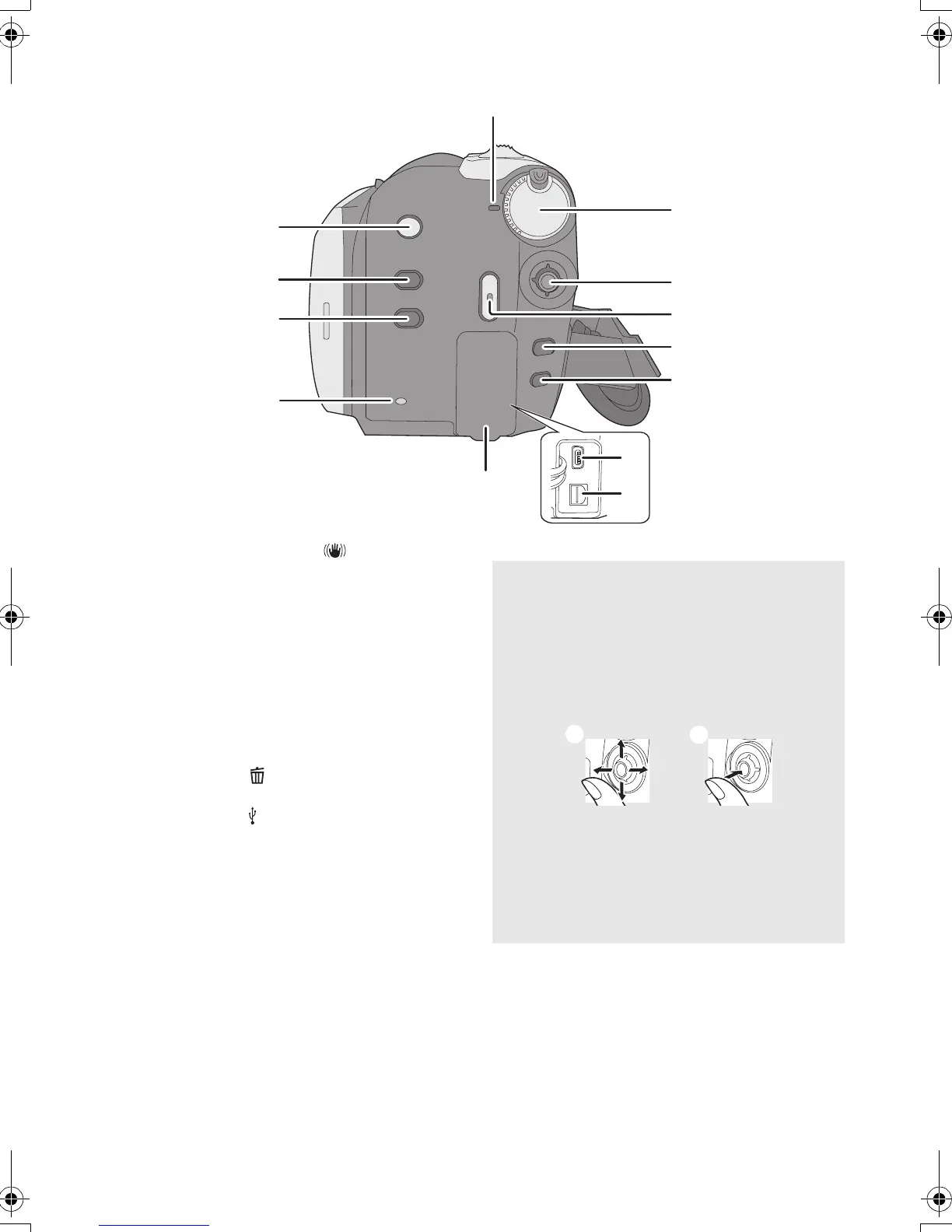

15 Image stabilizer button [ , O.I.S.] (l 38)
16 Power LCD plus button
[POWER LCD PLUS] (l 28)
17 DVD COPY button [DVD COPY] (l 89)
18 HDD access lamp [ACCESS HDD] (l 21,
86)
19 Status indicator (l 23)
20 Mode dial (l 23)
21 Joystick
22 Recording start/stop button (l 31, 34)
23 Menu button [MENU] (l 24)
24 Delete button [ ] (l 55)
25 Terminal cover
26 USB terminal [ ] (l 70, 77, 86)
27 Audio-video output terminal [A/V]
(l 68, 76)
19
15
16
17
18
2
2
2
2
21
26
25
27
Joystick
Use the joystick to select the recording
functions and playback operations, and to
operate the menu screen.
Move the joystick up, down, left, or right to
select a setting or scene, and then press
the joystick to set it.
1 Select by moving up, down, left, or right.
2 Set by pressing the centre.
≥ Menu screen operations (l 24)
≥ To select the recording functions (l 39)
≥ To adjust manually (l 44)
≥ Playback operations (l 50, 53)
1
2
