TC-L32E5
28

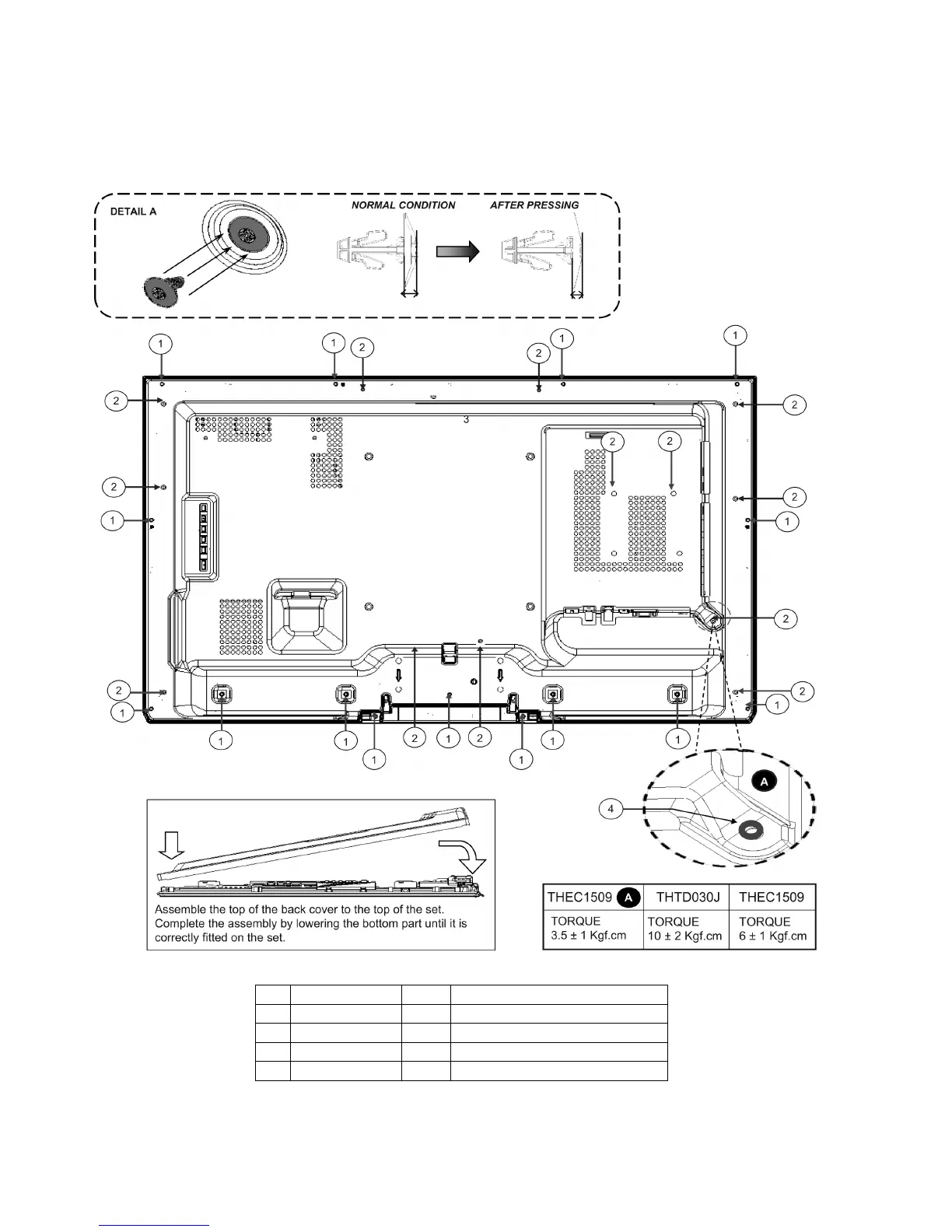

7.16. Screwing up the Back Cover
1. Fit the back cover to the television.
2. Screw in the positions indicated using the corresponding torque.
3. Insert the M6 CAP by hand. Press until assembled. Use detail A as an assembly reference.
4. First fit the washer and then screw it in the position indicated by the dotted circle, respecting the torque mentioned.
No. Part Num. Quant. Description
1 15 SCR
EW (M3 × 4)
2 13 SCREW
3 T
KKL5521 4
M6 CAP
4 TMK4GX113 1 WASHER
To Next Page
