1. Access the IIC mode and set the Aging Pattern to 1(white pattern) (Vset
adjustment pattern).
2. Set the picture adjustment items as follows.
· Picture menu : Standard
· Color temperature : Normal
· Picture : 25
· Aspect : Full
Test point Volume Level
TPSC1 (SC)
VR6601
(SC)
190V ±
7V
T
2
TPSC1 (SC)
VR6602
(SC)
165 ±
10µ Sec
50

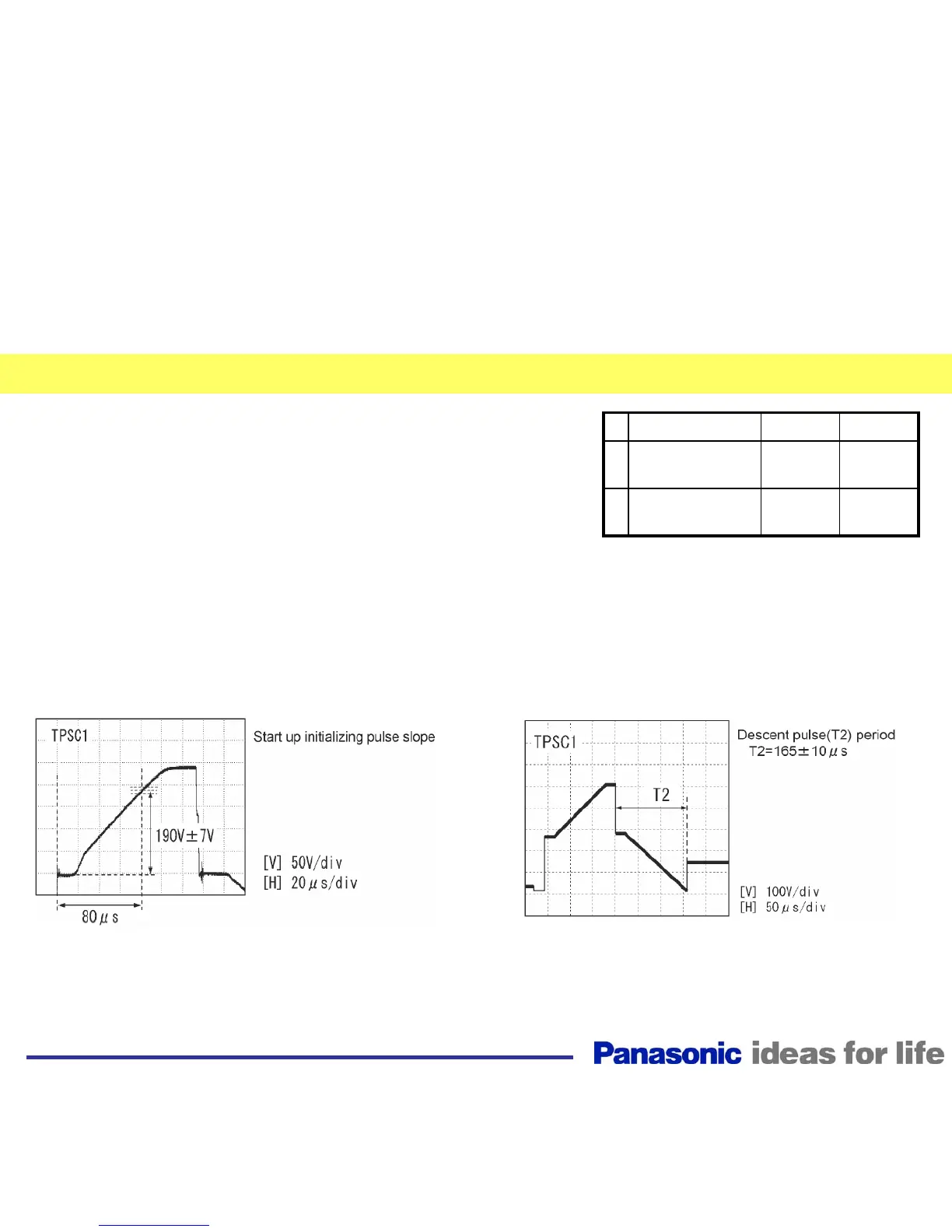

3. Connect the Oscilloscope to TPSC1 and adjust VR6601 for 190V ± 7V.
4. Connect the Oscilloscope to TPSC1 (T2) and adjust VR6602 for 165 ± 10µ Sec.
Initialization Pulse Adjustment
