Panasonic TH-37PH9UK - How to Set the Display Location Number for each Plasma Display

36
SET UP for MULTI DISPLAY
How to set the Display location number for each Plasma Display
Display Number locations for each arrangement.
(Examples)
Press twice to exit from SET UP.
4
7
MULTI DISPLAY SETUP
OFF
OFF
A1
LOCATION
MULTI DISPLAY SETUP
HORIZONTAL SCALE
VERTICAL SCALE
SEAM HIDES VIDEO
× 2
× 2
MULTI DISPLAY SETUP
OFF
OFF
A1
LOCATION
MULTI DISPLAY SETUP
HORIZONTAL SCALE
VERTICAL SCALE
SEAM HIDES VIDEO
× 2
× 2
( 2 × 1) ( 2 × 3 )
( 4 × 4 )
8

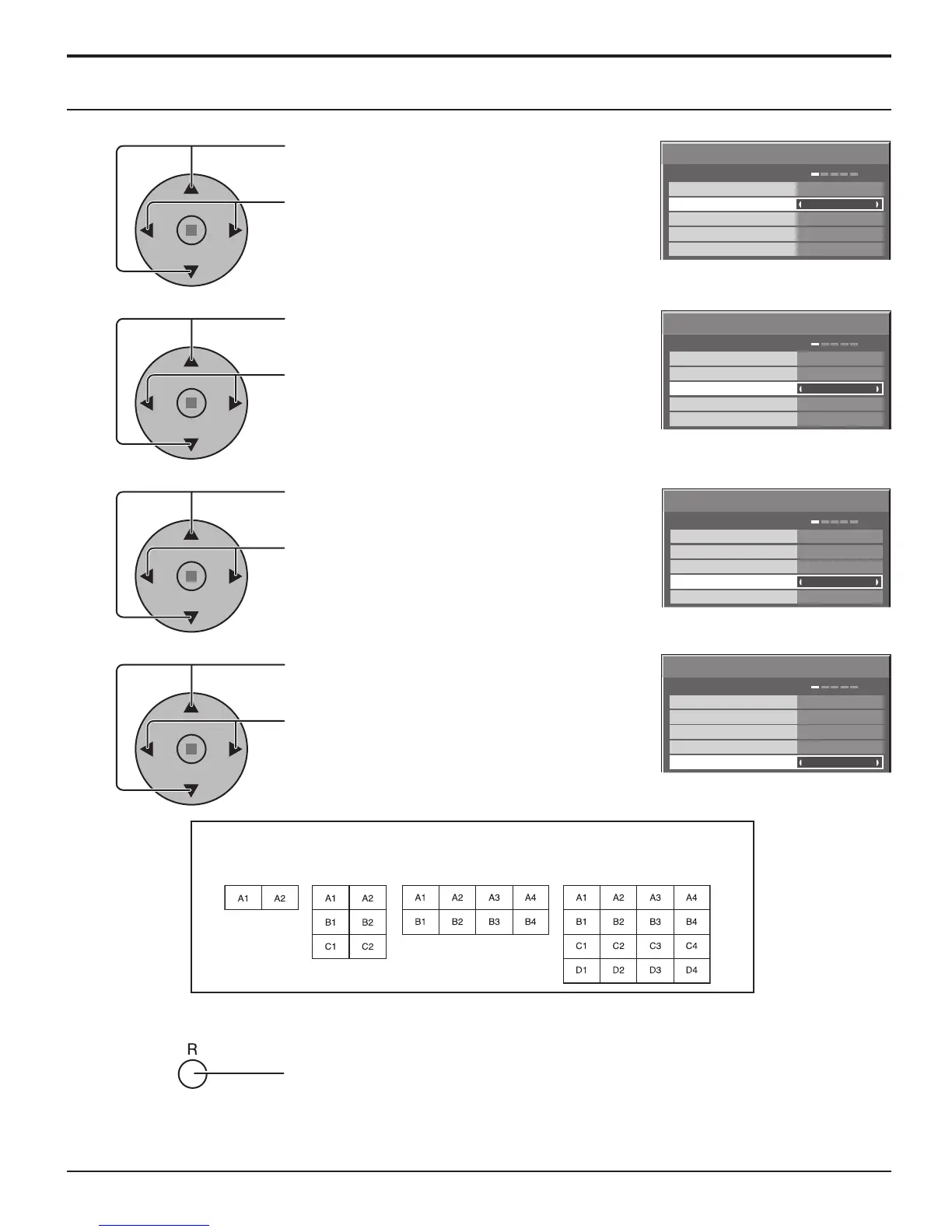

Press to select HORIZONTAL SCALE.
Press to select “× 1”, “× 2”, “× 3”, “× 4”.
Press to select LOCATION.
Press to select the required arrangement number.
(A1-D4 : Refer to the following)
× 2
MULTI DISPLAY SETUP
HORIZONTAL SCALE
OFF
OFF
A1
LOCATION
VERTICAL SCALE
SEAM HIDES VIDEO
× 2
MULTI DISPLAY SETUP
5
Press to select VERTICAL SCALE.
Press to select “× 1”, “× 2”, “× 3”, “× 4”.
6
Press to select SEAM HIDES VIDEO.
Press to select “OFF”, “ON”.
MULTI DISPLAY SETUP
OFF
OFF
A1
LOCATION
MULTI DISPLAY SETUP
HORIZONTAL SCALE
VERTICAL SCALE
SEAM HIDES VIDEO
× 2
× 2
( 4 × 2 )
