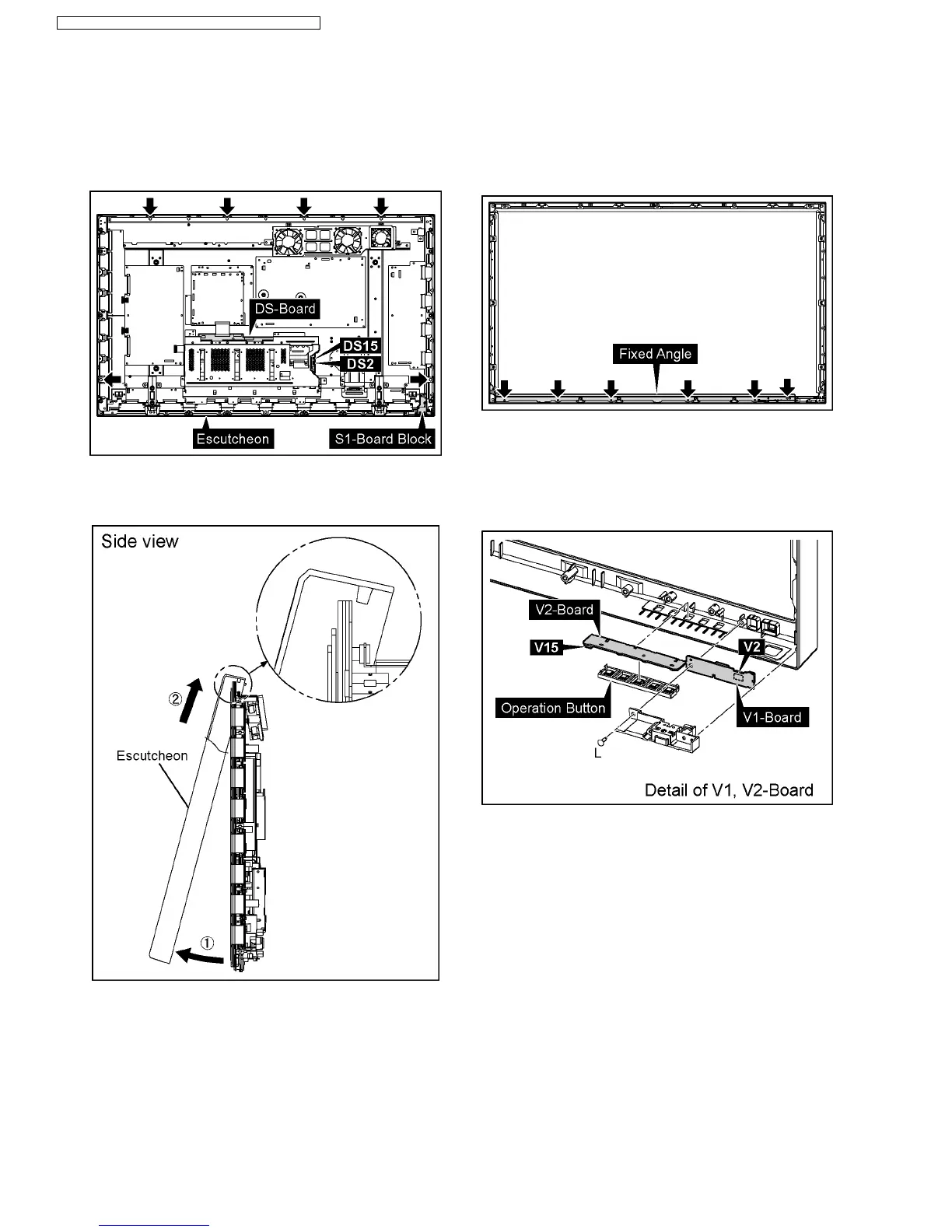

6.16. Removal of Escutcheon
1. Remove the S1-Board Block.
(Refer to Removal of S1-Board)
2. Disconnect the connectors (DS2, DS15).
3. Remove 6 screws of the Escutcheon.
4. Pull the bottom of the Escutcheon in the direction of the
arrow1 and then lift up the Escutcheon to remove in the
direction of the arrow2.
6.17. Removal of V1-Board and V2-
Board
1. Remove the Escutcheon.
(Refer to Removal of Escutcheon)
2. Remove 6 screws and then remove the Fixed Angle.
3. Remove 1 screw (L).
4. Disconnect the connector (V2) and then remove V1-Board.
5. Remove the operation button from V2-Board.
6. Disconnect the connector (V15) and then remove V2-
Board.
