TH-42PH10BK/BS/EK/ES

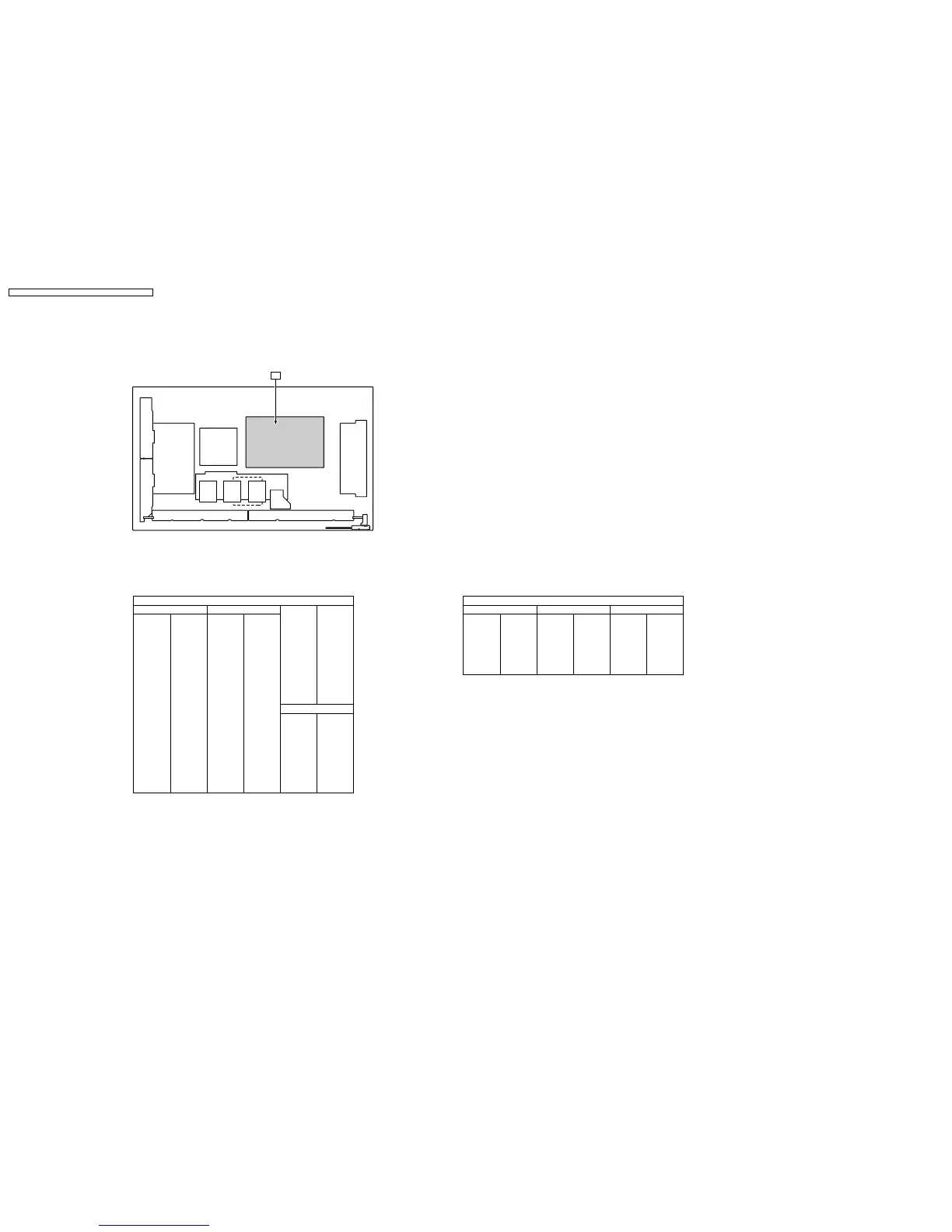

P-BOARD PARTS LOCATION
TH-42PH10BK/BS/EK/ES
P-BOARD PARTS LOCATION
Parts LocationParts Location
P-BOARD (COMPONENT SIDE)
IC402 E-2
IC409 E-2
IC411 F-2
IC504 D-2
IC506 B-4
IC508 B-4
IC511 C-4
IC512 B-3
IC513 B-3
IC
Q404 F-3
Q406 G-3
Q412 E-3
Q413 E-4
Q507 D-4
Q527 A-4
TRANSITOR
R443 F-3
R661 C-2
R665 B-3
VOLUME
P-BOARD (FOIL SIDE)
IC401 E-2
IC402 E-2
IC403 F-2
IC406 D-4
IC408 F-2
IC409 E-2
IC411 D-2
IC412 F-3
IC501 H-2
IC502 H-1
IC504 F-2
IC505 H-5
IC506 H-4
IC507 G-4
IC508 H-4
IC509 G-4
IC510 I-1
IC511 G-4
IC512 H-3
IC513 H-3
IC520 H-3
IC
Q401 D-4
Q402 D-4
Q403 E-2
Q404 D-4
Q406 C-3
Q407 D-3
Q408 E-3
Q409 E-4
Q410 F-2
Q411 E-2
Q412 E-3
Q413 E-4
Q420 D-4
Q422 D-3
Q434 D-2
Q501 H-1
Q502 G-1
Q507 F-4
Q508 G-2
Q509 G-3
Q510 G-4
Q517 E-4
Q520 F-4
Q521 G-1
Q524 H-2
Q525 H-4
Q527 H-4
Q530 H-4
TRANSISTOR
R443 C-3
R661 G-2
R665 H-3
Q535 H-4
Q537 G-1
Q538 H-2
Q540 G-5
Q541 G-2
Q553 G-2
Q554 G-2
Q555 G-3
Q556 G-3
Q563 G-2
Q564 G-3
Q565 H-3
Q566 G-3
Q567 G-2
Q569 G-2
VOLUME
P
TH-42PH10BK / TH-42PH10BS / TH-42PH10EK / TH-42PH10ES
42
