Details of your projector (continued)
①
③
⑩
⑨
⑧
④
⑥⑤
⑦
②
①
Terminals
②
Remote control signal receptor
③
AC IN
Connect the power cord to supply electric power to
the projector. (

page 20)
④
Air intake port
⑤
Front leg adjuster
To adjust the projection angle. (

page 24)
⑥
Rear leg adjuster
To adjust the projection angle. (

page 24)
⑦
Burglar hook port
Attach a commercial burglar prevention cable.
⑧
Air outlet port
Hot air comes out from this opening.
⑨
Speaker
⑩
Lamp unit compartment (

page 48)
①
Connect to a network cable.
(See “Network Operation Manual”.)
②
Connecttoacomputertocontroltheprojector’s
operation.
(

page 19, 53)
③
Connect to a computer or YP
B
P
R
signal cable.
(

page 19)
④
Connect to an S-VIDEO signal cable.
(

page 18)
⑤
Connect to a VIDEO signal cable.
(

page 18)
⑥
Connect audio cables for inputting audio signal.
(

page 19)
⑦
Connect an audio cable for audio signal output
to the connected equipment. If it is connected to
this terminal, no sound comes out of the built-in
speaker.
(

page 18, 19)
NOTE:
Do not place your hands or other objects close to the air outlet port as this may cause damage or injury.•
Do not place your hands or face, or objects which cannot withstand heat near the air outlet port. Hot air comes out •
from this port.

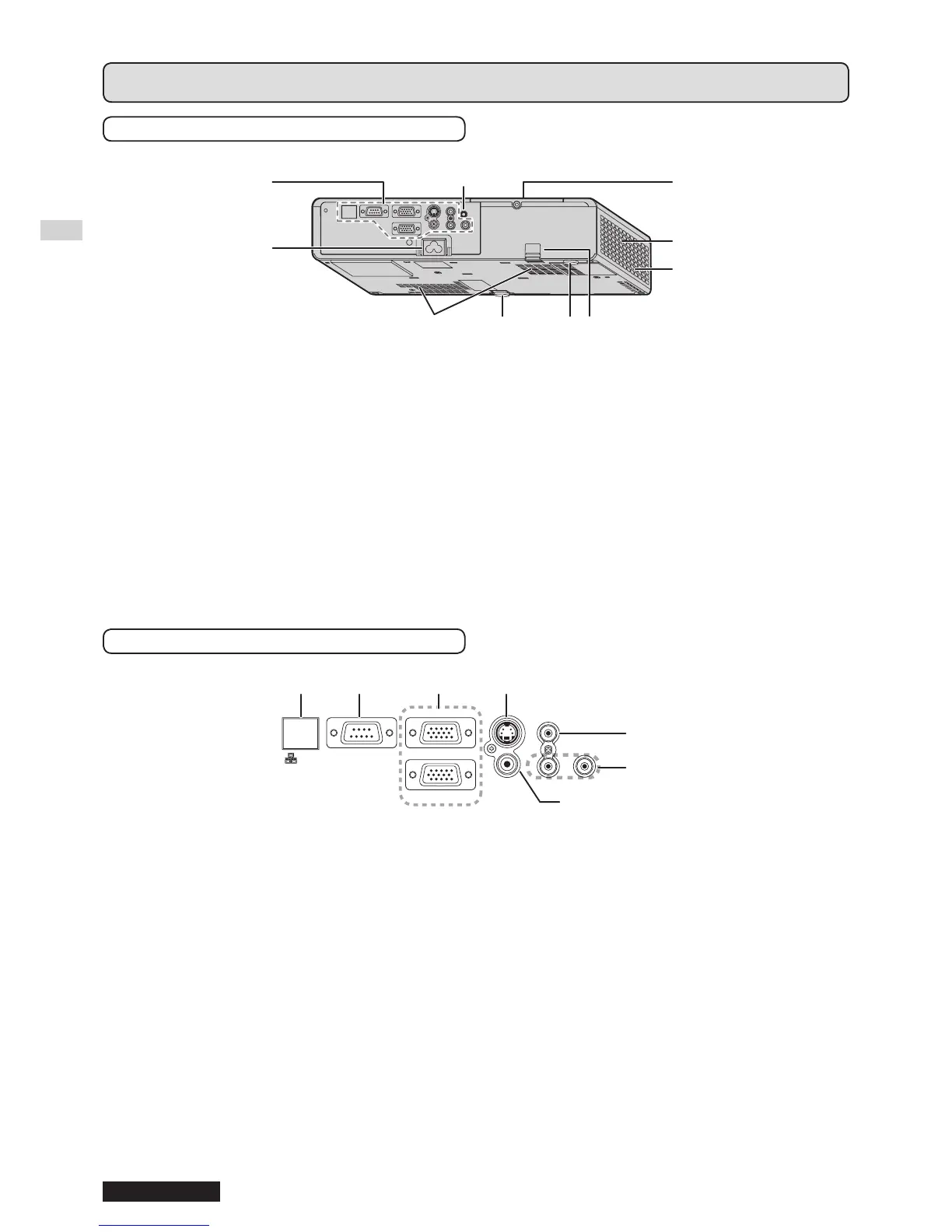

Rear and bottom view
Terminals
LAN
SERIAL
COMPUTER 1 IN
S-VIDEO
IN
VIDEO IN AUDIO IN
1 2
AUDIO
OUT
COMPUTER 2 IN
① ② ③ ④
⑤
⑥
⑦
NOTE:
Do not connect any power cable other than the attached one.•
Do not cover the ventilation openings of the air intake port or air outlet port. •
