Panasonic TX-26LE8A - VESA and Pedesdal Bracket Installation

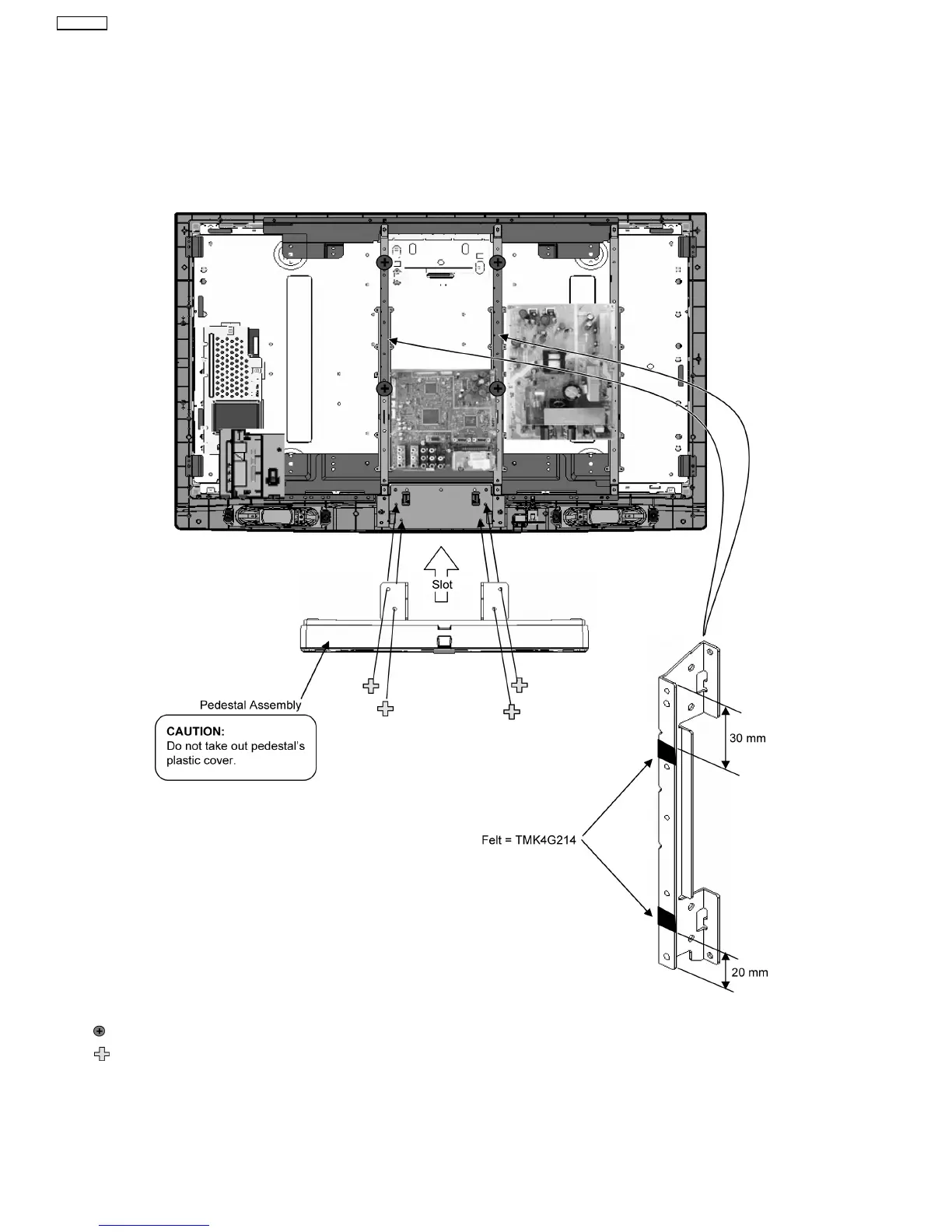

7.4. VESA and Pedesdal Bracket Installation
1. Stick 2 pieces of felt on each part of the VESA bracket.
2. Fix 4 screws to VESA bracket.
Tightening torque should be 100 Ncm to 130 Ncm (10 kgf cm to 13 kgf cm).
3. Slot pedestal assembly and fix 4 screws to cabinet.
Tightening torque should be 100 Ncm to 130 Ncm (10 kgf cm to 13 kgf cm).
= SCREW-XTB4 + 15JFJ (4 pcs)
= SCREW-XYN4 + F10FJK (4 pcs)
14
TX-26LE8A
