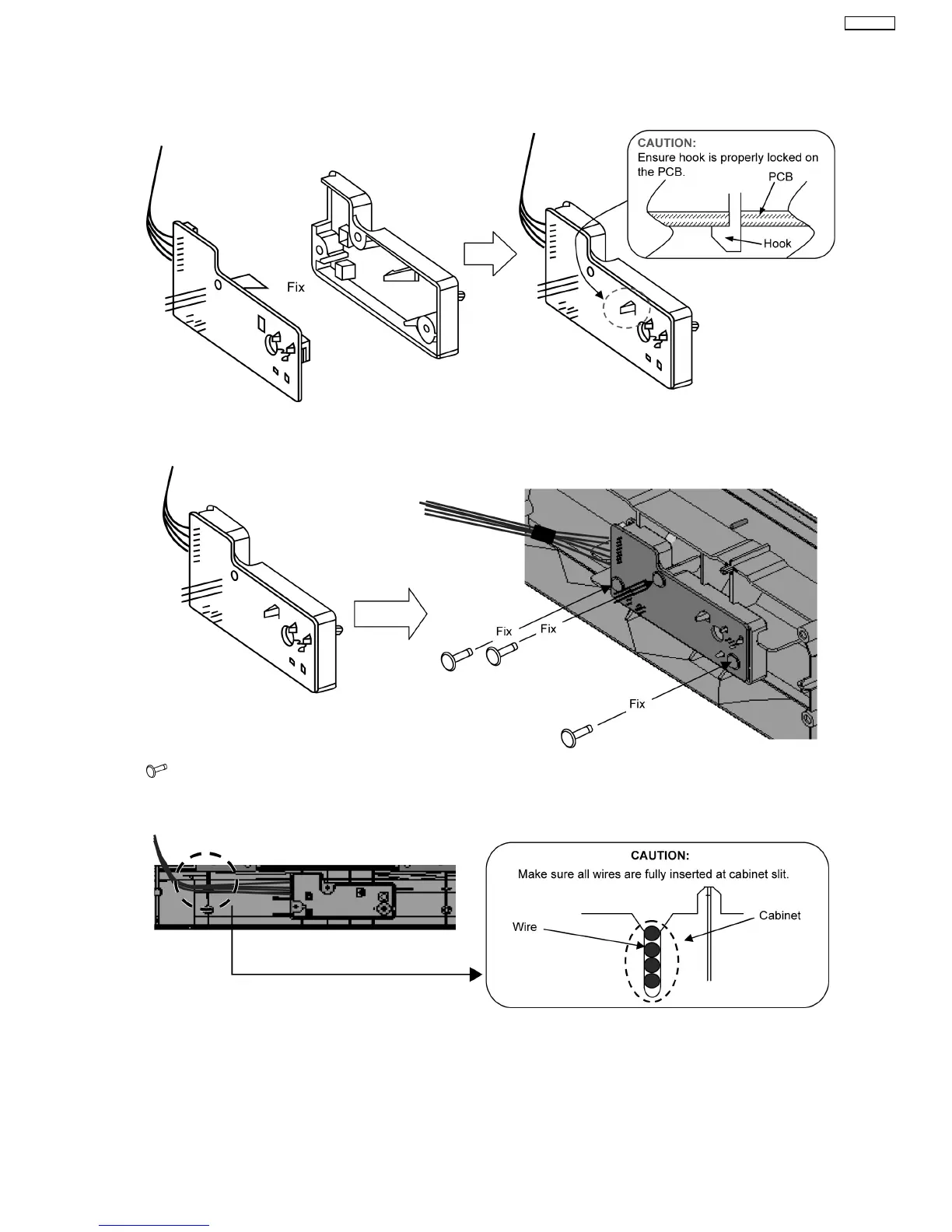

7.6. LED Panel Installation
1. Put PCB to LED panel and ensure hook is properly locked on the PCB.
2. Fix LED panel to cabinet with 3 screws.
Tightening torgue should be 0.5 N m ~ 0.8 N m (5 to 8 kgf cm).
= Screw - XTW3 + 10TFJ (3 pcs)
3. Fix wires at cabinet slit and make sure all wires are fully inserted to avoid contact with the pedestal metal.
17
TX-26LE8A
