7.7. LCD Panel Assembly Installation

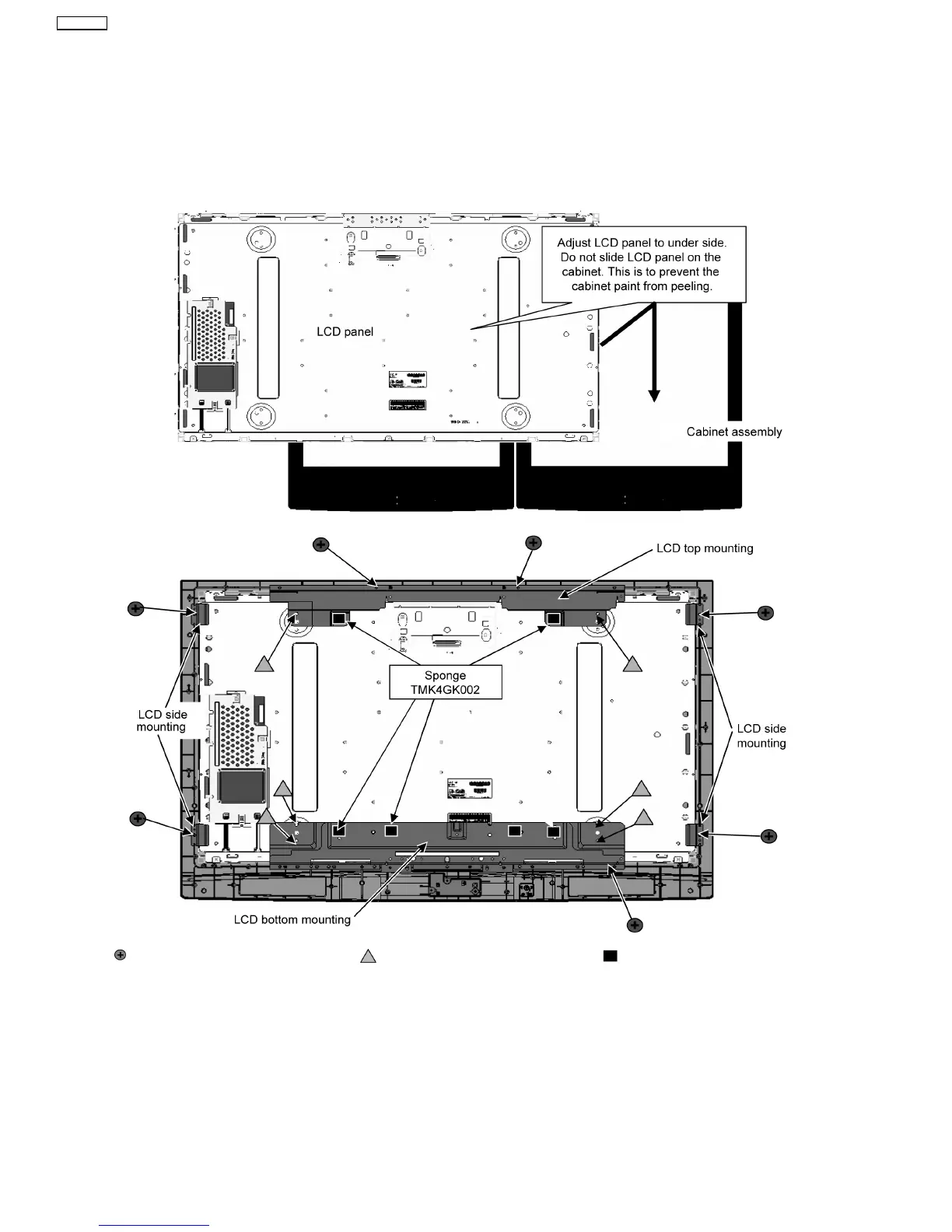

1. Put LCD panel to cabinet assembly.
2. Put LCD top mounting, LCD bottom mounting and LCD side mounting to cabinet assembly.
3. Fix screw into LCD top mounting, LCD side mounting and LCD bottom mounting.
Tightening torque should be 100 N cm ~ 130 N cm (10 kgf cm to 13 kgf cm).
4. Stick sponges at top mounting and bottom mounting.
= SCREW - XTB4 + 15JFJ (7 pcs), = SCREW - XYN4 + F6FJ (6 pcs), = SPONGE (6 pcs)
