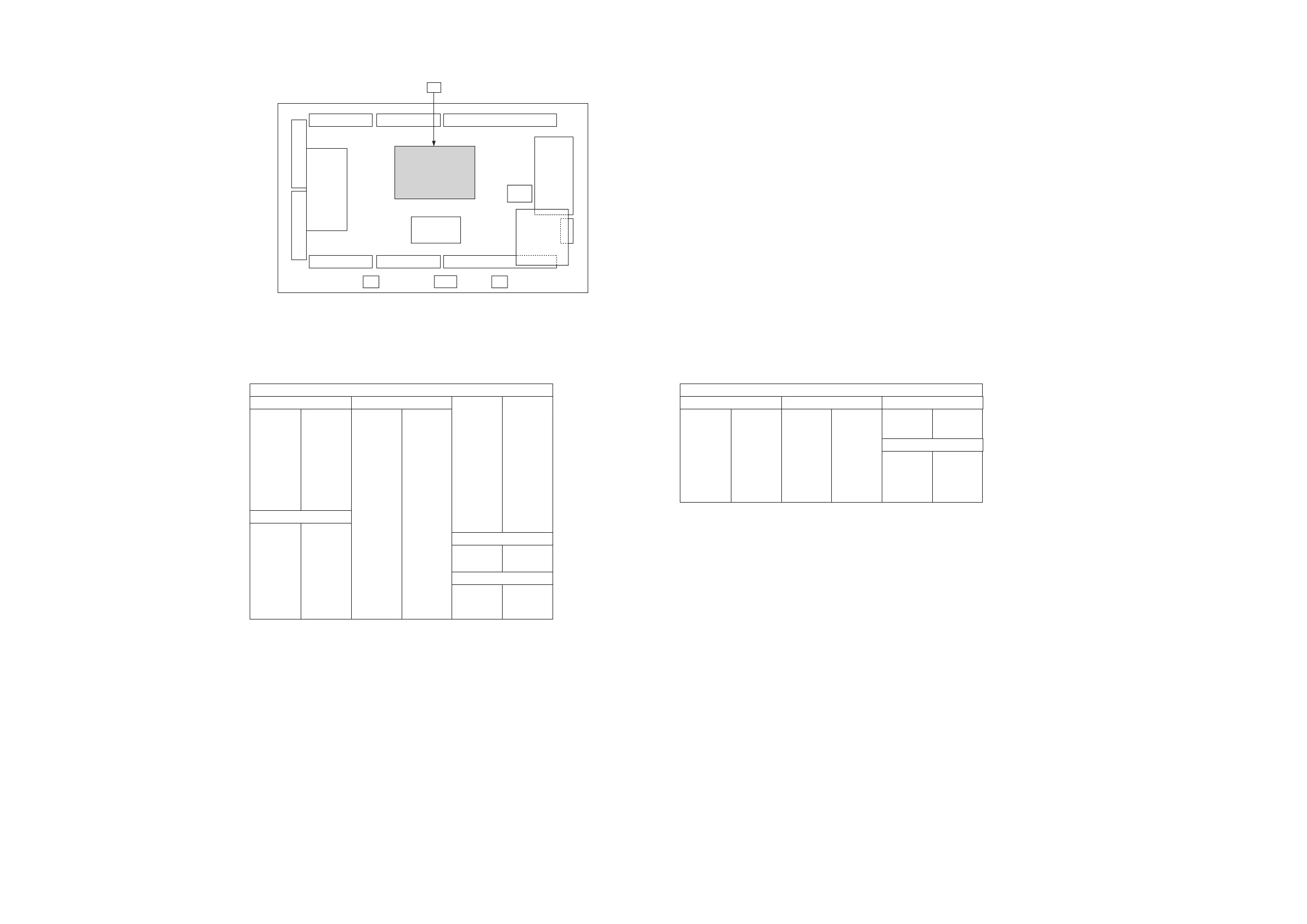

Parts Location
P-BOARD (FOIL SIDE)
IC201 E-4
IC202 E-3
IC251 C-5
IC352 D-3
IC403 B-3
IC501 F-2
IC551 E-1
IC601 G-4
IC701 C-1
PC201 D-3
PC202 D-3
PC501 E-2
PC502 F-1
PC504 F-1
IC
PHOTO COUPLER
Q201 D-5
Q202 D-4
Q203 E-3
Q204 E-3
Q251 C-6
Q252 C-6
Q355 D-3
Q401 B-4
Q402 B-3
Q403 B-3
Q404 B-2
Q405 B-2
Q406 C-2
Q407 B-3
Q408 B-3
Q502 G-2
Q503 E-2
Q504 E-3
Q505 G-2
Q506 G-1
Q551 D-2
Q557 D-1
Q558 D-2
Q559 D-2
TRANSISTOR
TP5 H-6
TP9 B-4
Q601 F-4
Q602 G-4
Q603 F-4
Q604 F-4
Q605 E-3
Q606 F-3
Q607 E-3
Q701 C-1
Q702 B-1
Q703 C-1
Q704 C-1
Q705 D-2
Q706 B-2
Q707 C-1
Q708 C-2
TEST POINT
VR251 C-5
VR401 B-2
VOLUME
Parts Location
P-BOARD (COMPONENT SIDE)
IC201 D-4
IC501 D-2
IC
Q201 E-5
Q202 E-4
Q355 F-3
Q401 G-4
Q402 H-3
Q403 H-3
Q551 F-2
Q601 D-4
Q604 D-4
Q606 D-3
TRANSISTOR
TP5 B-6
TP9 H-4
TEST POINT
VR251 F-5
VR401 H-2
VOLUME
