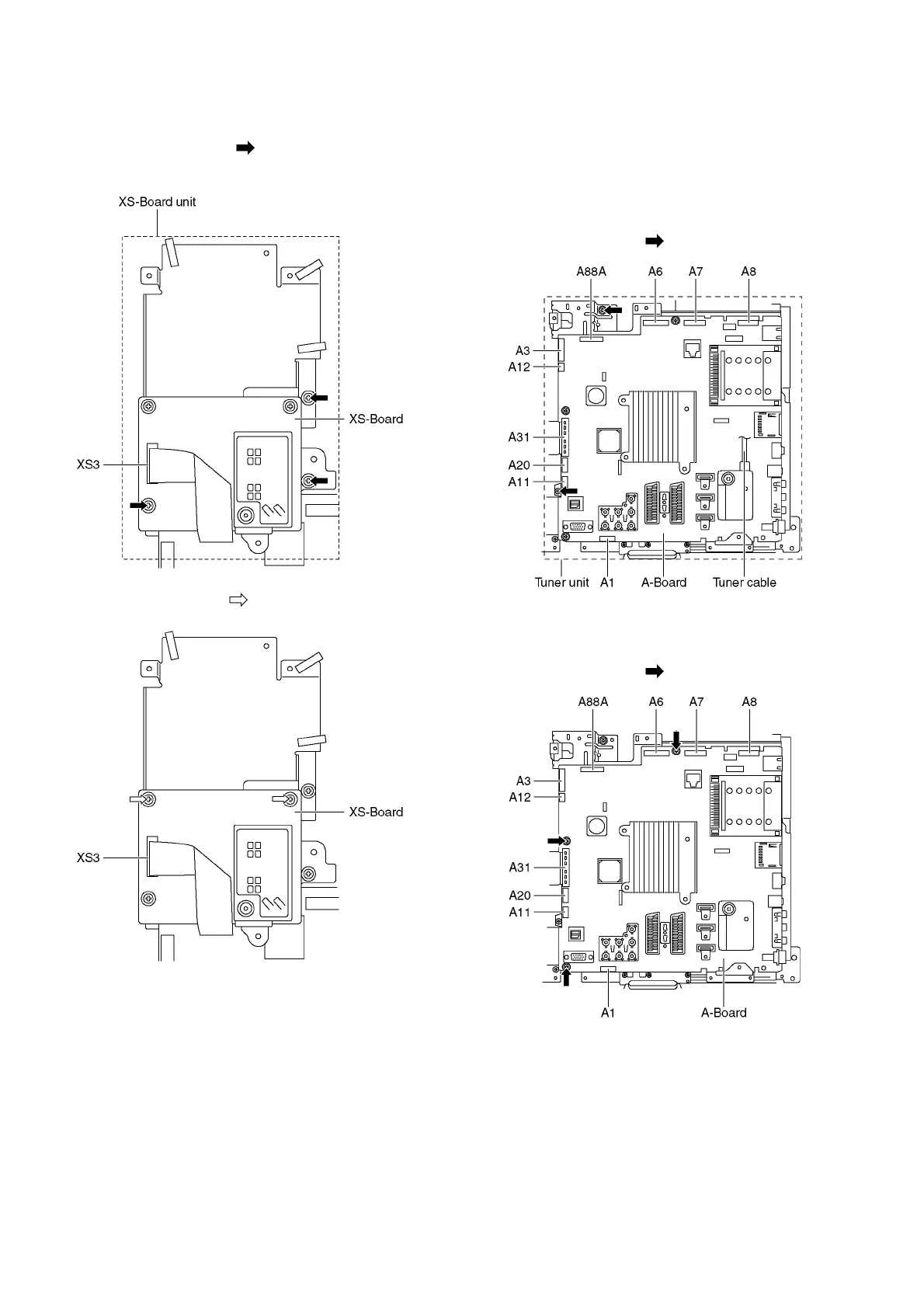

9.5. Remove the XS-Board
1. Unlock the cable clampers to free the cable.
2. Disconnect the flexible cable (XS3).
3. Remove the screws (×3 ) and remove the XS-Board
unit.
4. Remove the screws (×3 ) and remove the XS-Board.
9.6. Remove the Tuner unit
1. Remove the Side terminal cover and the Side shield
metal. (See section 9.4.)
2. Remove the XW-Board. (See section 9.5.)
3. Unlock the cable clampers to free the cable.
4. Disconnect the connectors (A1, A3, A6, A7, A8, A11, A12
and A20).
5. Disconnect the flexible cables (A31 and A88A).
6. Remove the screws (×2 ) and remove the Tuner unit.
9.7. Remove the A-Board
1. Remove the Tuner unit. (See section 9.6.)
2. Remove the screws (×3 ) and remove the A-Board.
