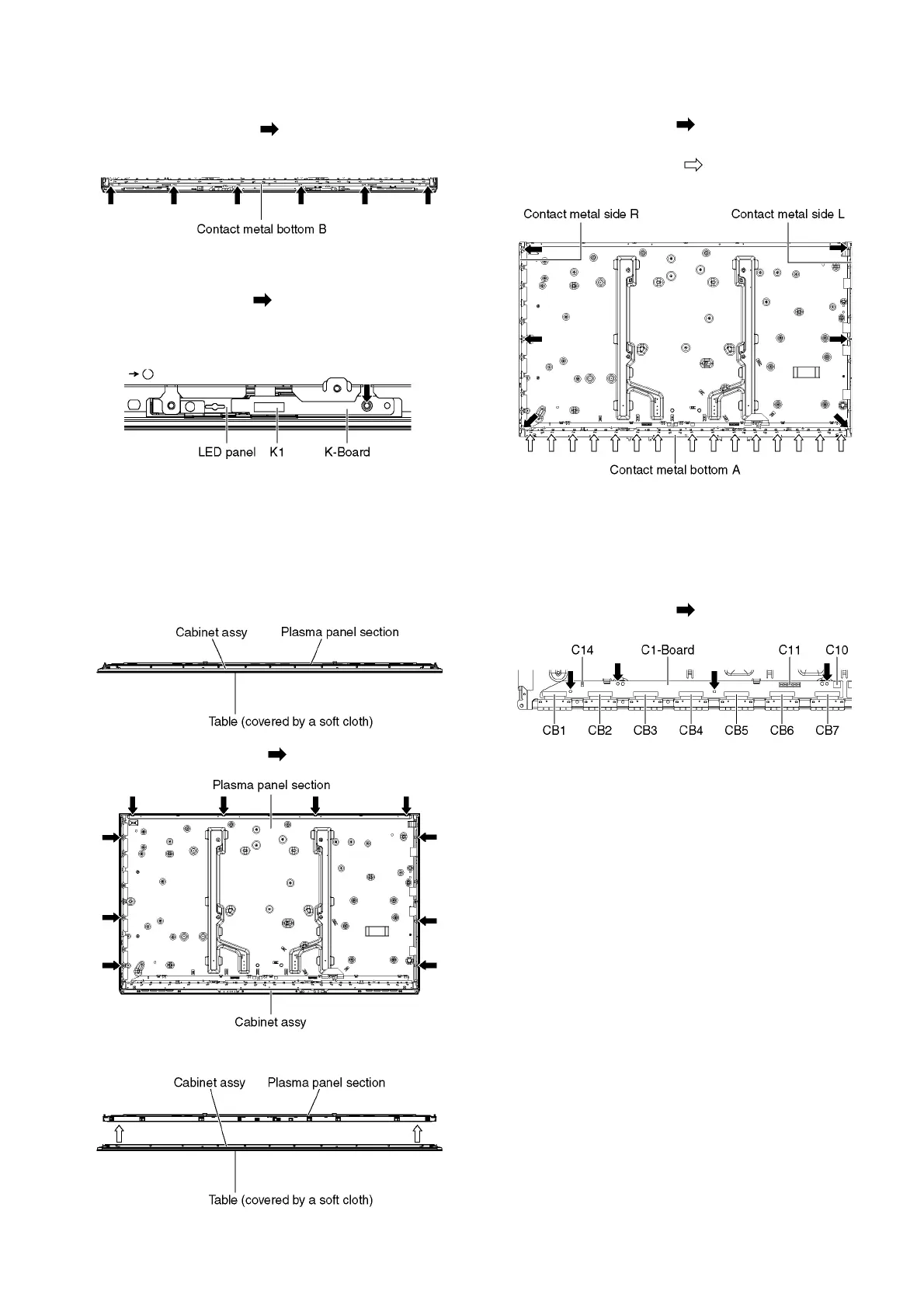

9.2.22. Remove the Contact metal bottom
B
1. Remove the screws (×6 ).
2. Remove the Contact metal bottom B.
9.2.23. Remove the K-Board
1. Remove the screw (×1 ).
2. Disconnect the connector (K1) and remove the K-Board
from the LED panel.
9.2.24. Remove the Cabinet assy from the
Plasma panel section.
1. Remove the Plasma panel section from the servicing
stand and lay on a flat surface such as a table (covered
by a soft cloth) with the Plasma panel surface facing
downward.
2. Remove the screws (×10 ).
3. Remove the Plasma panel section from the Cabinet assy.
9.2.25. Remove the Contact metals
1. Remove the Tape from the Contact metals.
2. Remove the screws (×6 ).
3. Remove the Contact metal side (L, R).
4. Remove the screws (×15 ).
5. Remove the Contact metal bottom A.
9.2.26. Remove the C1-Board
1. Disconnect the flexible cables (CB1, CB2, CB3, CB4,
CB5, CB6 and CB7).
2. Disconnect the flexible cable (C11).
3. Disconnect the connectors (C10 and C14).
4. Remove the screws (×4 ) and remove the C1-Board.
