9.2.21 Remove the SS-Board
1. Disconnect the connector (SS11).
2. Disconnect the flexible cable (SS33).
3. Disconnect the flexible cables (SS62 and SS64).
4. Remove the screws (×5 , ×3 ) and remove the SS-Board.

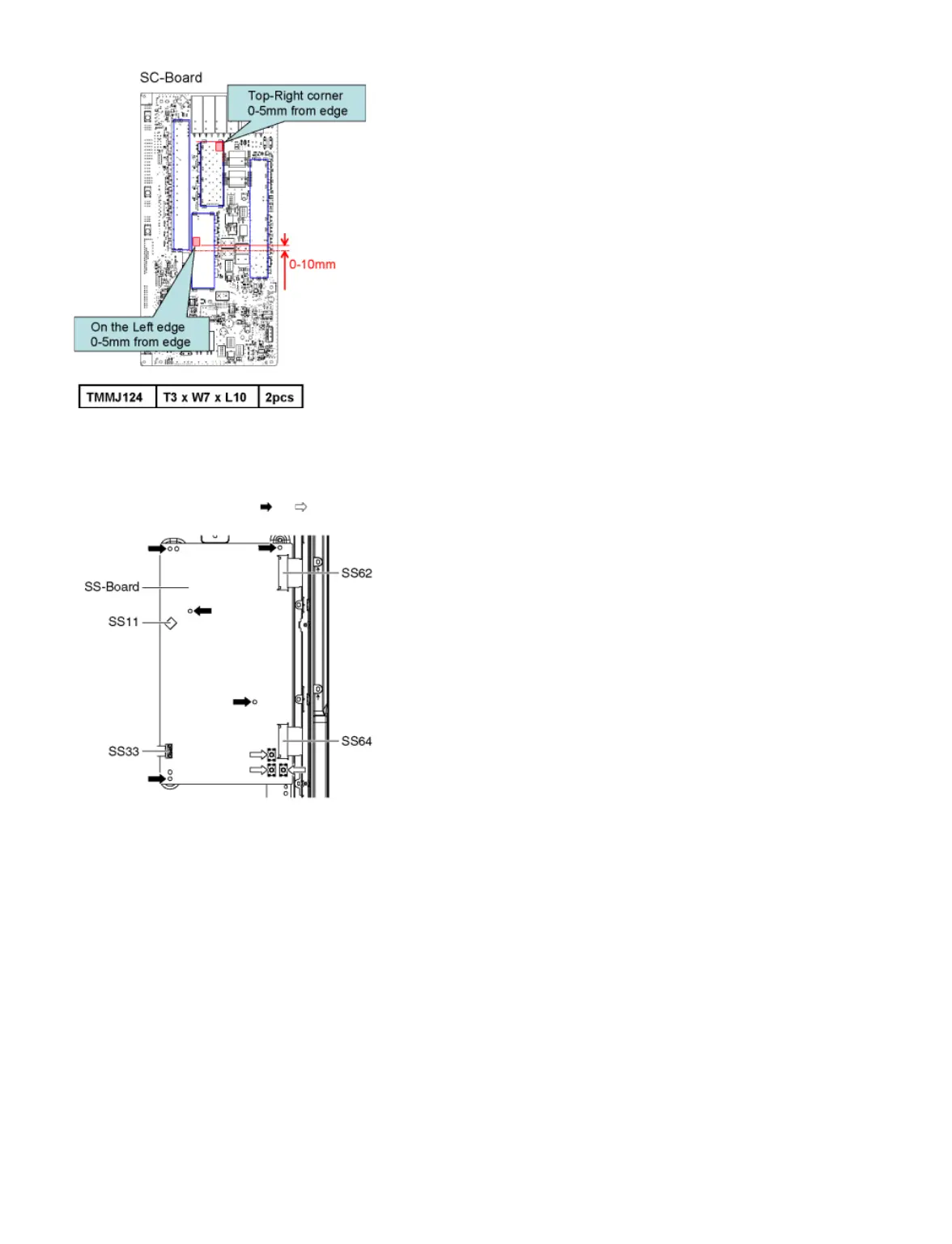

9.2.22 Work instructions for the Rubber sheet for SS-Board
1. Rubber sheets are put between the board and rear cover for EMC requirement and heat radiation. Confirm rubber sheets were placed at each
portion when assembling as shown in figure.
