Panasonic TX Series - Page 36

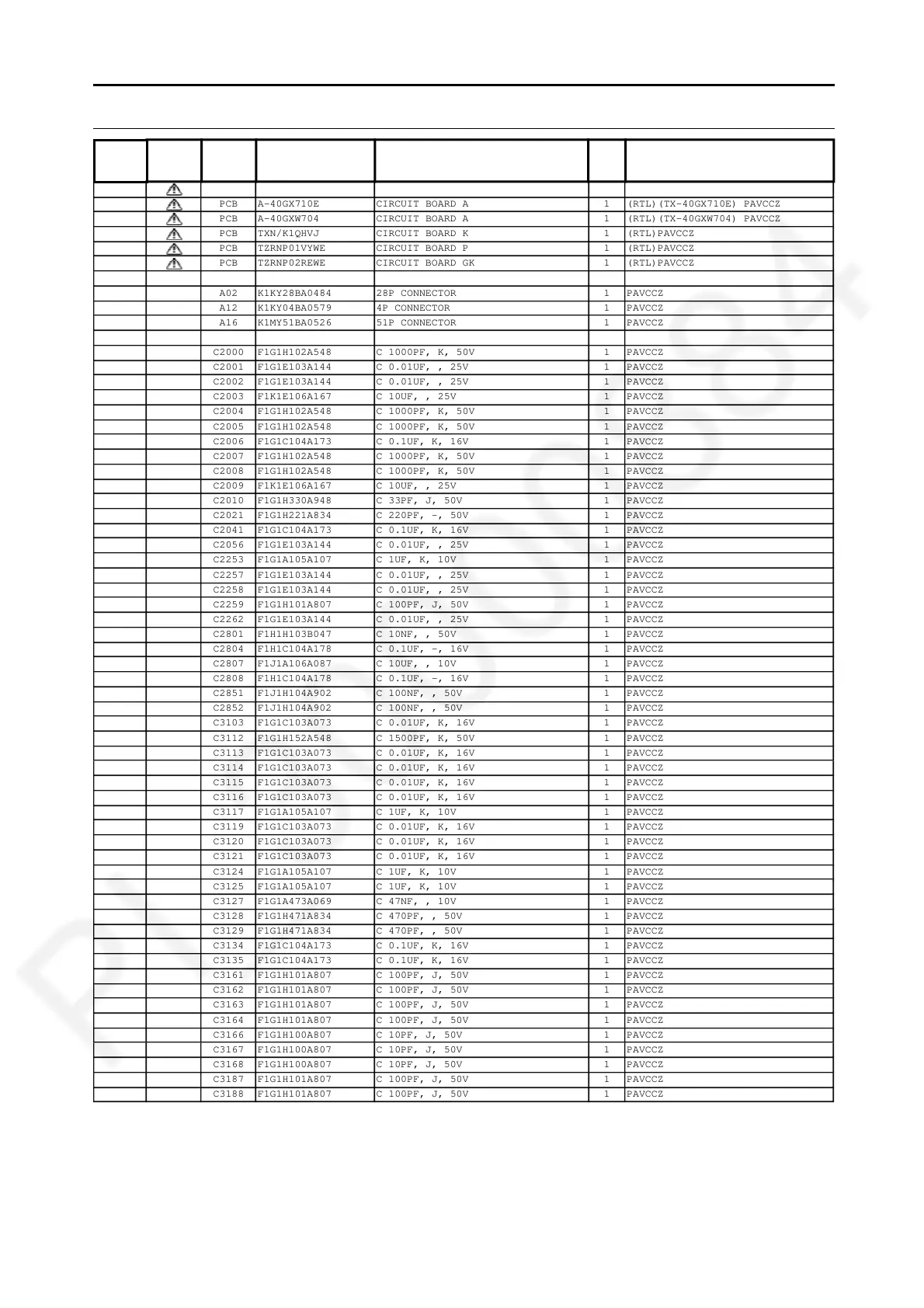

Model No. : TX-40GX700E TX-40GXW704 TX-40GX710E Parts List
Change Safety
Ref.
No.
Part No. Part Name & Description Q'ty Remarks
PCB A-40GX700E CIRCUIT BOARD A 1 (RTL)(TX-40GX700E) PAVCCZ
PCB A-40GX710E CIRCUIT BOARD A 1 (RTL)(TX-40GX710E) PAVCCZ
PCB A-40GXW704 CIRCUIT BOARD A 1 (RTL)(TX-40GXW704) PAVCCZ
PCB TXN/K1QHVJ CIRCUIT BOARD K 1 (RTL)PAVCCZ
PCB TZRNP01VYWE CIRCUIT BOARD P 1 (RTL)PAVCCZ
PCB TZRNP02REWE CIRCUIT BOARD GK 1 (RTL)PAVCCZ
A02 K1KY28BA0484 28P CONNECTOR 1 PAVCCZ
A12 K1KY04BA0579 4P CONNECTOR 1 PAVCCZ
A16 K1MY51BA0526 51P CONNECTOR 1 PAVCCZ
C2000 F1G1H102A548 C 1000PF, K, 50V 1 PAVCCZ
C2001 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2002 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2003 F1K1E106A167 C 10UF, , 25V 1 PAVCCZ
C2004 F1G1H102A548 C 1000PF, K, 50V 1 PAVCCZ
C2005 F1G1H102A548 C 1000PF, K, 50V 1 PAVCCZ
C2006 F1G1C104A173 C 0.1UF, K, 16V 1 PAVCCZ
C2007 F1G1H102A548 C 1000PF, K, 50V 1 PAVCCZ
C2008 F1G1H102A548 C 1000PF, K, 50V 1 PAVCCZ
C2009 F1K1E106A167 C 10UF, , 25V 1 PAVCCZ
C2010 F1G1H330A948 C 33PF, J, 50V 1 PAVCCZ
C2021 F1G1H221A834 C 220PF, -, 50V 1 PAVCCZ
C2041 F1G1C104A173 C 0.1UF, K, 16V 1 PAVCCZ
C2056 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2253 F1G1A105A107 C 1UF, K, 10V 1 PAVCCZ
C2257 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2258 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2259 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C2262 F1G1E103A144 C 0.01UF, , 25V 1 PAVCCZ
C2801 F1H1H103B047 C 10NF, , 50V 1 PAVCCZ
C2804 F1H1C104A178 C 0.1UF, -, 16V 1 PAVCCZ
C2807 F1J1A106A087 C 10UF, , 10V 1 PAVCCZ
C2808 F1H1C104A178 C 0.1UF, -, 16V 1 PAVCCZ
C2851 F1J1H104A902 C 100NF, , 50V 1 PAVCCZ
C2852 F1J1H104A902 C 100NF, , 50V 1 PAVCCZ
C3103 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3112 F1G1H152A548 C 1500PF, K, 50V 1 PAVCCZ
C3113 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3114 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3115 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3116 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3117 F1G1A105A107 C 1UF, K, 10V 1 PAVCCZ
C3119 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3120 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3121 F1G1C103A073 C 0.01UF, K, 16V 1 PAVCCZ
C3124 F1G1A105A107 C 1UF, K, 10V 1 PAVCCZ
C3125 F1G1A105A107 C 1UF, K, 10V 1 PAVCCZ
C3127 F1G1A473A069 C 47NF, , 10V 1 PAVCCZ
C3128 F1G1H471A834 C 470PF, , 50V 1 PAVCCZ
C3129 F1G1H471A834 C 470PF, , 50V 1 PAVCCZ
C3134 F1G1C104A173 C 0.1UF, K, 16V 1 PAVCCZ
C3135 F1G1C104A173 C 0.1UF, K, 16V 1 PAVCCZ
C3161 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C3162 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C3163 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C3164 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C3166 F1G1H100A807 C 10PF, J, 50V 1 PAVCCZ
C3167 F1G1H100A807 C 10PF, J, 50V 1 PAVCCZ
C3168 F1G1H100A807 C 10PF, J, 50V 1 PAVCCZ
C3187 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
C3188 F1G1H101A807 C 100PF, J, 50V 1 PAVCCZ
36
