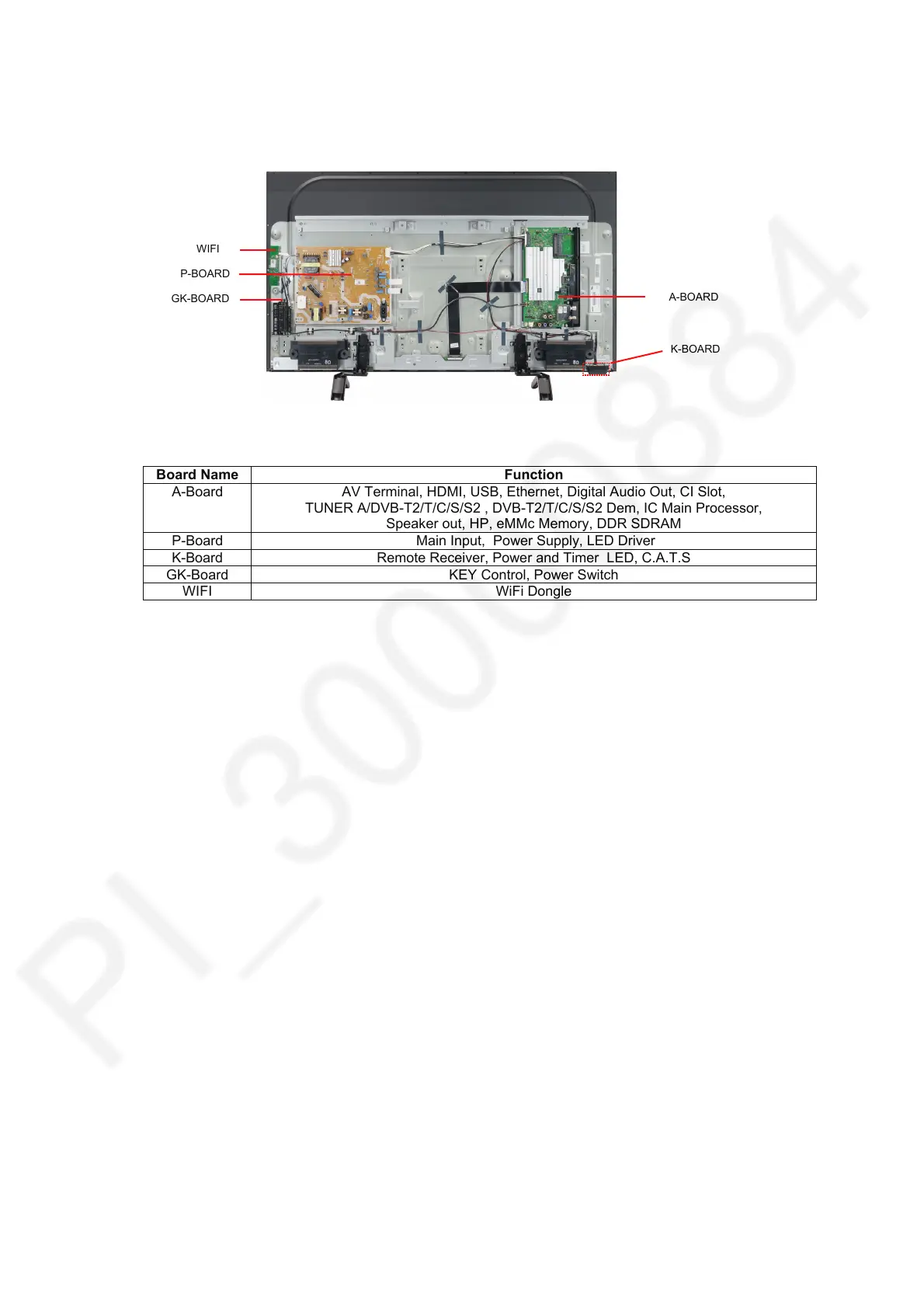

Chassis Board Layout
Board Name Function
A-Board AV Terminal, HDMI, USB, Ethernet, Digital Audio Out, CI Slot,
TUNER A/DVB-T2/T/C/S/S2 , DVB-T2/T/C/S/S2 Dem, IC Main Processor,
Speaker out, HP, eMMc Memory, DDR SDRAM
P-Board Main Input, Power Supply, LED Driver
K-Board Remote Receiver, Power and Timer LED, C.A.T.S
GK-Board KEY Control, Power Switch
WIFI WiFi Dongle
A-BOARD
P-BOARD
K-BOARD
WIFI
GK-BOARD
