Getting started
TQBS0166
7
§ Check the version of the single cable router. (> 9)

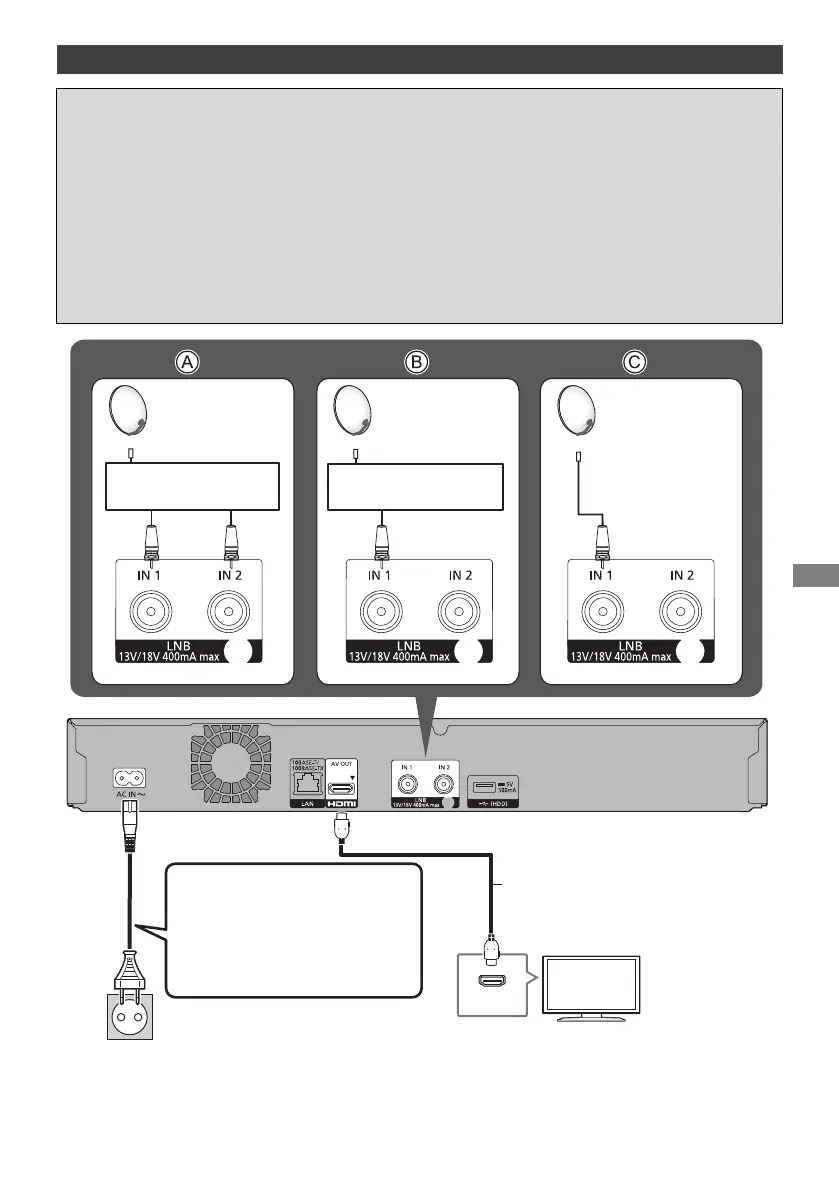

[UBS70] Basic connections
The following three connection methods are available. Choose a method suited to your environment.
A Using a multi switcher:
You can record two programmes simultaneously.
• Connect both LNB IN 1 and LNB IN 2 to the satellite dish.
B Using a single cable router:
You can record two programmes simultaneously.
• Connect satellite cable to LNB IN 1 terminal.
C Connecting a satellite cable directly:
You can record only one programme at a time.
• Connect LNB IN 1 terminal to the satellite dish.
This unit’s rear panel
Household mains socket
(AC 220 to 240 V, 50 Hz)
AC mains lead
(supplied)
• Connect only after all other
connections are complete.
Multi switcher
Satellite dish
Single cable
router
§
Satellite dish Satellite dish
HDMI cable
(18 Gbps)
