Role of the VL-V700
Features
-PBX
-PC (for program settings)
-Monitor (for real time monitoring)
13

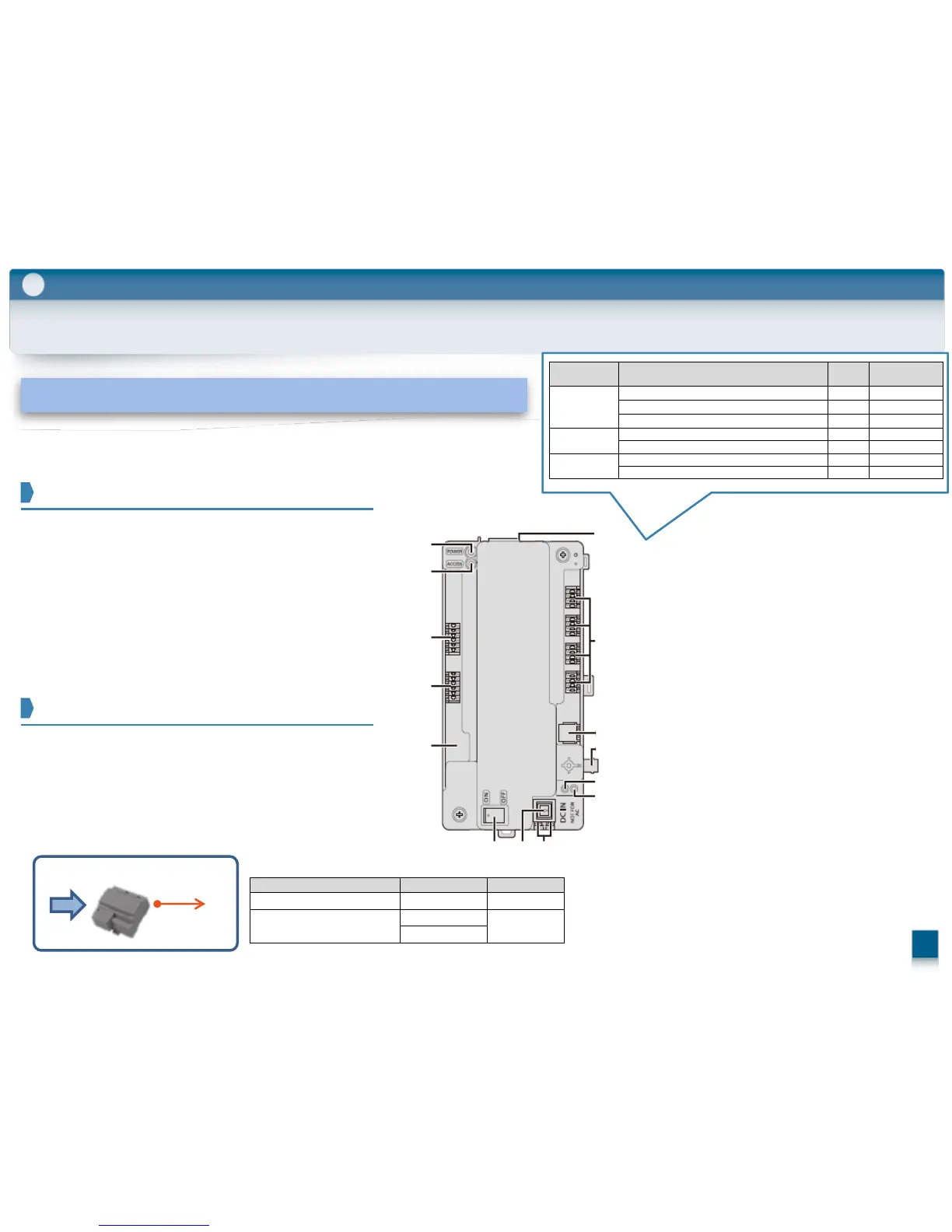

2-3. Control Box : VL-V700
2
Role/ Features / Installation
Device for controlling the entire system
- Easy setup by Setup tool soft ware(room no. registration)
- Easy connection check by Setup tool
(Check the connections between the lobby station
and main monitor of each room)
- SD card recording (record up to 90,000 images) …...…….... (6)
& System log (date, time, action, more than 90,000events)
- Real time monitoring …………………………………………..……..….. (9)
- Operation Environment : -10℃ to 50℃
Connectable devices
….. (8)
….. (5)
….. (9)
Idle Lit Off
Call or monitoring in progress Lit Lit
Accessing SD card Lit Flashing quickly
System setup PC programming in progress Lit Lit
PC connection check in progress Lit Lit
Error
Duplicate distribution box number found Off Flashing slowly
Duplicate lift controller number found Off Flashing slowly
(1) Power indicator (POWER)
(2) Access indicator (ACCESS)
(3) Connection terminals for lobby stations
(4) Connection terminals for lift controllers
(5) USB port (underneath dust cover)
Used for PC programming.
(6) SD card slot
Used to save the system log.
(7) Connection terminals for distribution boxes
(8) RJ11 jack for connection to PBX
(9) Coaxial connector for external video monitor
(10) Reset button ( ・ )
Used when restarting the control box.
(11) Function button (・・)
For internal use only.
(12) Power switch
(13) Cable release button for DC power supply
cable
(14) Connection terminals for DC power supply
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
(10)
(11)
(12) (13) (14)
Wiring run Wire diameter Max. length
supply unit
⇔
AC power source
AC
DC:24V
(14
)
Attached Power Supply Unit
(Indoor use only)
To Next Page
