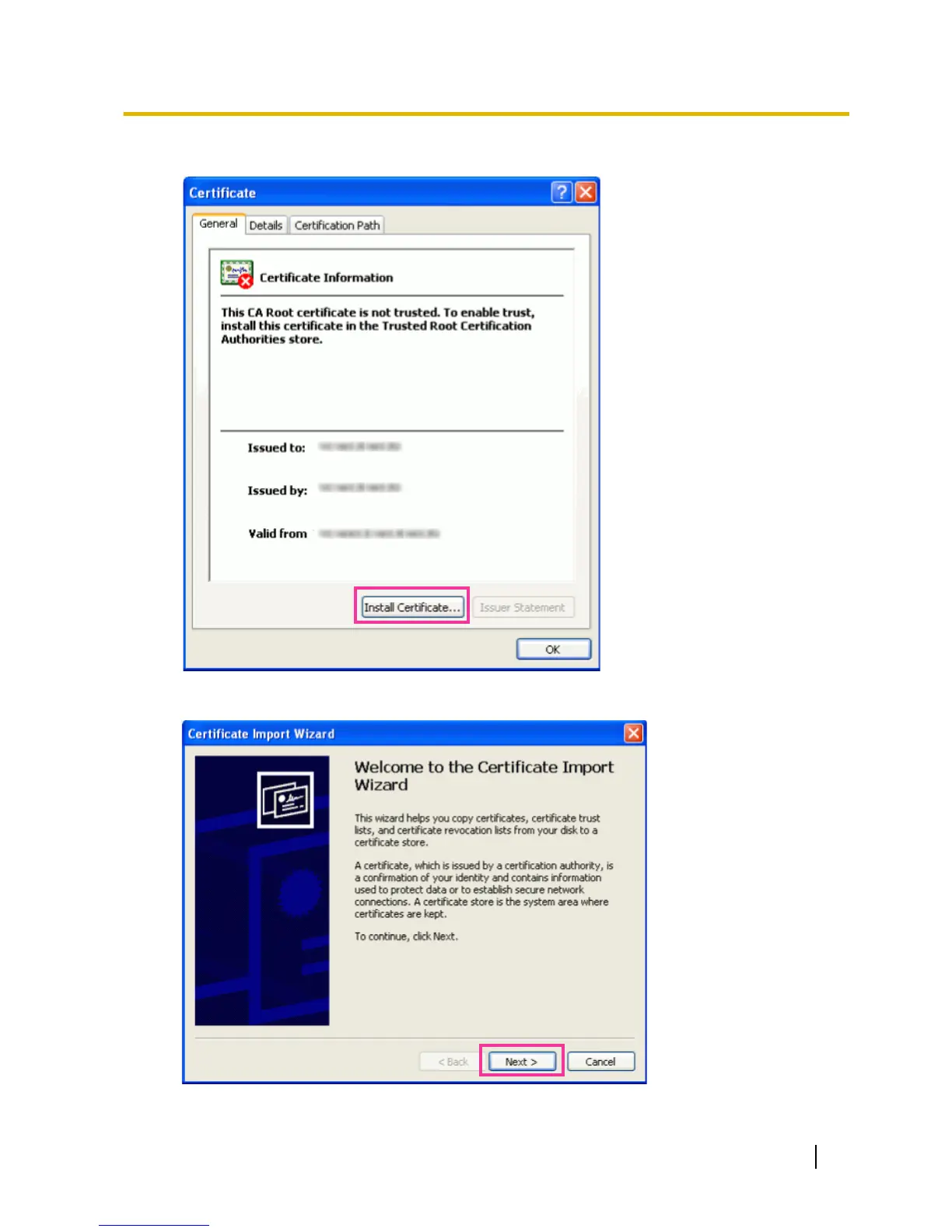

3. Click “Install Certificate...”.

4. Click “Next” according to the procedures displayed on the displayed on “Certificate Import Wizard”.

Operating Instructions 171

18 Configuring the network settings [Network]
