ParaBody 660 - Page 14

14

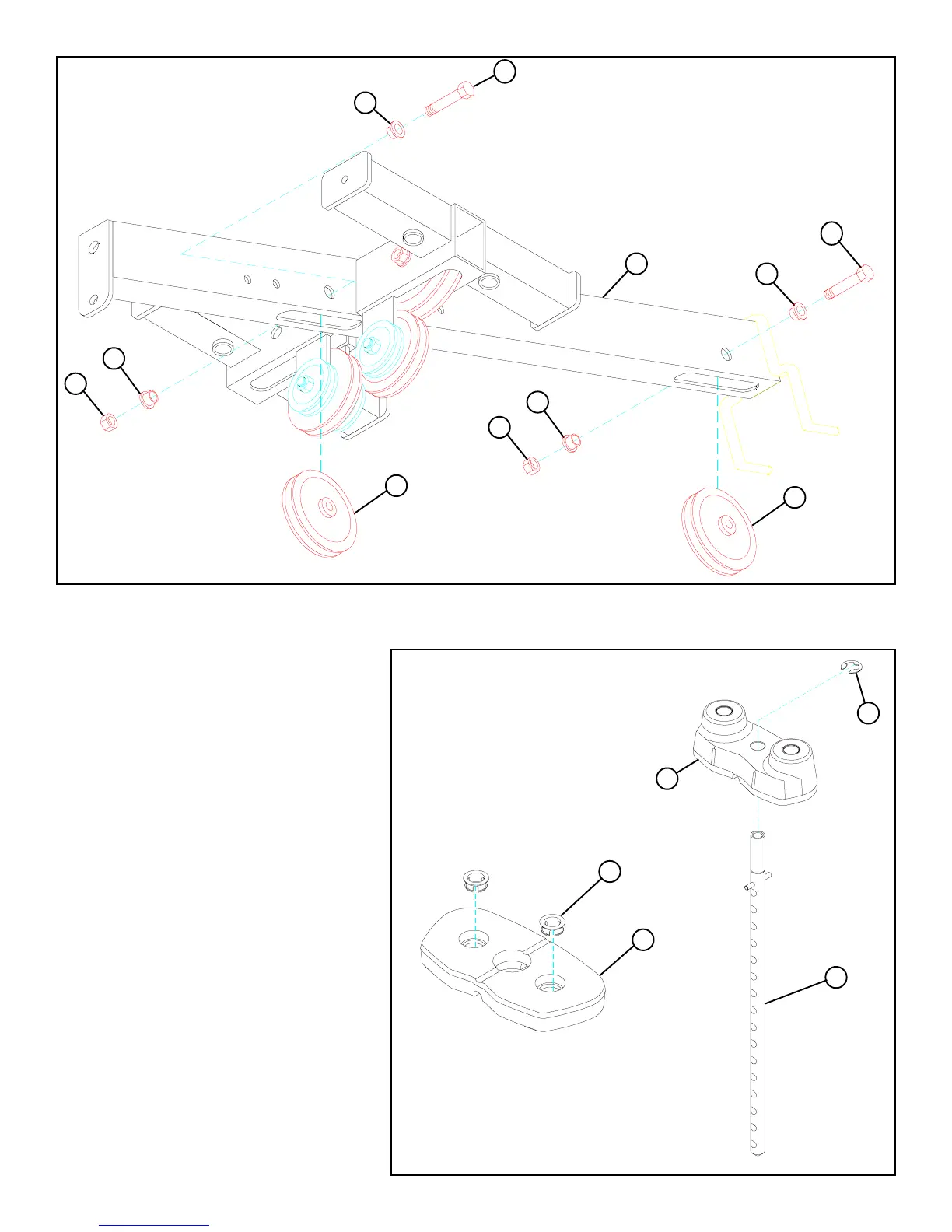

FIGURE 11
STEP 11
• LOOSELY assemble two 3-1/2” PULLEYS (42) to the TOP BOOM (17) using two 3/8 X 2-3/4” BOLTS (85), four 3/8” FLANGE SPACERS
(49), and two 3/8” LOCK NUTS (92). See FIGURE 11.
3/8 X 2-3/4” 85
17
49
92
49
42
49
85 3/8 X 2-3/4”
49
92
42
FIGURE 12
STEP 12
• Snap two WEIGHT PLATE BUSHINGS (79) each,
into the “ top” side of fifteen WEIGHT PLATES
(105) as shown in FIGURE 12.
105
79
• Slide the WEIGHT PLATE SHAFT (73) thru the
hole in the HEAD PLATE(72), and lock in place
using one 3/4” E-RING (112) as shown in
FIGURE 12.
72
112
73
