38
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
FIGURE 41

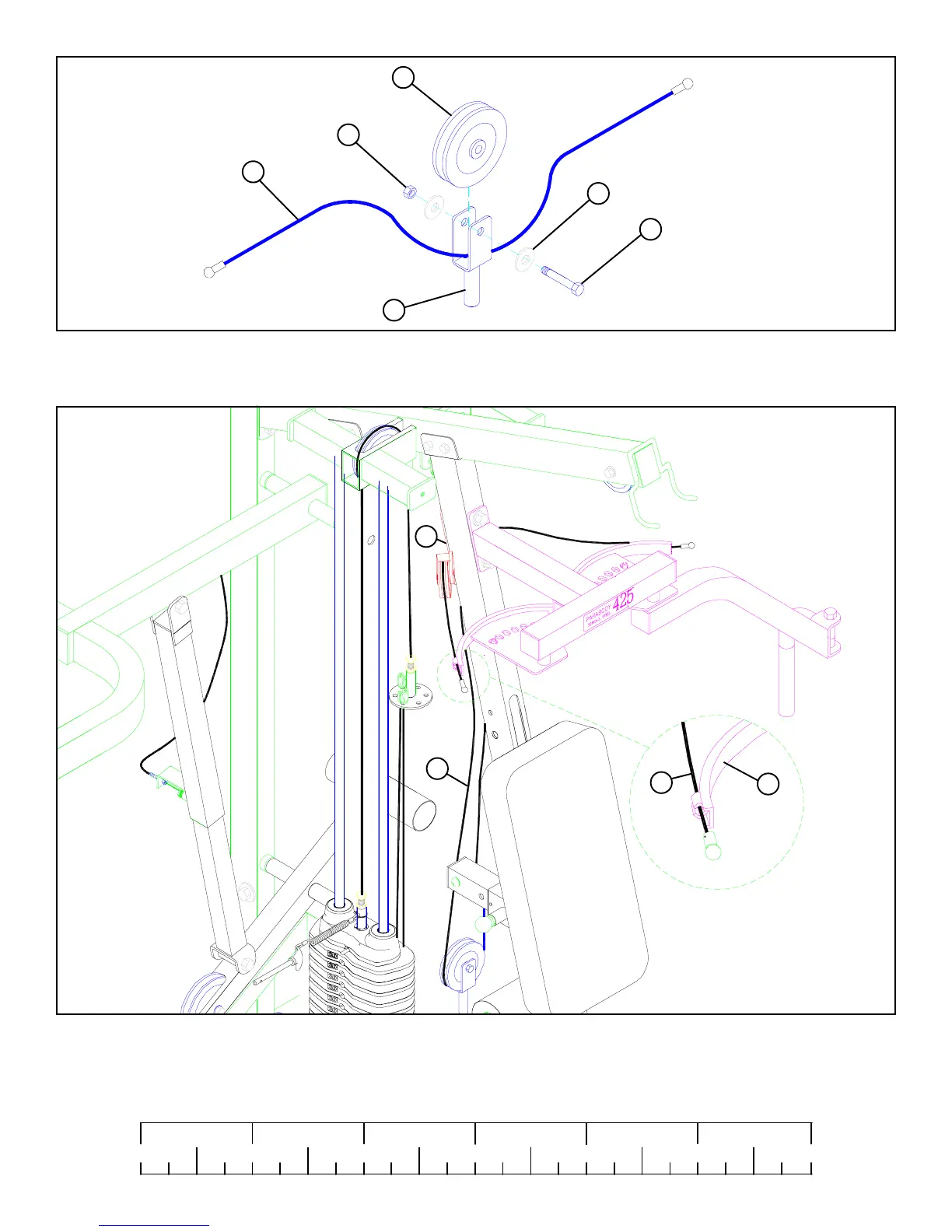

STEP 40
• Assemble one 3-1/2” PULLEY (42) around the PEC DEC CABLE (98) and to the PULLEY BRACKET (29) using one 3/8 X 2” BOLT
(84), two 3/8” WASHERS (91) and one 3/8” LOCKNUT (92) as shown in FIGURE 40.
FIGURE 40
STEP 41
• Slide the ends of the PEC DEC CABLE (98) into the bushings on the PEC CAMS (24) as shown on FIGURE 41.
• Lay the PEC DEC CABLE (98) over the pulleys and under the cable retaining clips in the CENTER PULLEY BRACKET (26) as shown
in FIGURE 41. (NOTE: Securely tighten the pulley connections in the CENTER PULLEY BRACKET (26). The cable retaining clips
should be at approximately a 45° angle.)
42
92
29
98
84 3/8 X 2”
91
98
24
98
PEC
CABLE
26
To Next Page
