DETAIL 42
FIGURE 42
SEE DETAIL 39
STEP 42

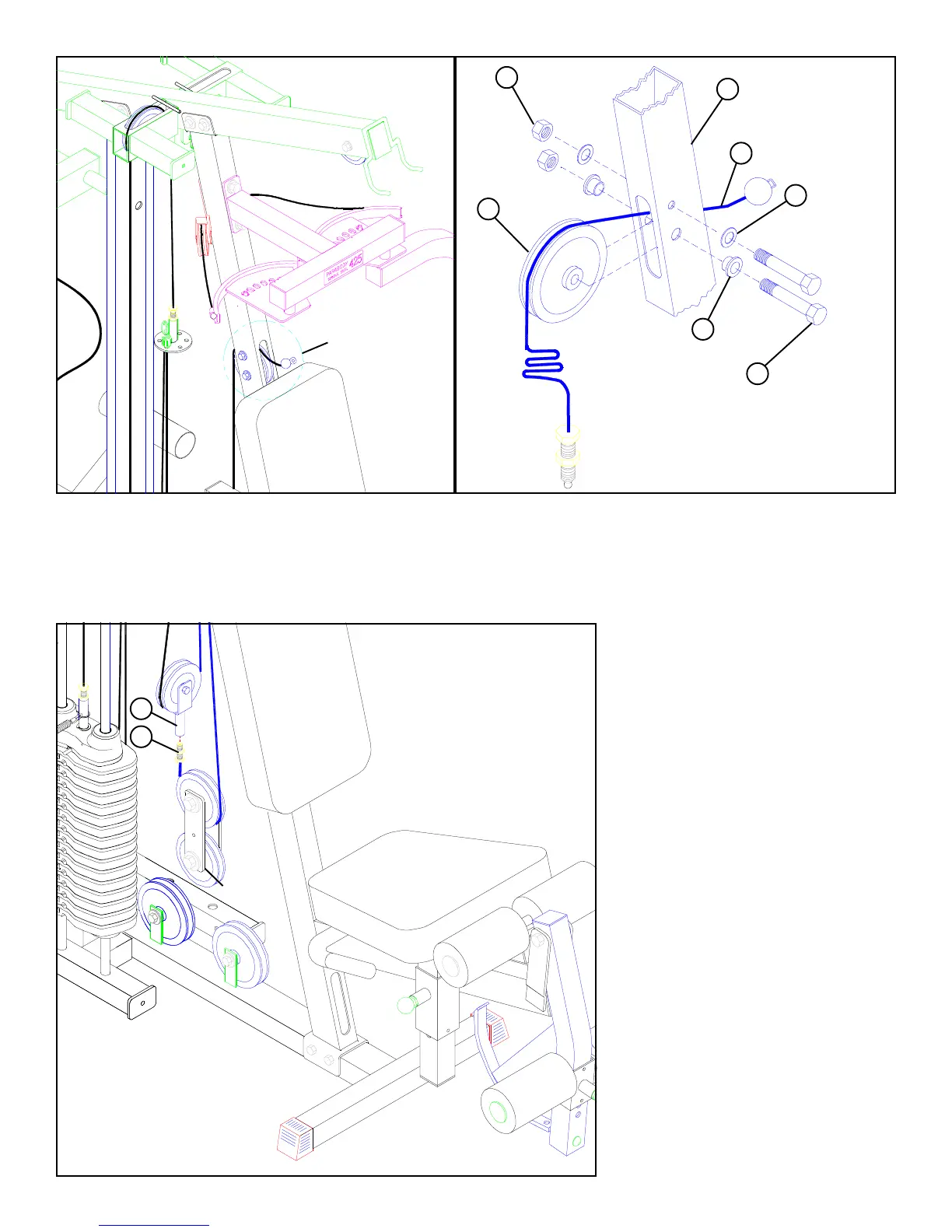

• Securely assemble the ball end of the AB CABLE (103) and one 3-1/2” PULLEY (42) to the FRONT UPRIGHT (25) using two 3/8 X 2-
3/4” BOLTS (85), two 3/8” FLANGE SPACERS (49), two 3/8” WASHERS (91), and two 3/8” LOCKNUTS (92). (NOTE: The AB
CABLE (103) should be routed underneath the retaining bolt as shown in DETAIL 42.)
25
3/8 X 2-3/4” 85
91
92
42
49
103
• Run the AB CABLE (103) through the
floating pulley assembly, then screw the
threaded end of AB CABLE (103) approxi-
mately 3/4” into the end of the PULLEY
BRACKET (29) and tighten jam nut
securely as shown in FIGURE 43.
STEP 43
IMPORTANT! Make sure the cables are
running in the grooves of all pulleys.
FIGURE 43
AB CABLE
29
103
FLOATING
PULLEY
To Next Page
