ParaBody 660 - Page 7

7
FIGURE 2
STEP 2
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
4
1
93
94

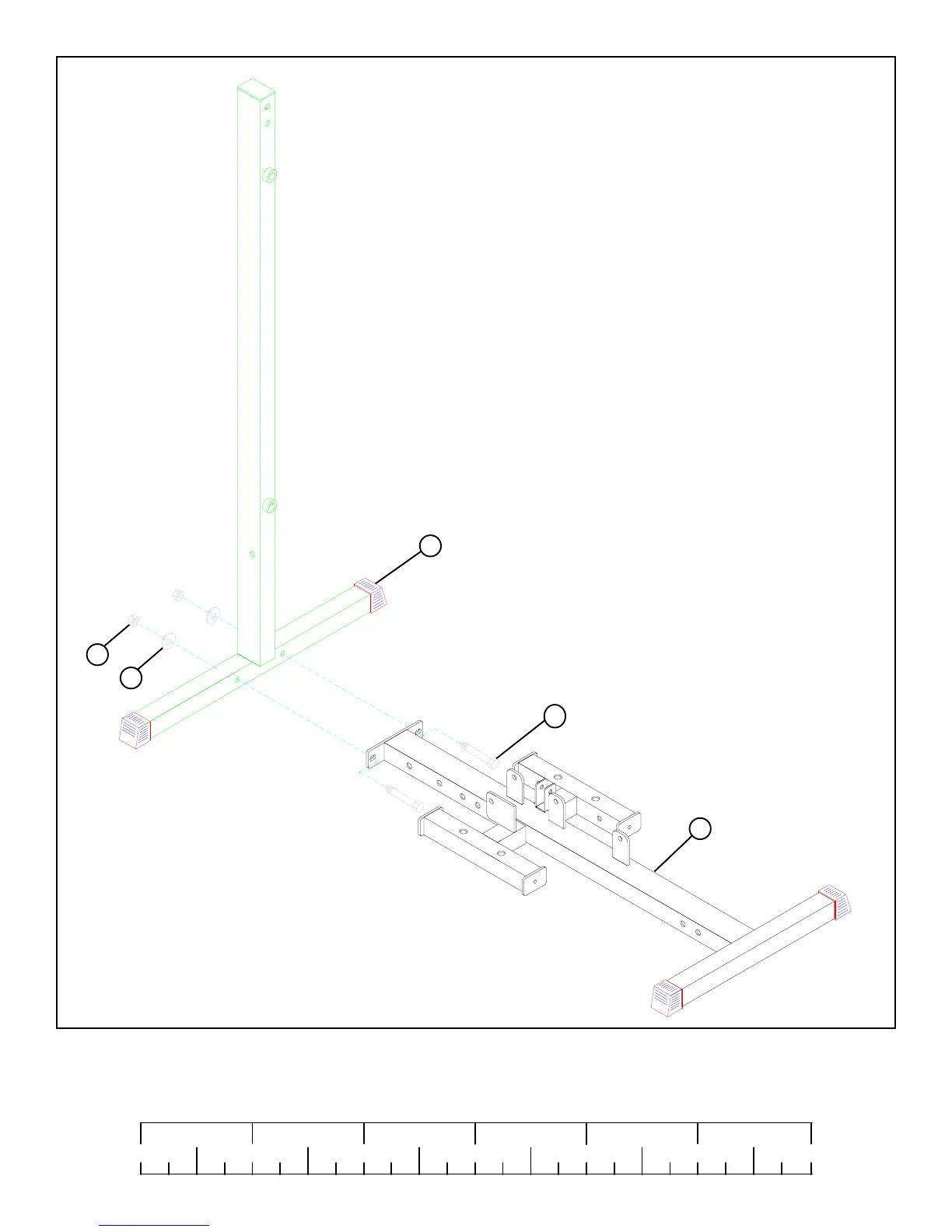

• LOOSELY assemble the REAR UPRIGHT (4) to the BASE (1) using two 1/2 X 3” BOLTS (87), two 1/2” WASHERS (93), and two
1/2” LOCK NUTS (94) as shown in FIGURE 2.
87 1/2 X 3”
