ParaBody 950 st - Frame Assembly: Step 2; Installing Seat Support and Roller Pads

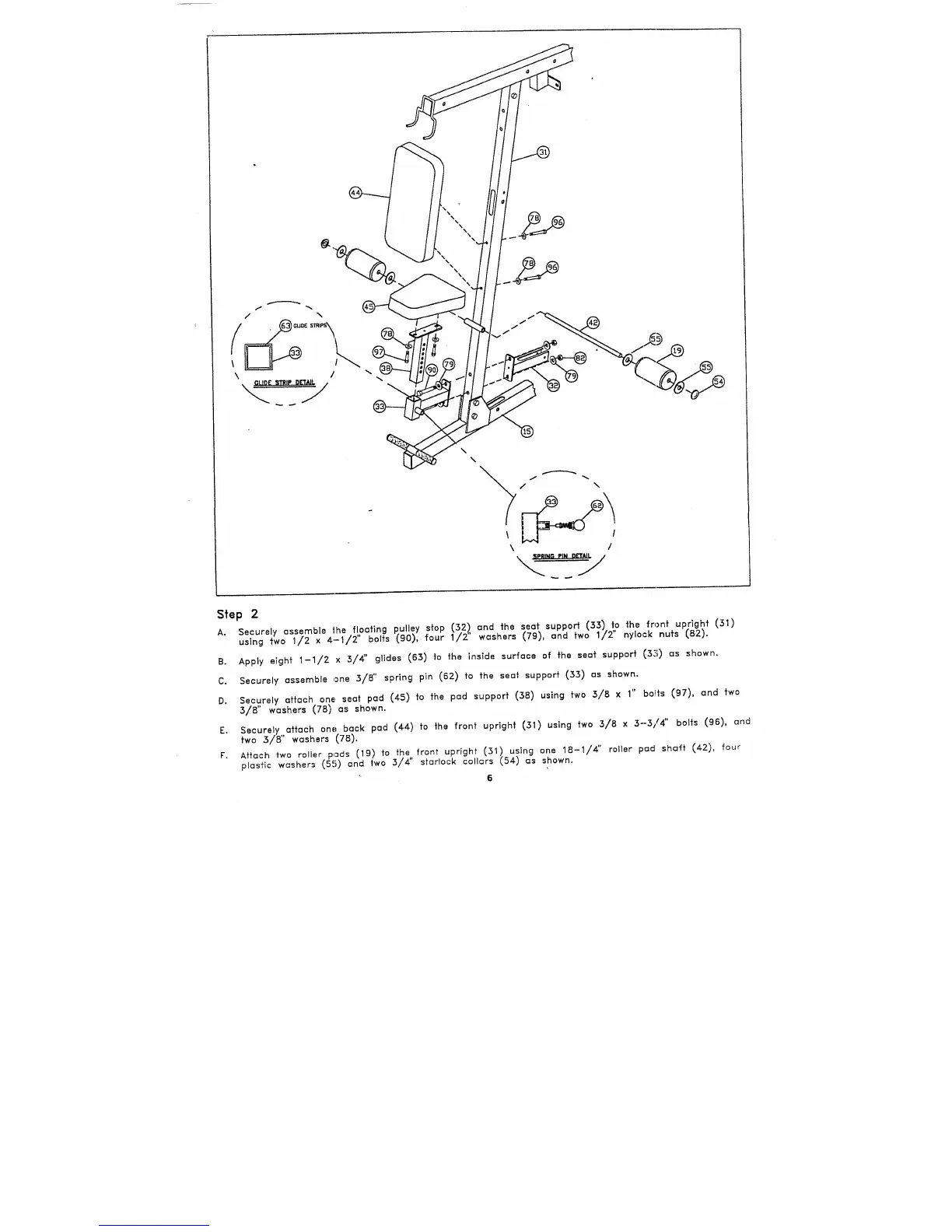

Step 2
A.
Securely assemble the floating pulley stop (:52), and the s.eat support (33) to the front upright
using two 1/2 x 4.-1/2" bolts (90), four 1/2’ washers (.79), and two 1/2" nylock nuts (B2).
B.
Apply eight 1-1/2 x 3/4" glides (63) to the inside surface of the seat support (32;) as shown.
C.
Securely assemble one 3/8" spring pin (62) to the seat support (33) os shown.
1"
D.
Securely attach one, seat pad (45) fo the pad support (38) using two 3/8 x bolts (97), and
3/8" washers (78) as shown.
E.
Securely attach one; back pad (44) to the front upright (31) using two 3/8 x 3--3/4" bolts (96),
two 3/8" washers (78).
F.
Attach two roller pads (19) to the front upright (51) using one 18-1/4" roller pad shaft (42),
="
d
3/4" sfarlock collars (54) as shown.
plastic washers (5.~) an two
6
