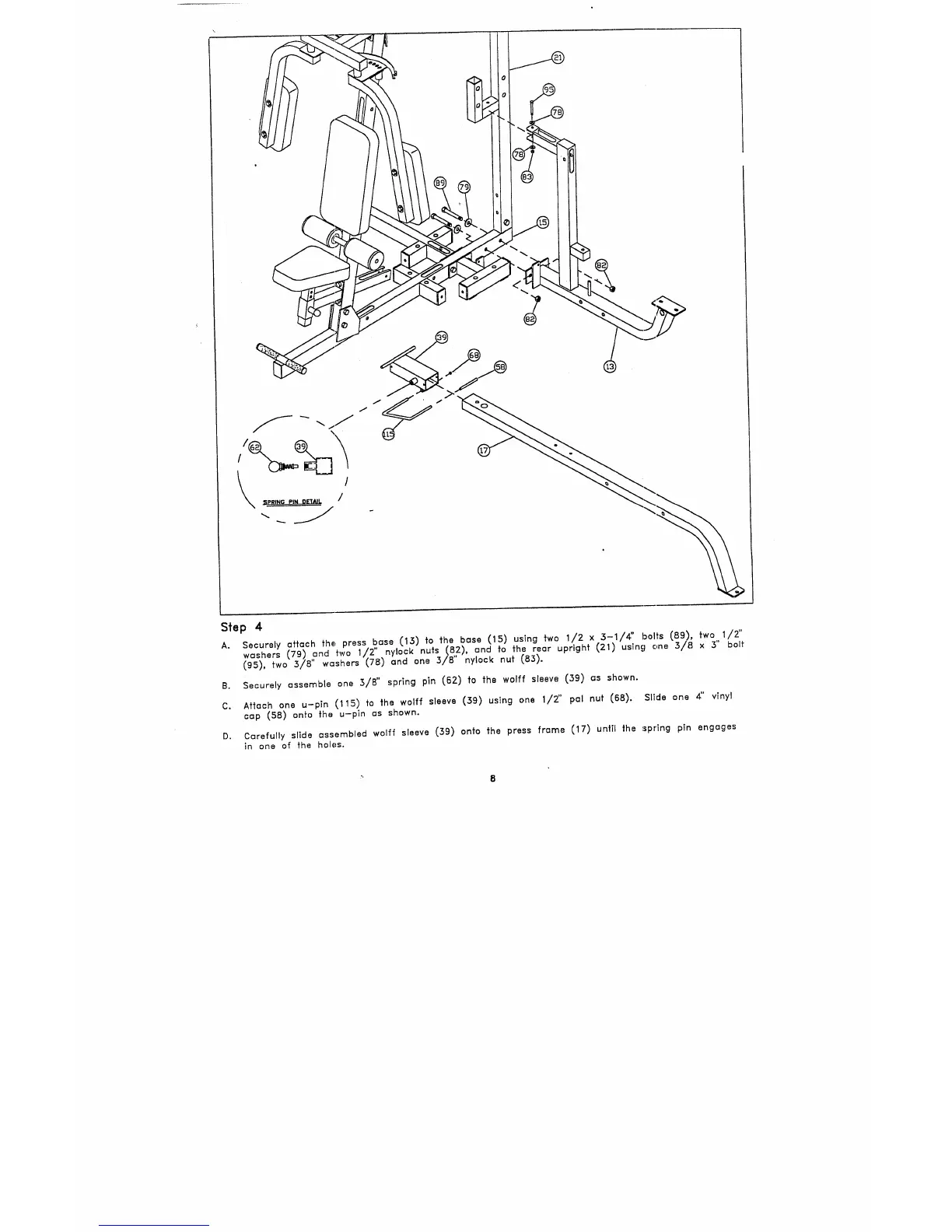

Siep 4 /2"
A.
Securely attach fh~, press base (13) fo the base (15) using two 1/2 x 3-1/4" bolts (89),
washers (79) ,~nd two 1/.2".nylock nuts .(8,2), and fo the rear upright (21) using one 3/8 x 3"
(95), two 3/8’ washers (,78) and one 3/8’ nylock
B.
Securely assemble one :~/B" spring pin (62) to the wolff sleeve (39) as shown.
C.
Aftc~ch one u-pin (115) to the wolff sleeve (39) using one 1/2" pal nut (68). Slide
vinyl
cap (58) onto the u-pin as shown.
D.
Cc~refully slide assembled wolff sleeve (39) onto the press frc~me (17) until the spring pin engages
in one of the holes.
