ParaBody cm3 - Step 1: Base and Upright Assembly

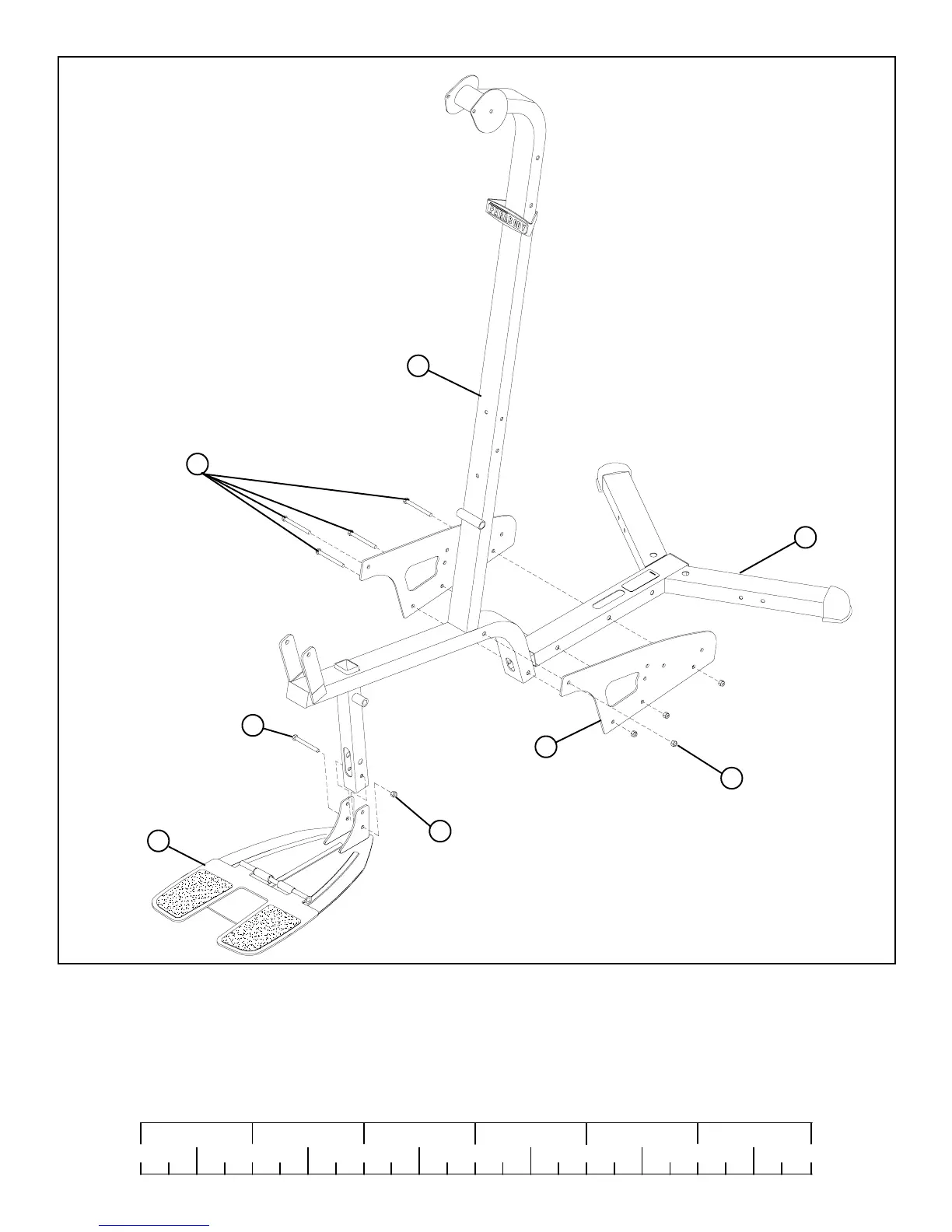

FIGURE 1
6
STEP 1:
• LOOSELY assemble two BASE PLATES (11) to the BASE (1) and the UPRIGHT (2) using four 3/8 X 3-3/4” BOLTS (57) and four
3/8” LOCK NUTS (63). See FIGURE 1.
2
63
1
11
0
1
2
345
6
1/2 1/2 1/2 1/2 1/2 1/2
57 3/8 X 3-3/4”
66
3/8 X 3” 67
63
• LOOSELY assemble the FOOTPLATE (66) to the FRAME (2) using one 3/8 X 3” BOLT (67) and one 3/8” LOCK NUT (63) as
shown in FIGURE 1.
