Paradigm T561 - Running Belt and Deck Maintenance

HS Consumer Treadmill
How To… Replace The Running Belt and Deck
Tools Required: Allen key set, Phillips screwdriver, tape measure, rubber hammer, and open end wrench set. (All
fasteners are metric. Make sure that you have metric tools.)
Section 3
2
REMOVAL AND INSTALLATION
1 At the power switch, turn off the unit,
and then unplug the power cord at
the wall outlet.

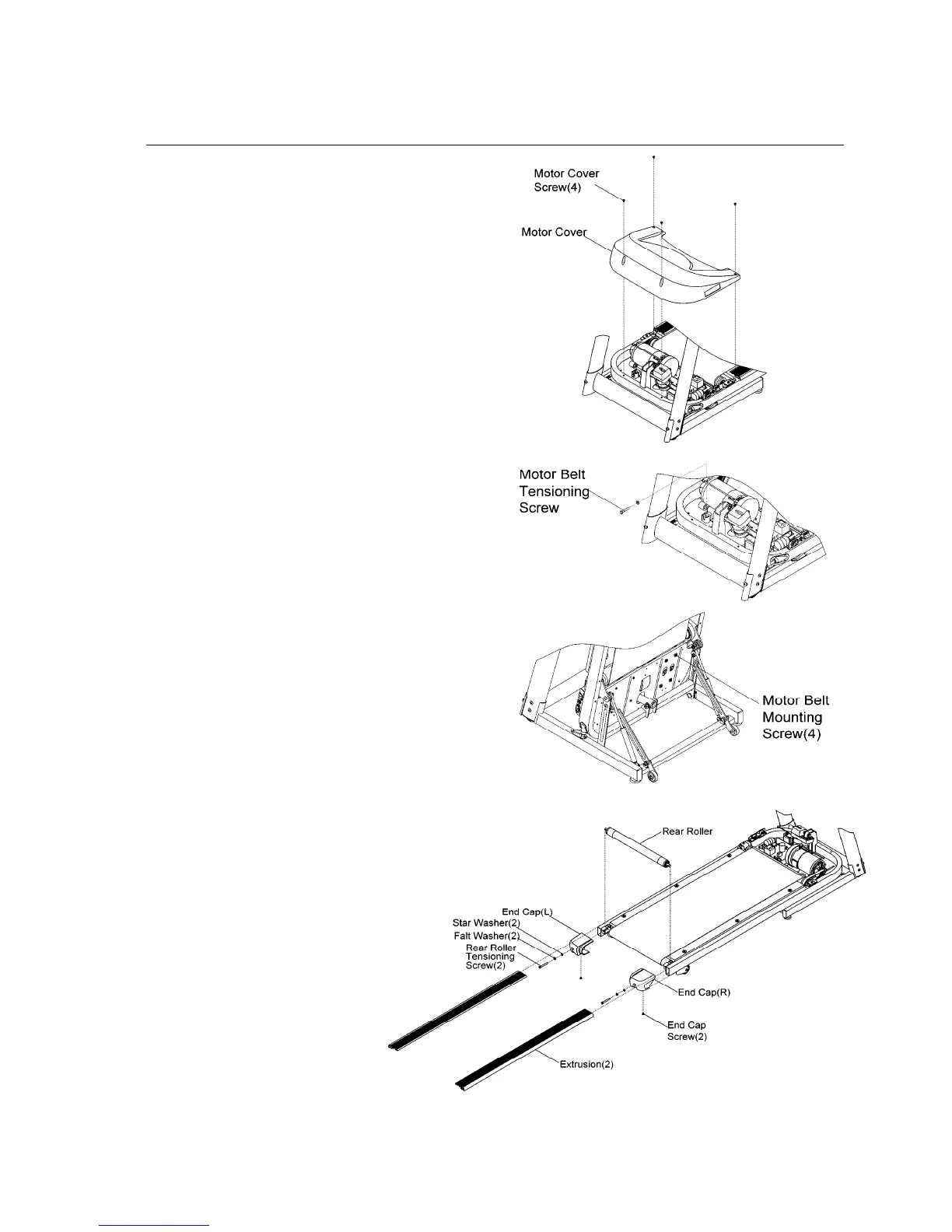

2 Remove the motor cover front
screws(4), lift off the motor cover.
3 Loosen the motor belt tensioning
screws(1). Fold the treadmill, loosen
the four mounting screws(4) securing
the motor to the bottom of the frame.
NOTE: to remove front roller
easily, release motor belt via
loosen motor belt tensioning
screws(1) and the four mounting
screws(4).
4 Remove the end caps by removing
end cap screws(2)
5 Remove the gas shocks by removing
gas shock nuts(6) , screws(2) ,long
screw(2), flat washers(2) from each
other.
CAUTION: for safety reasons,
remove gas shocks to avoid injury
when lifting off the deck. Without
the weight of deck, gas shocks
will spring up and create safety
concern.
