HS Consumer Treadmill
How To…Replace The Deck Cushion
Tools Required: Allen key set, Phillips screwdriver, and rubber hammer. (All fasteners are metric. Make sure that you
have metric tools.) ……………………………………………………………………………………..
Section 3
10
REMOVAL AND INSTALLATION

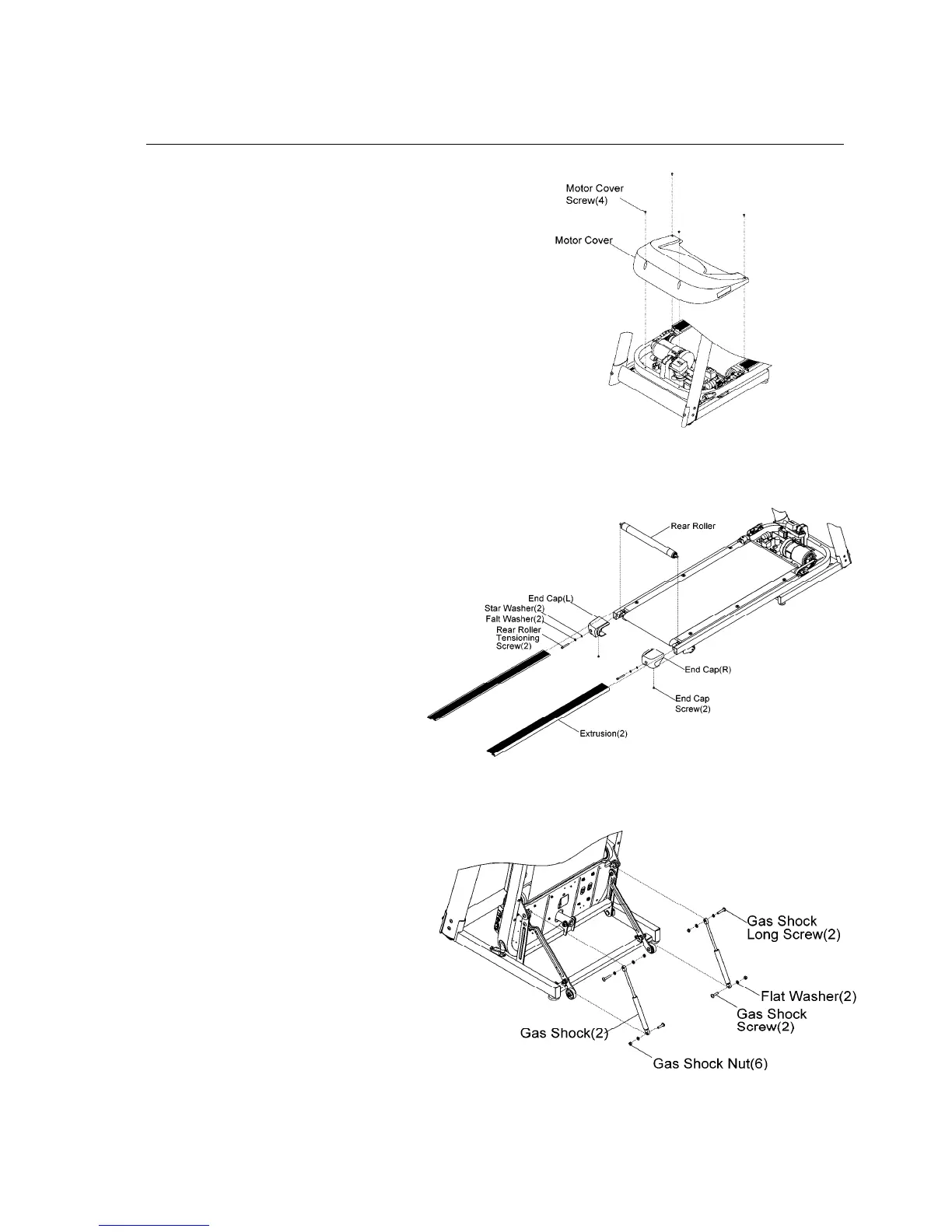

1. At the power switch, turn off the unit,
then unplug the power cord at the wall
outlet.
2. move the motor cover front screws(4)
of the motor cover, lift off the motor
cover.
3. Fold the treadmill. Remove the end
caps by removing end cap screws(2).
4. Remove the gas shocks by removing
gas shock nuts(6), screws(2), long
screws(2),flat washers(2) from each
other.
CAUTION: for safety reasons, remove
gas shocks to avoid injury when lifting
off the deck. Without the weight of
the deck, gas shocks will spring up
and create safety concern.
5. Unfold the treadmill. Remove the rear
roller tensioning screws(1), flat
washers(2) and star washers(2).
To Next Page
