Paradox PCS200 User Manual

Page 14
Installation
Antenna Installation
The PCS200 antenna connects to the antenna cable connector located on the
PCS200 PCB board. The antenna cable’s connector is located on the outside,
top-part of the PCS200 Communicator Module.
To Connect the Antenna:
1) Position the antenna onto the antenna connector.
2) Screw the antenna securely into place.

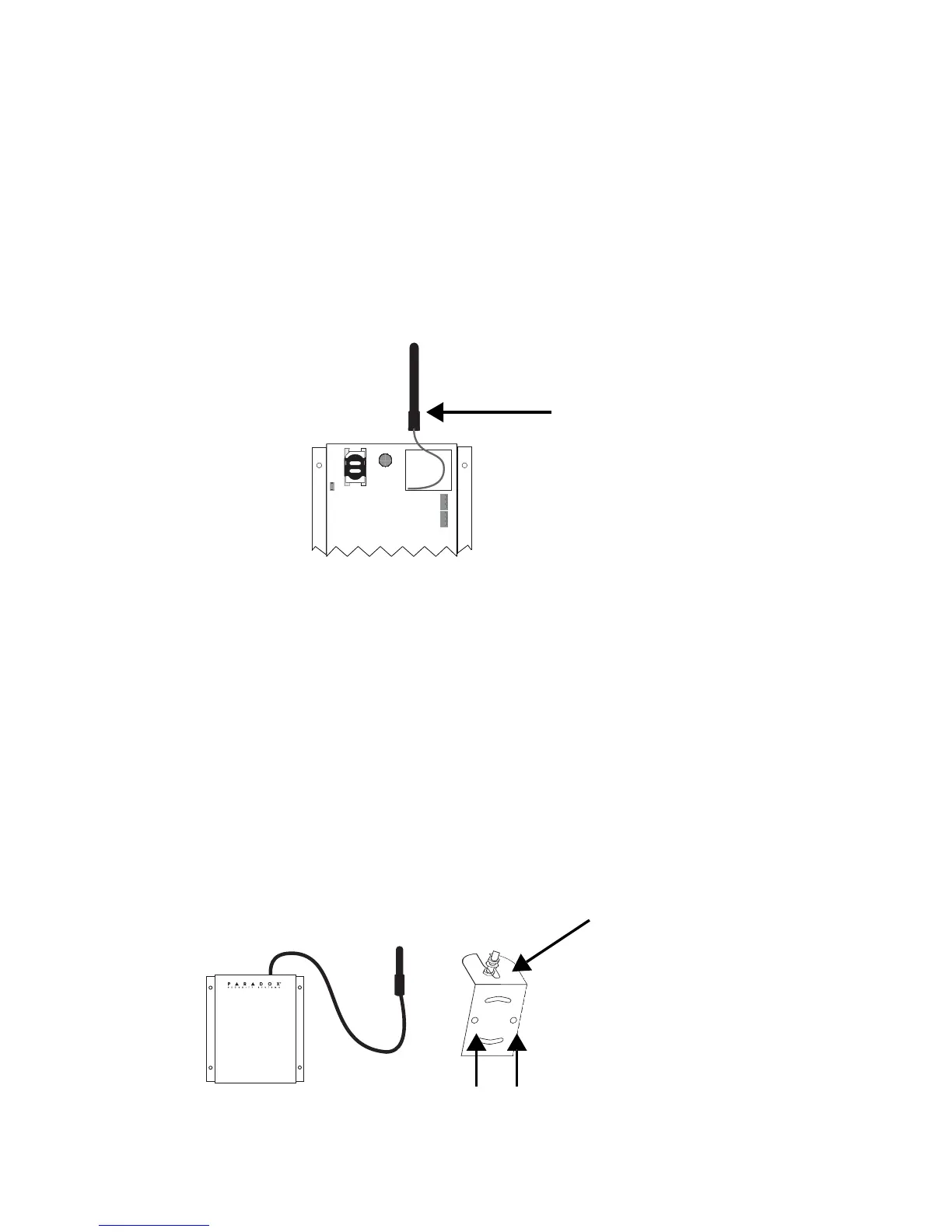

Figure 4
Antenna Extension Installation (Optional)
Antenna extensions are available to improve reception by moving the
antenna. The antenna extension is sold with a wall-mounting bracket.
To Install the Antenna Extension:
1) Use the mounting bracket to mark the holes onto the mounting surface.
2) Drill the holes and insert the antenna extension in the bracket until it
snaps into place.
3) Align the bracket and secure into place using the appropriate mounting
hardware.
Figure 5
The antenna cable
connector is outside the
metal box
Mounting Bracket
Screw Holes
