Paradox Spectra SP4000 Reference & Installation Manual

Magellan / Spectra SP 13
2.18 Advanced Technology Zone (ATZ) Connections
The ATZ feature is a software oriented feature that enables two detection devices to be installed per hardwired input terminal.
Each detection device has its own zone, displays its zone status on the keypad and sends its own alarm codes. Fire zones
cannot be doubled.

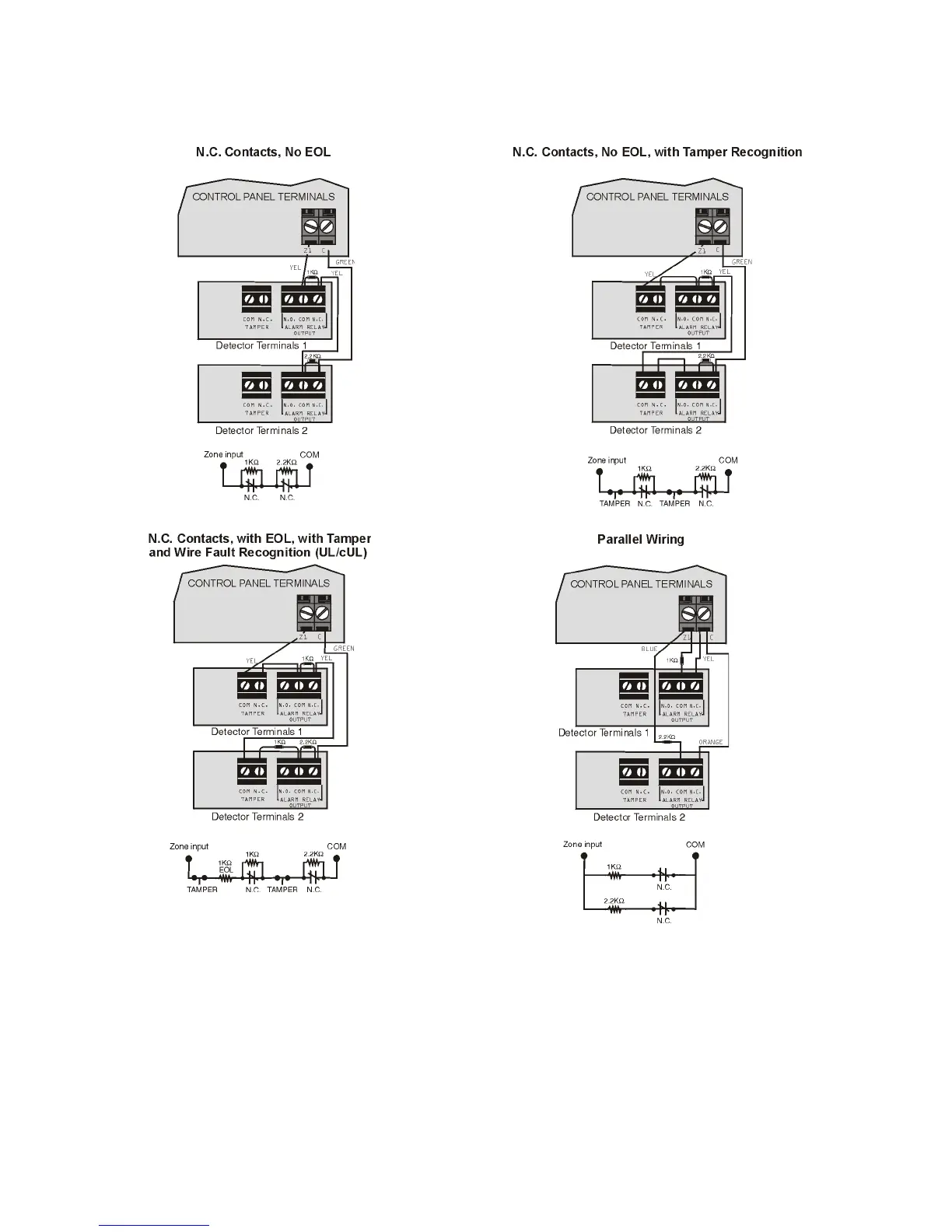

Figure 4: Advanced Technology Zone Connections

Paradox Spectra SP4000 Specifications

General

Partitions	2
User Codes	32
Event Buffer	256 events
StayD Mode	Yes
Expandable via Expansion Modules	Yes
Bus	Yes, 4-wire expansion bus
Battery Backup	12V 7Ah
PGM Outputs	2
