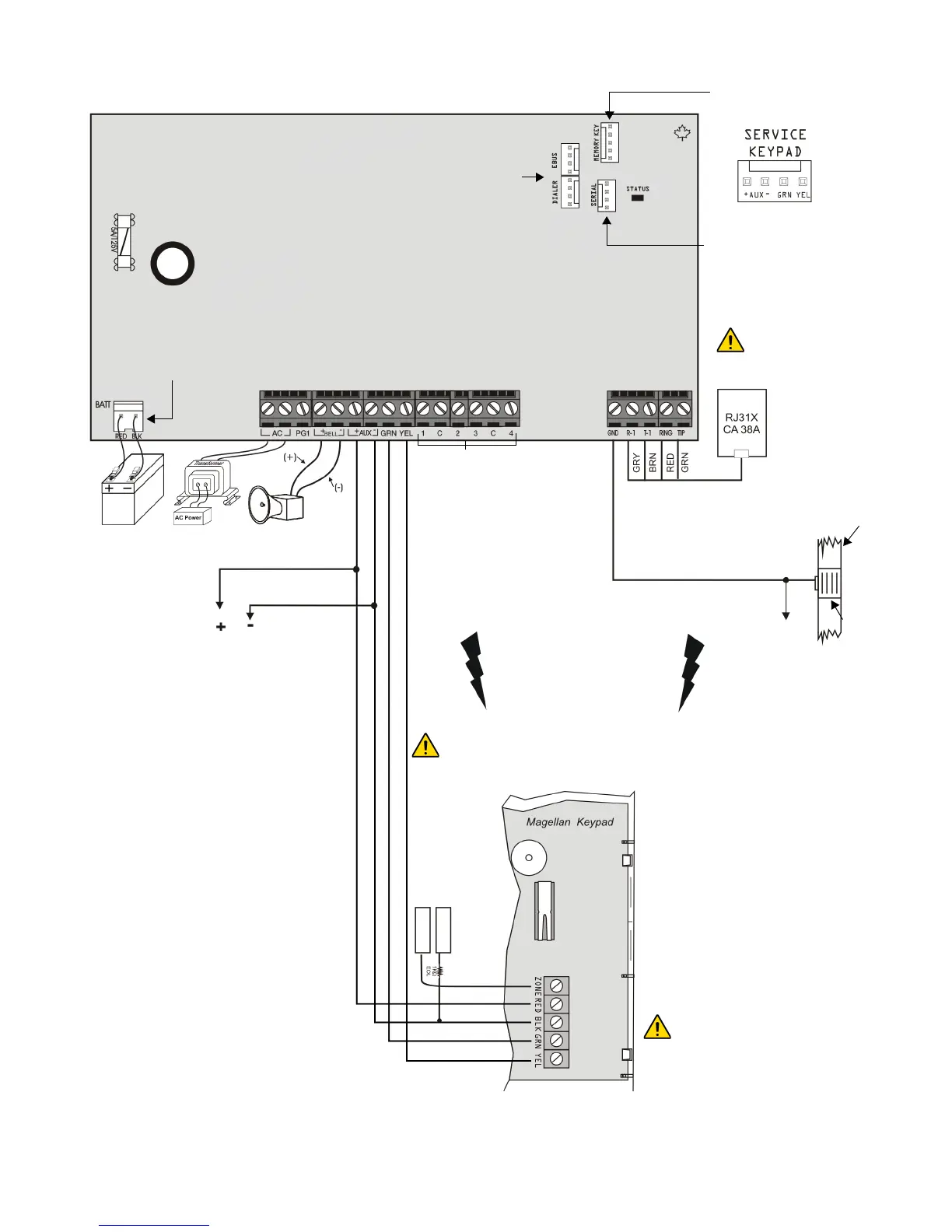

Four pin connector can be used
for quick installation of a SP4000
keypad.
Used for In-Field Firmware
upgrade through a 307USB Direct
Connect Interface. See Connecting
to WinLoad on page 59 for details.
Paradox Memory Key
(PMC-4, PMC5)
Refer to AC Power
& Backup Battery
Connections on
page 2.
The "
BELL" output will
shutdown if the current
exceeds 3A.
AUX Power
Refer to transformer requirements on page 2 for
Aux. Power Output. To connect additional wiring to
auxiliary power, use the red (+) and black (-)
keypad connectors. Auxiliary power will shut down
if current exceeds 1.1A. If the auxiliary output is
overloaded and is shut down, you must
disconnect all loads from the output for at least 10
seconds before reconnecting any load back to the
auxiliary output.
This equipment must be installed and
maintained by qualified service
personnel only.
For UL and C-UL warnings, refer to
the UL and C-UL Warnings section at
the back of the Reference &
Installation Manual.
Disconnect telephone
line before servicing.
Ground
clamp
Cold water
pipe
ground
For the keypad’s zone
configurations, refer to the
Installer Quick Menu. If EOL
is enabled: see section [706]
option [2]. Also refer to Keypad
Zone Connections on page 12.
Refer to
Single Zone
Inputs
on page 12
EBUS and Dialer used for
VDMP3 plug-in voice module
for voice reporting.
To provide maximum lightning
protection we strongly recommend
having separate earth connections
for the dialer and zone ground
terminals.
Max. amount of keypads = 15 keypads
Max. current = 700 mA
Max. distance of keypad from panel = 76m (250 feet)
Max. total run of wire = 230m (750 feet)
To metallic
enclosure
AWG#14 single
conductor solid
copper wire
