3.2.3 Data Display Mode (except K32LCD and K32LCD+)
In the Data Display Mode you can view the programmed contents of each section one digit at a time.

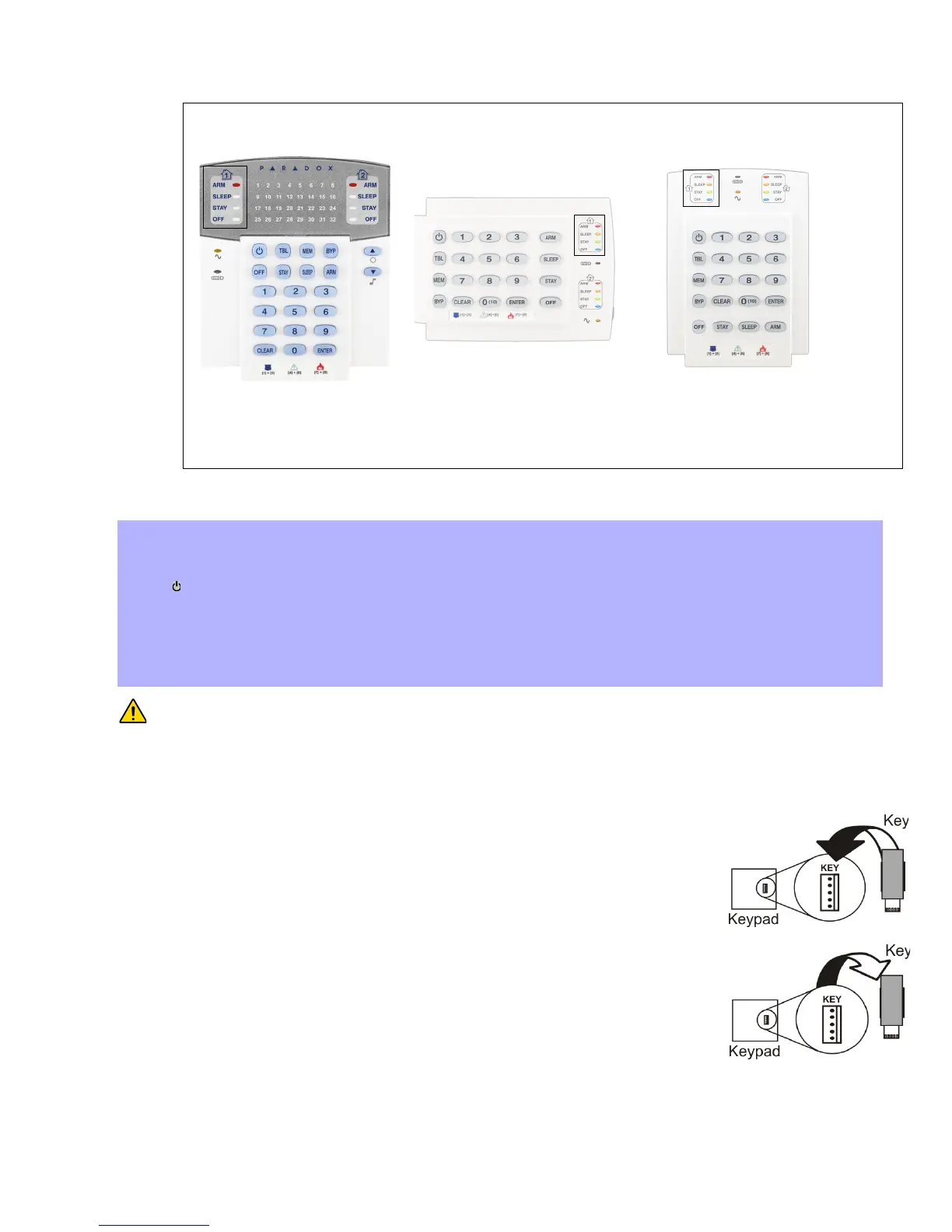

Figure 6: Data Display Mode
3.3 Configuring the Keypad Zone Number
PLEASE NOTE: After five minutes, the keypad exits programming mode.
3.4 Programming Using A Paradox Memory Key*
Copy the sections of one control panel into the Paradox Memory Key (PMC-4/PMC5). Then copy the contents of the Memory Key
into as many control panels as needed. Each panel is programmed in less than 3 seconds.
Download to DESTINATION Control Panel or module
1) Remove AC and battery power from the control panel.
2) Place the Memory Key on the serial connector labeled
MEMORY KEY of the Control Panel that
is to receive the contents of the Memory Key.
3) Reapply AC and battery power.
4) In Installer Programming Mode, enter section [970], the keypad emits a confirmation beep.
5) When the keypad emits a second confirmation beep, remove the Memory Key.
Copy to Memory Key from SOURCE Control Panel or module
1) Remove AC and battery power from the control panel.
2) Place Memory Key on the serial connector labeled MEMORY KEY of the Control Panel that you
want to copy. Make sure the write protect jumper of the Memory Key is on.
3) Reapply AC and battery power.
4) In Installer Programming Mode, enter section [975]. The keypad emits a confirmation beep.
5) After the keypad emits a second confirmation beep, remove the Memory Key. Remove the
Memory Key’s jumper if you do not wish to accidentally overwrite its contents.
* Not investigated by UL
How Do I Configure The Keypad?
Press [ENTER]
Enter your [INSTALLER CODE] (default: 0000 / 000000) or [MAINTENANCE CODE] (empty by default)
Press [] and hold for three seconds
Enter the desired zone number key (K32/K32+, K32LCD/K32LCD+: 2-digit entry 01 to 32, K10V/H: 1-digit entry 1 to
0(10))
Press [
ENTER] to save and exit programming mode
Press [CLEAR] to erase data without saving
Press [CLEAR]+[CLEAR] to exit programming mode without saving
To access the Data Display Mode, press the [ENTER] key after entering a section and before entering any data. The four LEDs
as indicated below will begin to flash indicating that you are in the Data Display Mode.
Each time the
[ENTER] key is pressed, the keypad will display the next digit in the current section and will continue through
all the following sections one digit at a time without changing the programmed values. Not available for sections using the
Multiple Feature Select Method. Press the
[CLEAR] key at any time to exit the Data Display Mode.

Paradox Spectra SP4000 Specifications

General

Partitions	2
User Codes	32
Event Buffer	256 events
StayD Mode	Yes
Expandable via Expansion Modules	Yes
Bus	Yes, 4-wire expansion bus
Battery Backup	12V 7Ah
PGM Outputs	2
