Chapter 3: Assemble and Test Your Boe-Bot · Page 95

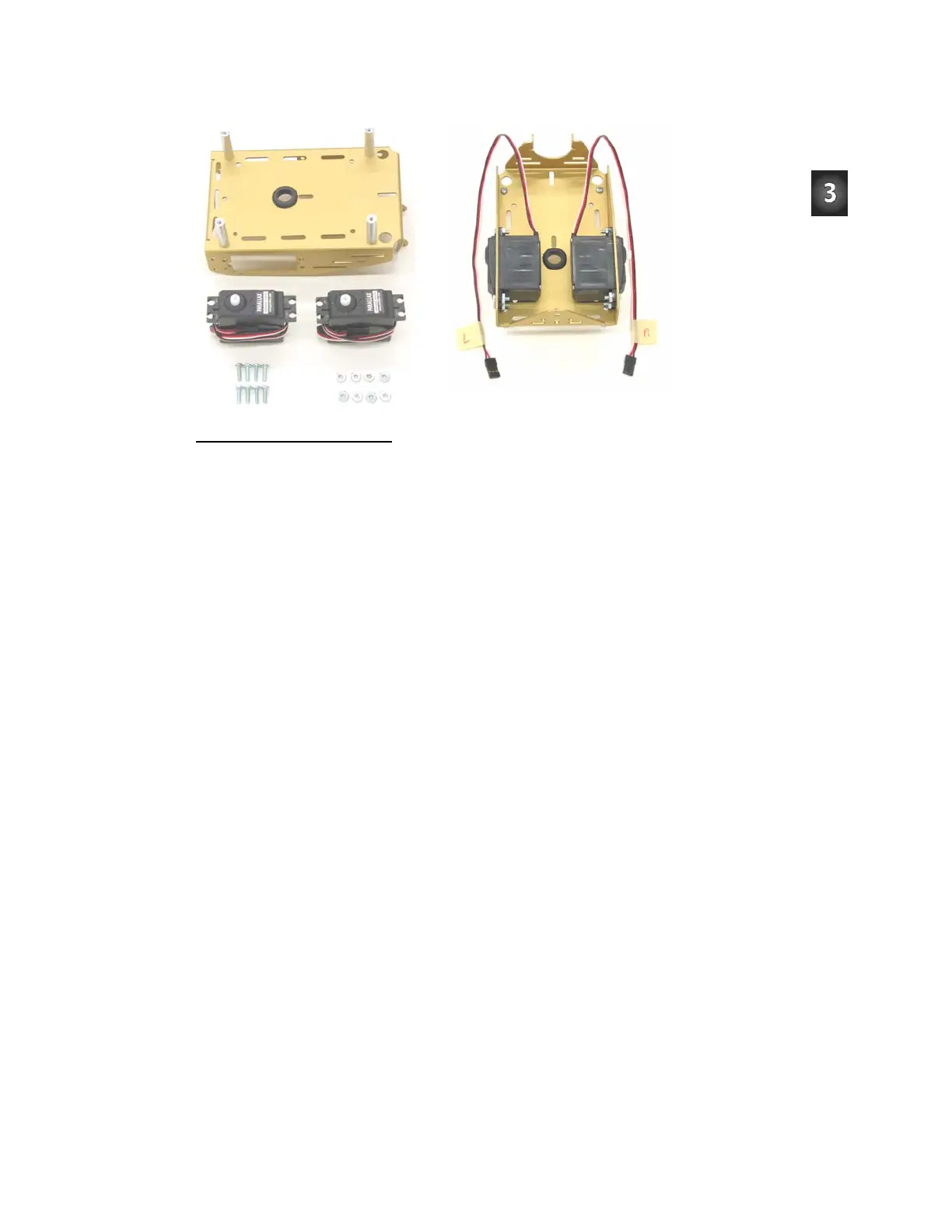

Figure 3-4
Mounting the
Servos on the
Chassis
Parts (left);
assembled
(right).
Mounting the Battery Pack
Figure 3-5 shows two different sets of parts. Use the parts on the left if you have a Board
of Education, and the parts on the right if you have a HomeWork Board.
Parts List for Boe-Bot with a
Board of Education Rev C:
See Figure 3-5 (left side).
(1) Boe-Bot chassis (partially
assembled)
(2) Flat head Phillips screws,
3/8″ 4-40
(2) Nuts, 4-40
(1) Battery pack with center
positive plug
Parts List for Boe-Bot with a
HomeWork Board:
See Figure 3-5 (right side).
(1) Boe-Bot chassis (partially
assembled)
(2) Flat head Phillips screws, 3/8″
4-40
(2) Nuts, 4-40
(1) Battery pack with tinned leads
