Page 170 · Robotics with the Boe-Bot

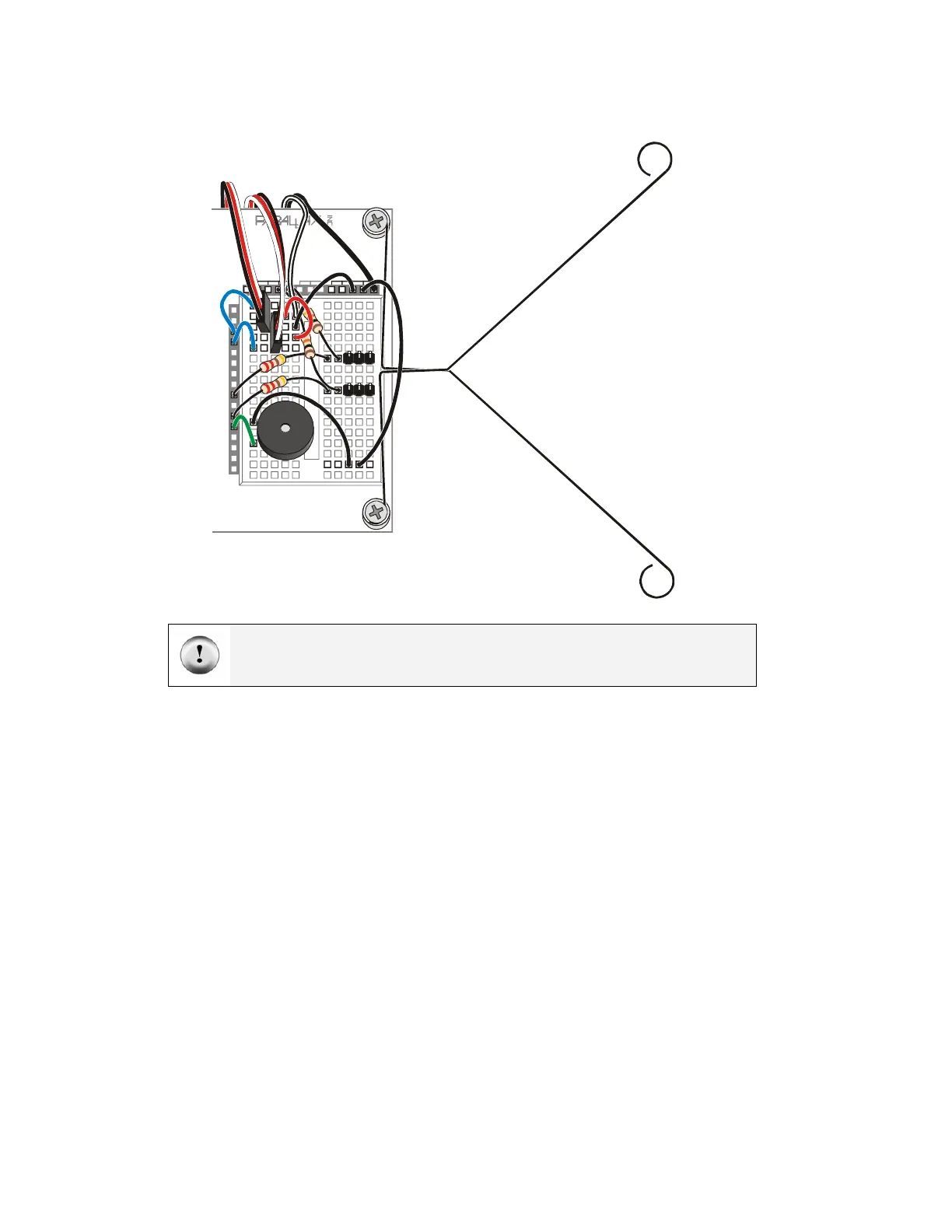

Figure 5-6: Whisker Wiring Diagram for the HomeWork Board
P15
P14
P11
P13
P12
P7
P5
P4
P10
P9
P8
P6
P3
P2
P1
P0
X2
X3
Vdd VssVin
Rev B
(916) 624-8333
www.parallax.com
www.stampsinclass.com
To S er v o s
Left
Whisker
Right
Whisker
+
HomeWork Board
Use the 220 resistors (red-red-brown-color codes) to connect P5 and P7 to their
corresponding 3-pin headers. Use the 10 k resistors (brown-black-orange color
codes) to connect Vdd to each 3-pin header.
