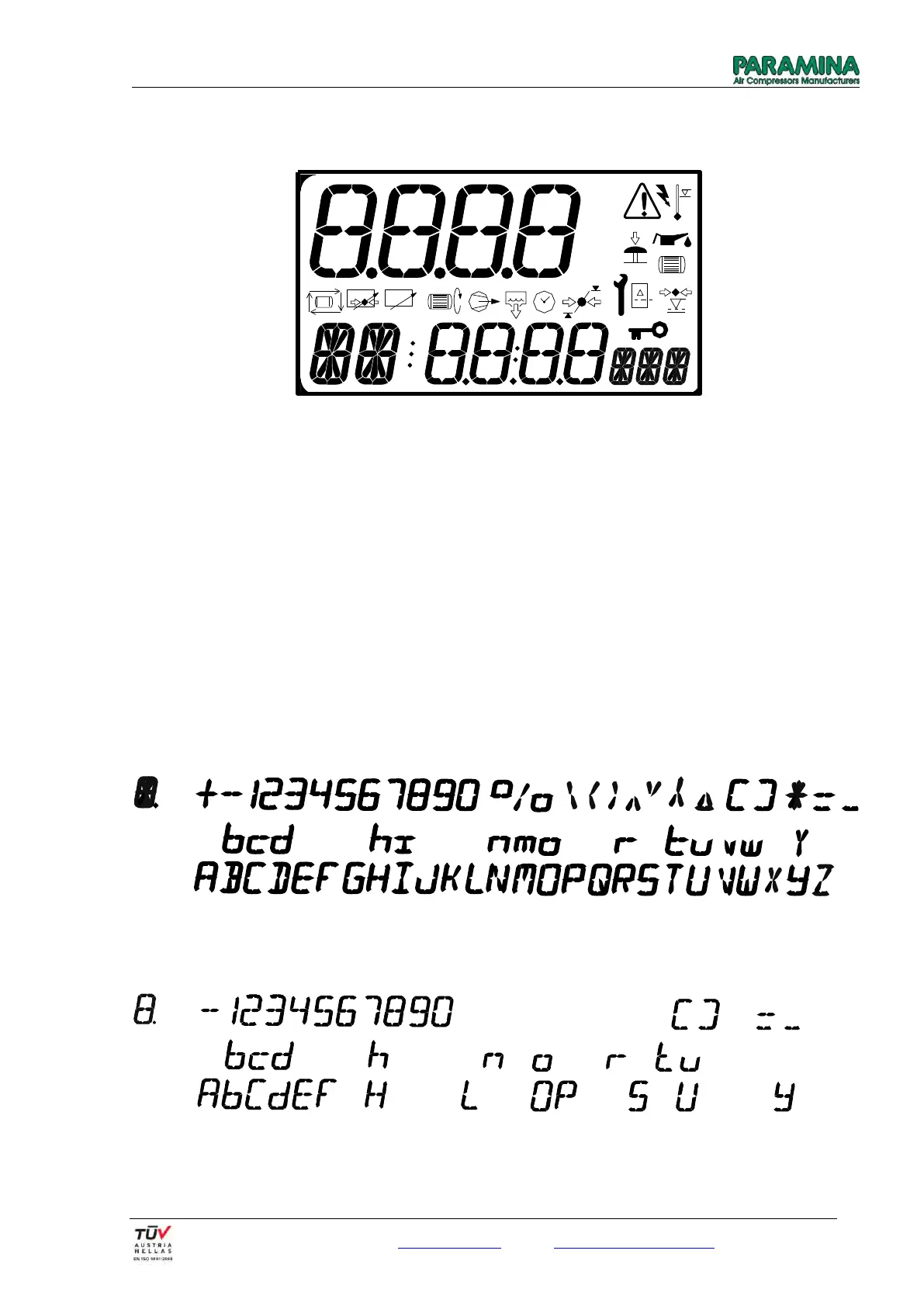

5.2.3. Display Index
The display is divided in to 4 areas.
Top, Left: Display Field:-
4-character numeric display, with unit symbols, used to continuously show delivery pressure in
normal operating mode or menu page number in menu mode
Top, Right: Fault Symbol Field:-
Symbolic displays used to indicate common general fault conditions
Middle: Symbolic displays used to reinforce meaning of selected item, fault condition.
Symbolic status information in normal operational mode ‘Information Screen’ item
Bottom: Item and Value Field:-
Item identification: 2 character alphanumeric, 14 segment
Item Value: 4 character numeric, 7 segment
Item Unit: 3 character alphanumeric, 14 segment
14 Segment Display Character Set:
7 Segment Display Character Set:
