30

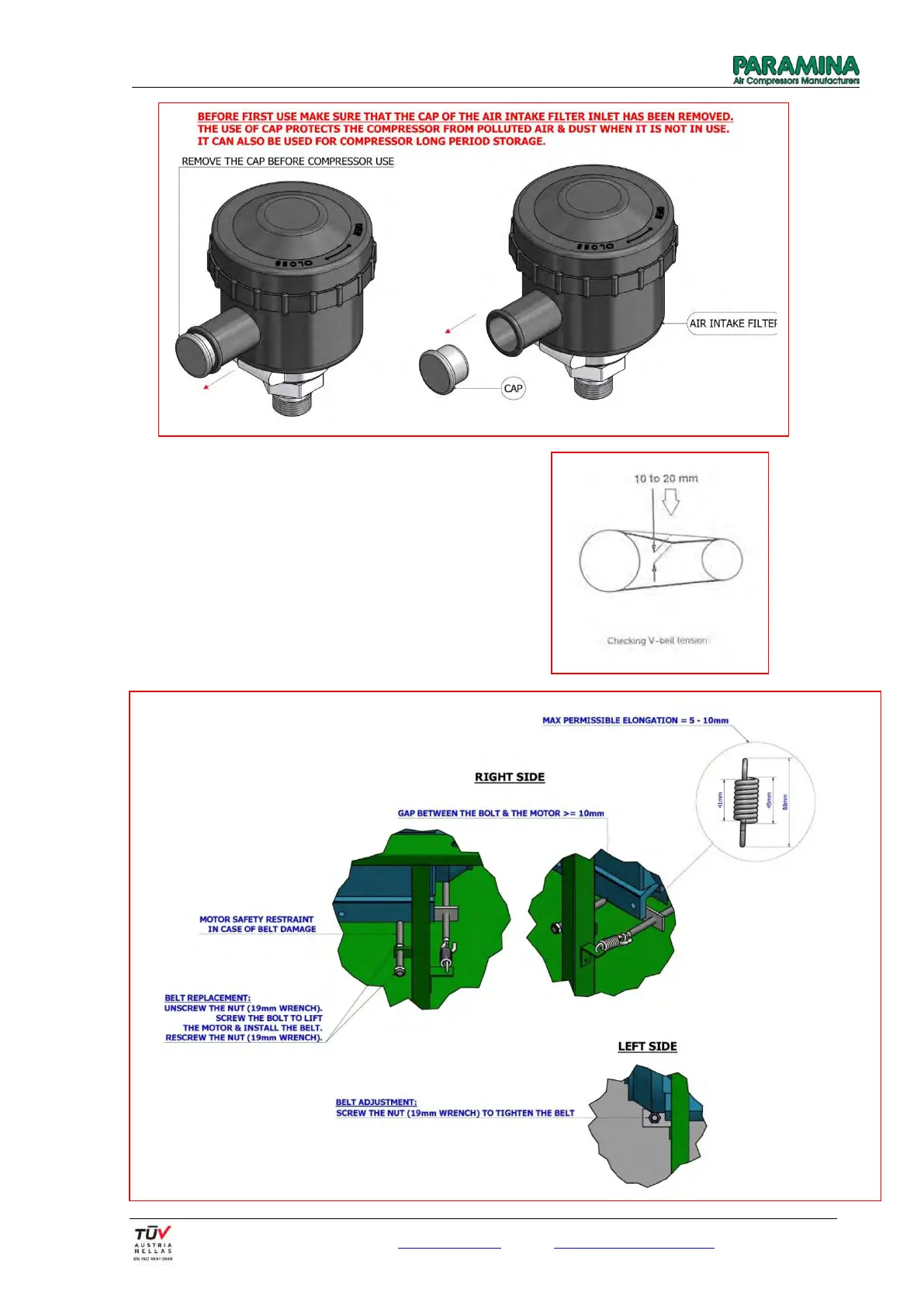

6.4. Belt adjustment
Automatic belt tensioning system.
Check tension of belts after the first 20 hours of
operation and then every 100 hours. Pressing in
the center of the belt’s length applying 5 Kg of
force, it should not give way more than 20 mm.
