21. Screw the filter head carefully by hand with light pressure until it fits evenly to the filter housing.
Do not screw really tight, while screwing cartridges or connectors inside filter’s housing.
FILTER HEAD & FILTER HOUSING SHOULD BE ADJOINED ON TOP WHEN REINSTALLING.

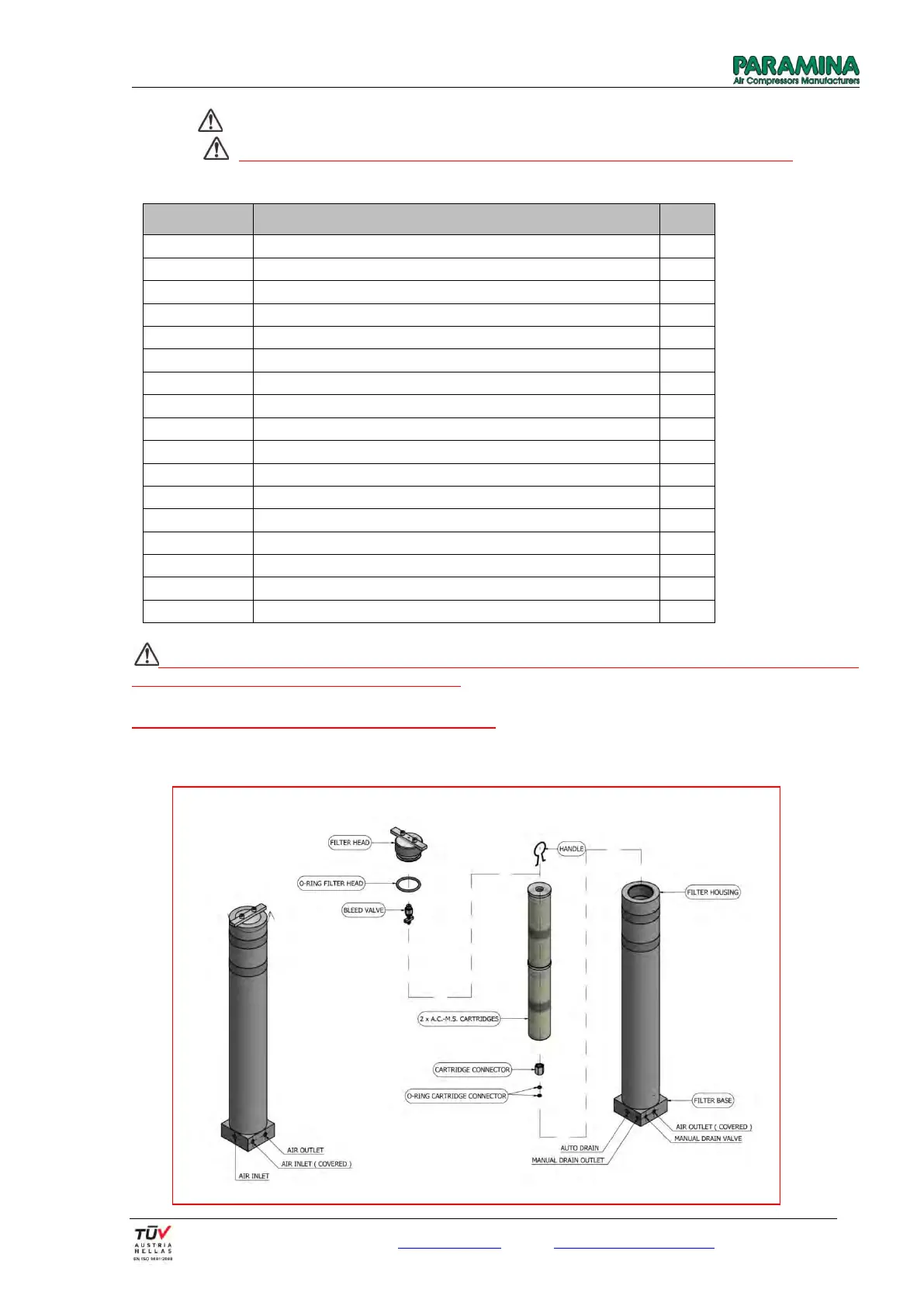

Parts & Codes
Part Nr.
Description
Qty
208611482
Filter complete
1
208620032
Filter housing Φ110x740 (480bar max – C.SIL. 420b version)
1
208620030
Filter base Φ110x740 (480bar max – C.SIL. 420b version)
1
208620012
Filter head Φ110x740 (480bar max – C.SIL. 420b version)
1
137000080
AC/MS cartridge (active carbon/molecular sieve cartridge)
2
208000072
Tube connector
1
208000031
Connector cartridge
1
208000030
Connector coalescing
1
137800000
Coalescing pre-filter Cover
1
306049631
Coalescing cartridge
1
133000182
Spring
1
133000092
Handle
1
127052332
O-ring c.c. (connector cartridge)
1
127566942
O-ring f.h. (filter head) and base
2
208970942*
Back-up o-ring f.h. (filter head) and base
2
190000080
Manual drain complete with seat
1
190008112
Manual drain’s seat
1
* For compressors manufactured till 31/12/2013 an additional Back up O-Ring (part number: 208970962) has
to be installed on BA Filter Φ110x495 head & base.
Option 3 (optional version from begin of 2018):
Replacement of active carbon – molecular sieve cartridge
