Parker A Series User Manual

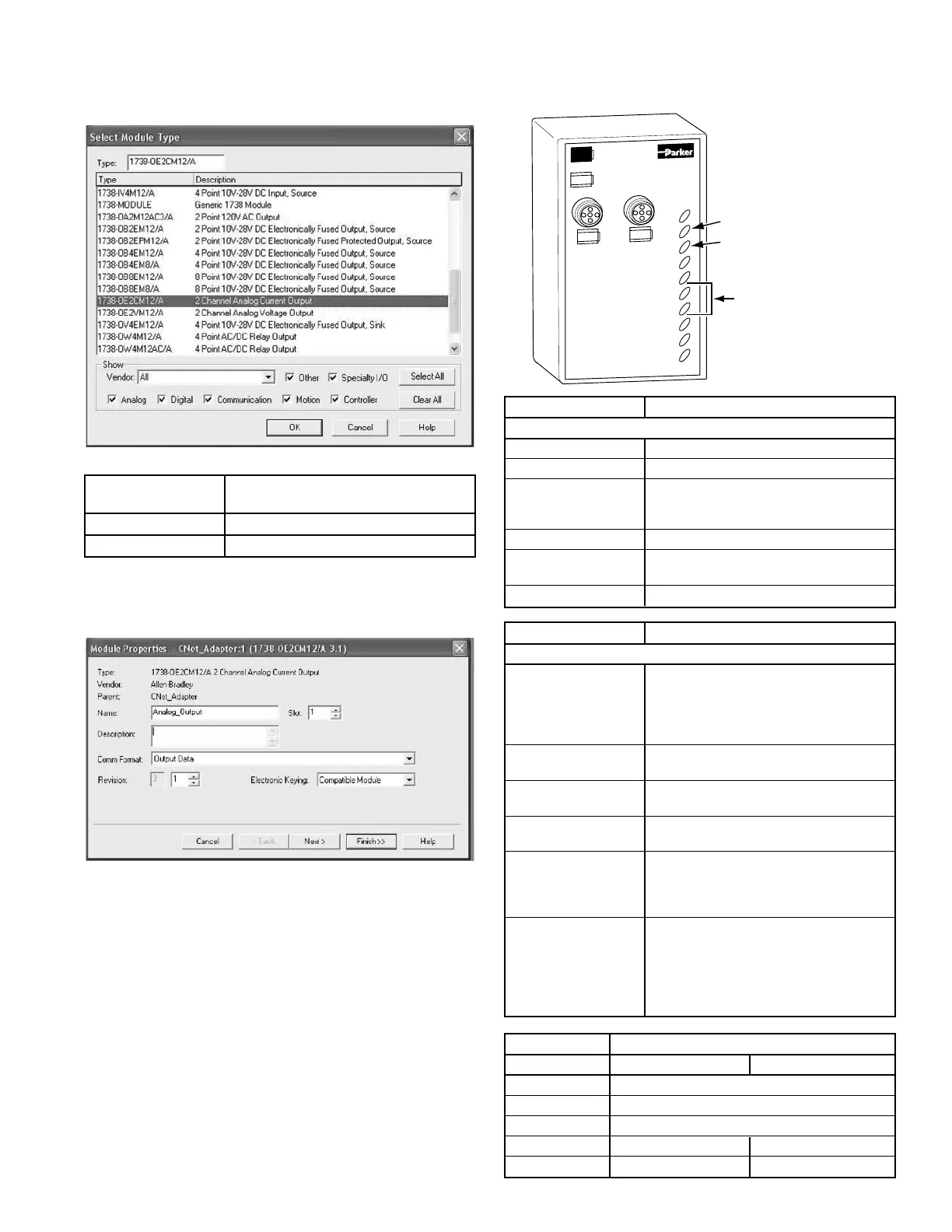

If your RSLogic 5000 is Version 13.X:
• Choose the equivalent Rockwell Automation module from the list
of modules.
Equivalent Rockwell Automation
isysNet Modules 1738 ArmorPoint Modules
PSSTACM12A 1738-OE2CM12
PSSTAVM12A 1738-OE2VM12
•
Enter a name (optional), slot number, and comm. format. Make
sure to choose Compatible Module for Electronic Keying
setting.
• Choose Next to set RPI.
• Choose
Finish. Notice that the analog output module is now
under the I/O configuration
MOD
NET
P
S
STA
CM
12A
A
nalog
C
urrent
O
ut
0
1
0
1
PSSTACM12A
I/O Status Indicators
Module Status Indicator
Network Status Indicator
isysNet 24 VDC Analog Output Modules, Series A (PSSTACM12A, PSSTAVM12A) E111P
7
Troubleshoot With the Indicators
Indication Probable Cause
Module Status
Off No power applied to device
Green Device operating normally
Flashing Green Device needs commissioning due to
missing, incomplete, or incorrect
configuration
Flashing Red Recoverable fault
Red Unrecoverable fault -
may require device replacement
Flashing Red/Green Device is in self-test
Indication Probable Cause
Network Status
Off Device is not on line:
- Device has not completed
dup_MAC-id test.
- Device not powered - check module
status indicator.
Flashing Green Device is on line but has no
connections in the established state.
Green Device is on line and has
connections in the established state.
Flashing Red One or more I/O connections in
timed-out state.
Red Critical link failure - failed
communication device. Device
detected error that prevents it from
communicating on the network.
Flashing Red/Green
Communication faulted device - the
device has detected a network access
error and is in communication faulted
state. Device has received and accepted
an Identity Communication Faulted
Request - long protocol message.
Indication Probable Cause
I/O Status PSSTAVM12A PSSTACM12A
Off Module in CAL mode
Solid Green Device operating normally
Flashing Green Channel being calibrated
Flashing Red Low or High Clamp
Open wire or no power
Solid Red No power Not used
