Parker AC20 Series Technical Manual

DOC-0017-07-EN: AC20 Series - EtherCAT Option
24 (58) DOC-0017-07-EN-B 04.04.2023
9.3 Programming using Codesys platform
The example uses Codesys V3.5 running on a PC as a soft PLC. A trial version is available to download on
the Codesys website. Prior knowledge of Codesys software is assumed.
EtherCAT ESI File Installation
• Download the AC20 EtherCAT option comms ESI file from the Parker website.

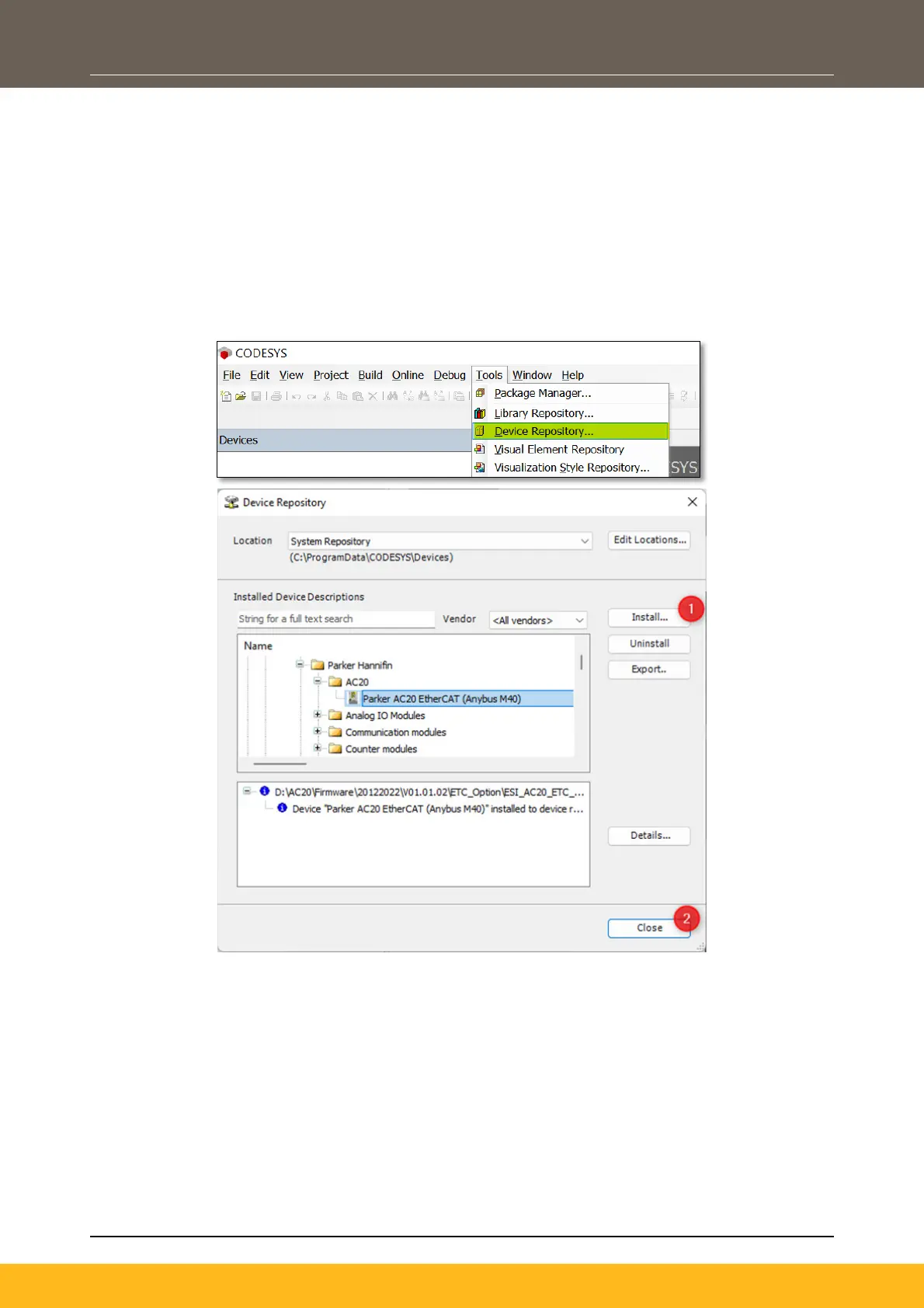

• Start Codesys and from menu select Tools > Device Repository
• From Device Repository tab, click on Install, Select AC20 XML device description file then click
Add to install device into the Codesys catalog.
