DOC-0017-07-EN: AC20 Series - EtherCAT Option
26 (58) DOC-0017-07-EN-B 04.04.2023
Set the Gateway
Double-click the Device (Codesys Control Win V3). In device tab select Communication
settings and click on Scan network to find the required node. From the Scan network pane click
the required node to make it the active path.
Note: If the node is not found, make sure the soft PLC is in “Start PLC” mode.

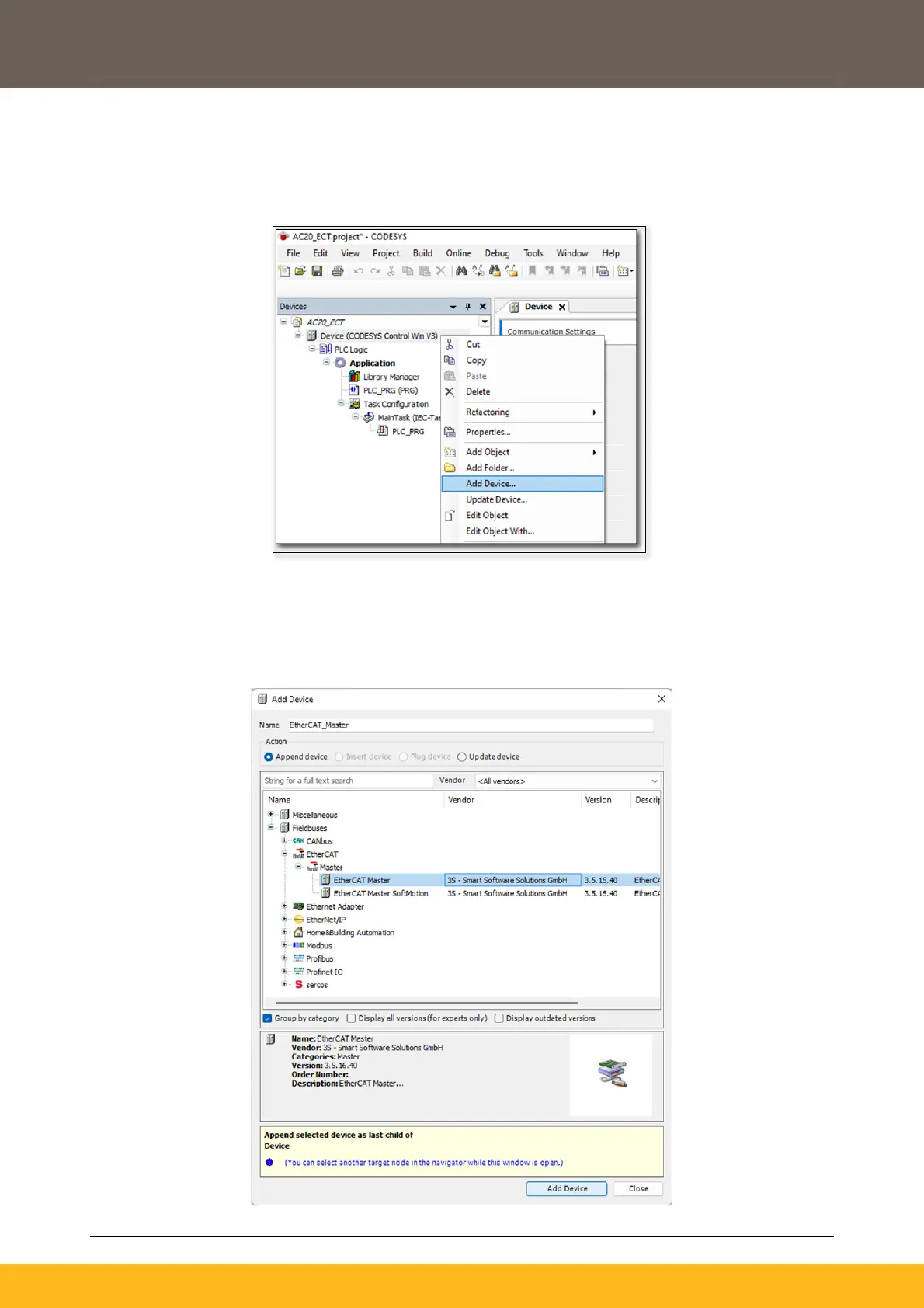

Add EtherCAT master
• Right click on Device (CoDeSys Control Win V3) open Add device Tab, select the EtherCAT
Master and click on Add Device followed by Close.
