Parker AC30 series Safety & Quickstart Booklet

English 1-11
Dynamic Braking Resistors
 The AC30 unit must be fitted with external braking resistors if braking is required.

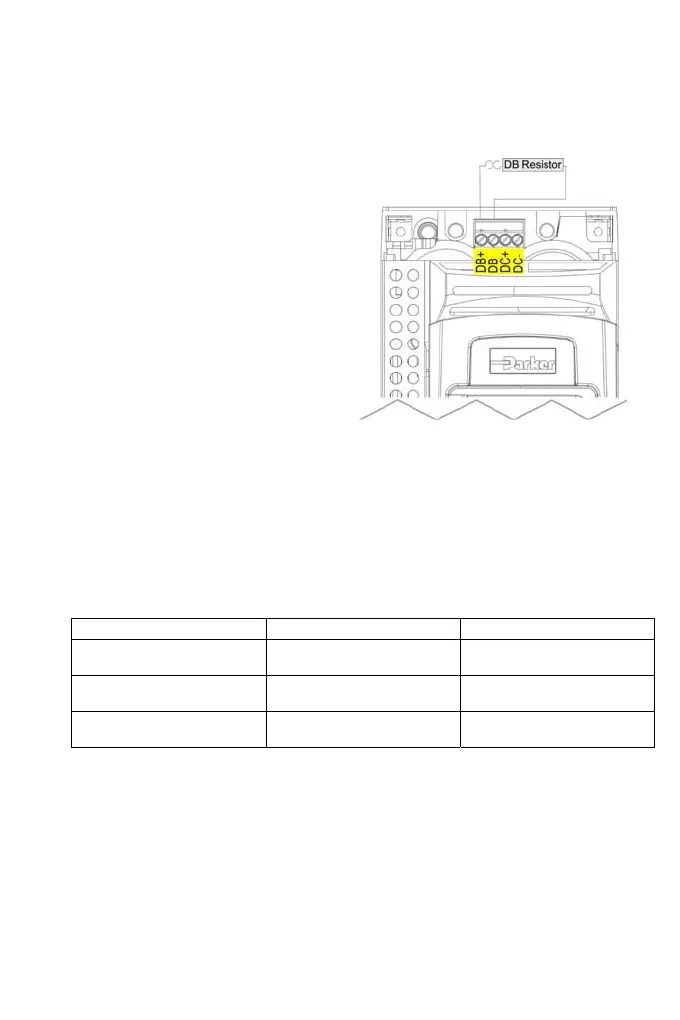

Wiring Details
WARNING
Do not apply external voltage sources (mains supply
or otherwise) to any of the braking terminals: DB+,
DB. This can lead to damage to the drive and
installation, and risk to personnel.
Frame Ratings
All Frame sizes 400v 3 phase:
Frame Normal Duty Heavy Duty
Frame D 1.1 – 5.5 kW
1.5 – 7.5 hp
0.75 – 4 kW
1 – 5 hp
Frame E 7.5 – 11 kW
10 – 15 hp
5.5 – 7.5 kW
7.5 – 10 hp
Frame F 15 – 18 kW
20 – 25 hp
11 – 15 kW
15 – 20 hp

Parker AC30 series Specifications

General

Control Modes	Closed-loop vector
Feedback	Encoder
Operating Temperature	0 to 40°C (32 to 104°F) standard, -20 to 50°C (-4 to 122°F) with derating
Protection	Overcurrent, Overvoltage, Undervoltage
Communication	RS485
