Parker D Series - Valve Identification and Features; Valve Driver Characteristics

Pilot Operated Prop. DC Valve with VCD
®
Series D*1FP/FE Explosion Proof
Operation Manual
7
Parker Hannifin Corporation
MSG11-5715-718 D_1FP IECEX UK.indd 19.12.19
Characteristics of valve driver
The integral electronic driver combines all func-
tions for optimal operation of the valve. Thanks
to its excellent dynamics, the valve is deployable
within closed loop control applications. The most
important features are:
• high dynamic actuator with specially designed
electronic driver
• closed loop controlled spool position
• constant current actuator control with overcur-
rent shutoff
• excellent properties for response sensitivity and
temperature drift
• differential input stage with various command
signal options
• diagnostic output for spool stroke / overcurrent
state
• meets relevant European EMC-standards

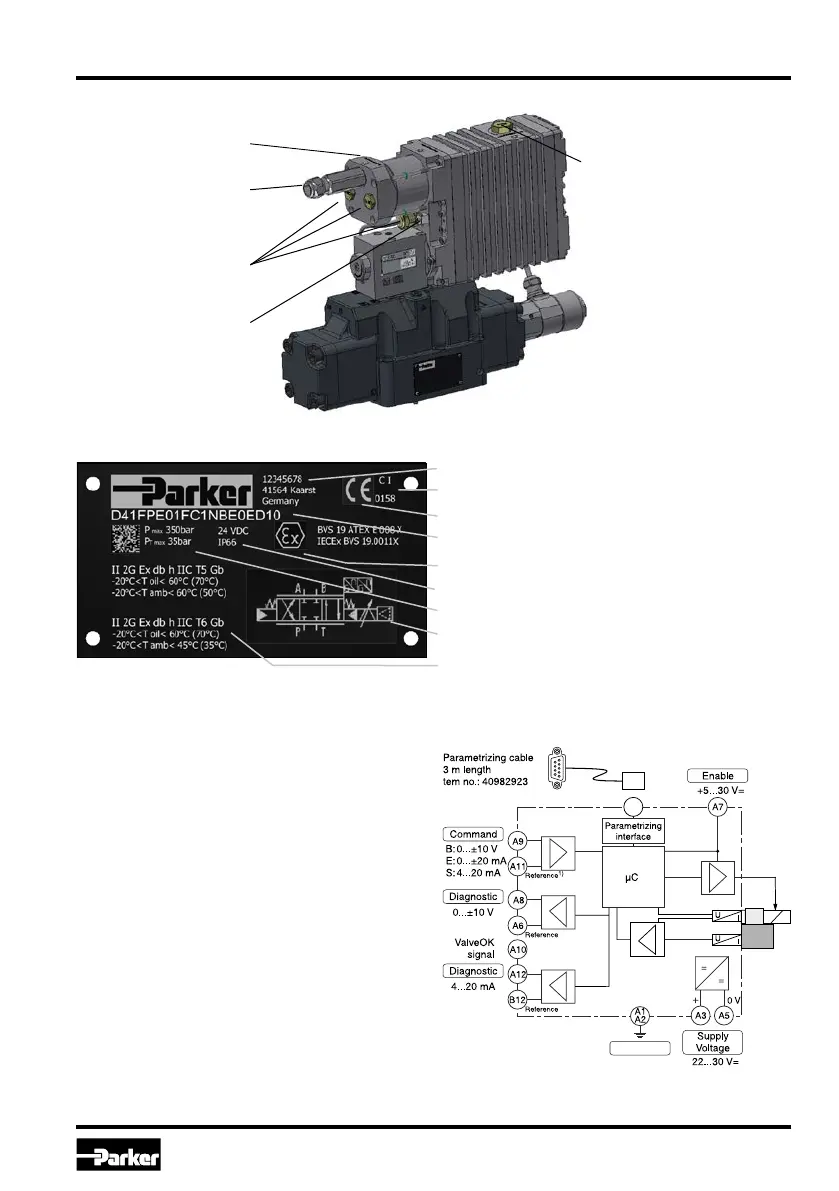

Name plate
Block diagram of onboard electronics
1)
Do not connect with supply voltage zero.
PE
D*1FP*ED
Screwed cable glands
Screw plugs for unused
screwed cable gland
holes M16x1.5 or
M20x1.5
PE terminal connection
Connector cap
Screw plug
parametrizing interface,
M20x1.5 mm
Manufacturer’s logo and address
Code for year and month of manufacture
CE mark
Entire name
Ex protection symbol
Protection class, supply voltage
Hydraulic data
Hydraulic symbol
Explosion protection class of complete valve to
European Directive 2014/34/EU
