Parker DC590PR Series - Converting to Remote Control; Speed Demand (Uni-directional); Start;Run

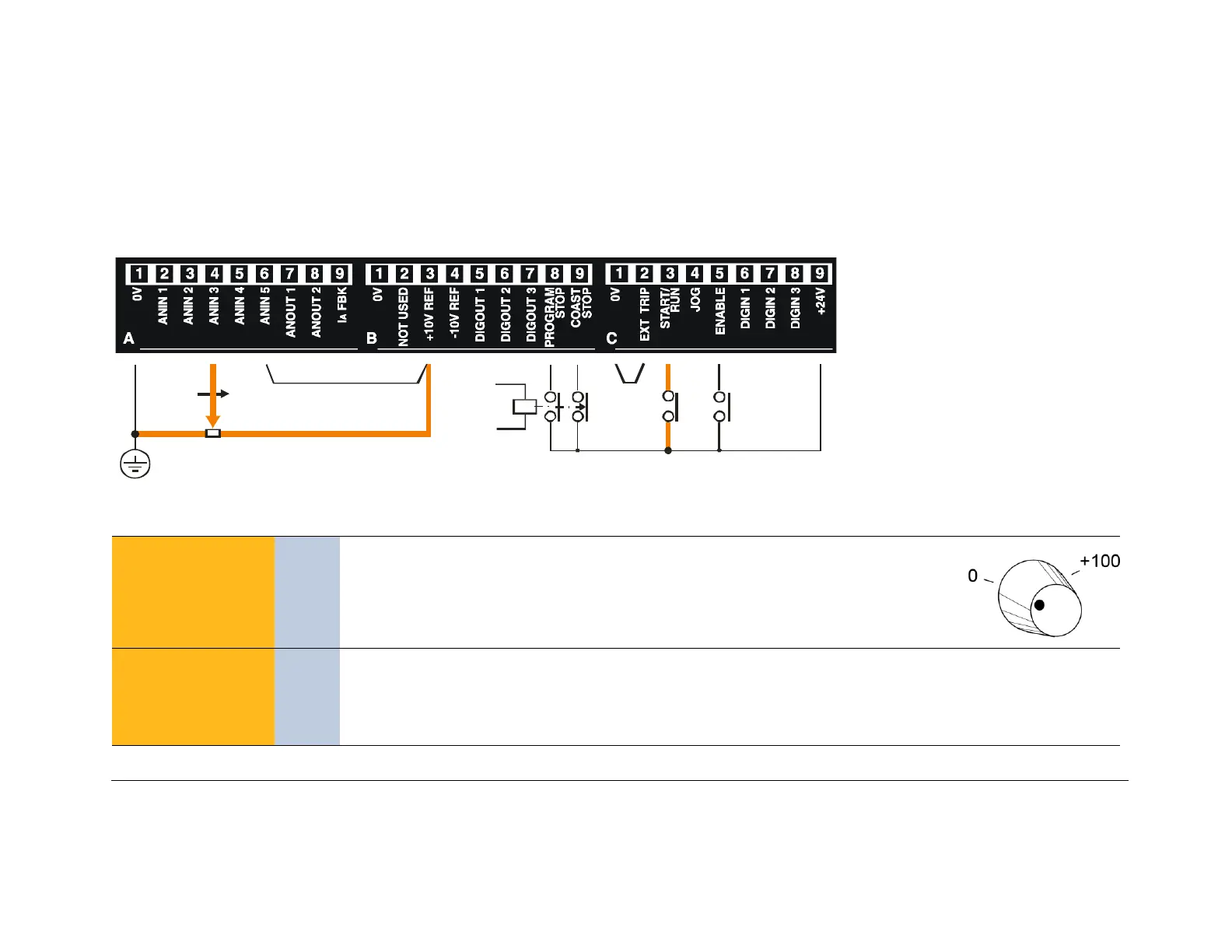

Converting to Remote Control
ISOLATE THE DRIVE using branch circuit protection or circuit breaker (8).
This description assumes you have completed the "Drive Set-Up in Local Control".
R
A
M
P
E
D
S
P
E
E
D
S
E
T
P
O
I
N
T
MAIN CURRENT LIMIT
CLEAN
EARTH
10K
SETPOINT
RAMP INPUT
EMERGENCY
STOP RELAY
Speed Demand
(Uni-directional)
A1
A4
B3
The 10K potentiometer adjusts the speed setpoint:
Zero speed = Terminal A1, 0V input
Maximum forward speed (+100%) = Terminal B3, 10V input
Start/Run
C3
C9
When C3 (START/RUN) is connected to C9 the drive can run provided that:
B8 & B9 are TRUE (+24V) C5 "Enable" is ON (+24V)
MAIN CURR. LIMIT  0 Speed Setpoint  0
1
Re-instate branch circuit protection or circuit breaker (8).
