Prop
.
Directional Control
V
alv
e
Series D*FB / D*1FB
Operation Manual
17
Parker Hannifin Corporation
Parker Hannifin Corporation
D_FB-D_1FB_10-12 5715-669 UK.indd 25.06.19

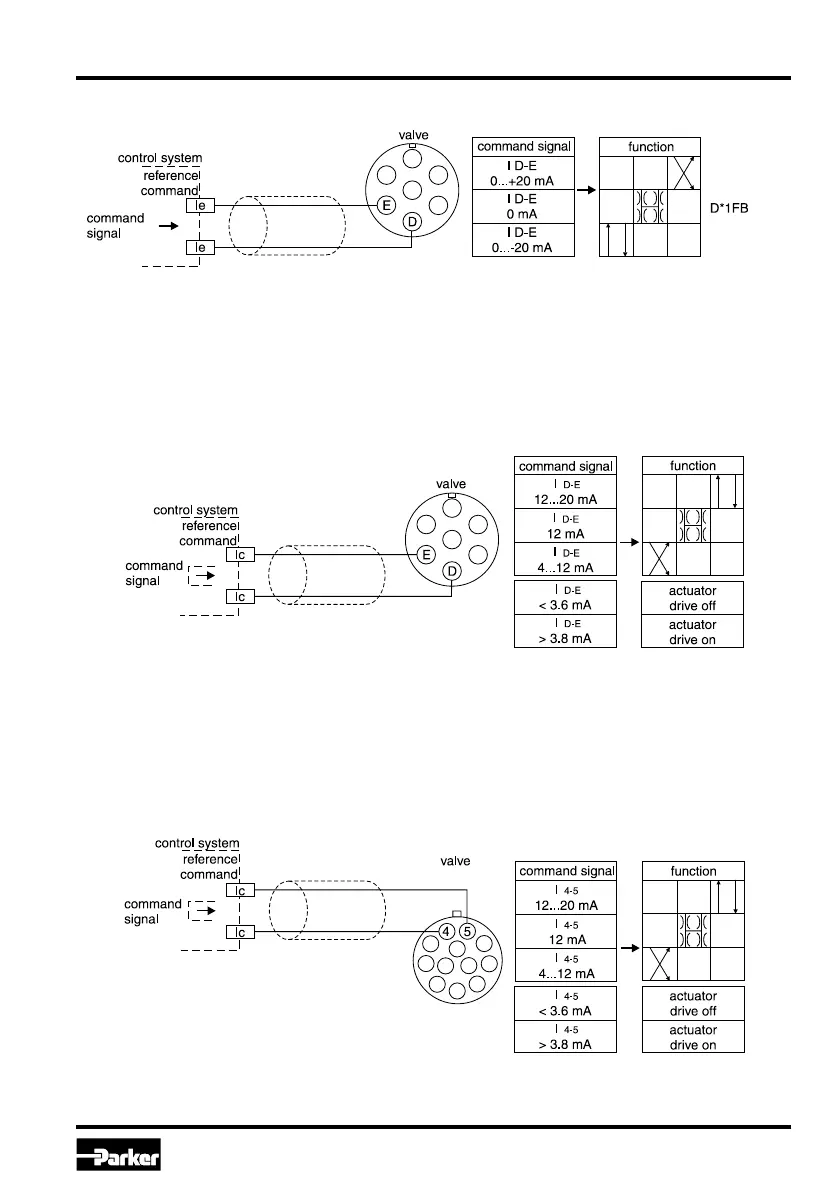

Wiring diagram of current command input +20...0...-20 mA Code G0 (6+PE)
Wiring diagram of current command input 4...12...20 mA
Code S0 (6 + PE)
Wiring diagram of current command input 4...12...20 mA
Code
W5 (11 + PE)
16
18
